Detailed Specifications

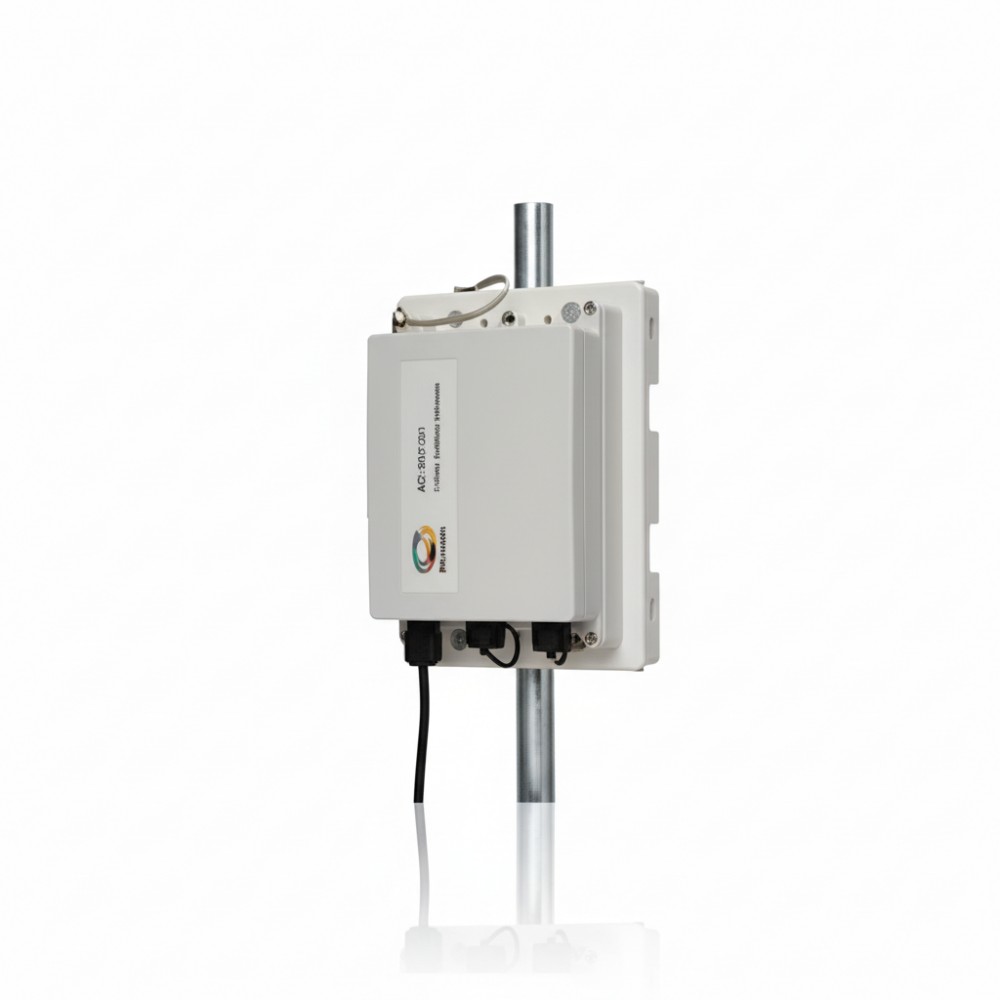

HPE JW630A - 30 W Outdoor PoE+ Midspan Injector (Gigabit)
Overview
The HPE JW630A is a ruggedised PoE+ midspan injector designed for outdoor network deployments where devices such as wireless access points, surveillance cameras or signage units require Power over Ethernet but the upstream switch either doesn't support PoE or the run is outdoors. It supports IEEE 802.3at (PoE+), supplies up to 30 W of power over a single Ethernet cable while maintaining a Gigabit data link (10/100/1000 Mbps). With a DC input range (12-24V) and built-in outdoor-grade surge protection it solves the real-world needs of powering remote network endpoints in challenging installation environments. It's a go-to accessory in campus-WiFi, outdoor security and retail yard installs.
Key Features
Supplies 30 W of PoE+ power under the IEEE 802.3at standard × sufficient for high-performance outdoor access points or cameras requiring more than basic PoE.
Provides 10/100/1000 Mbps data port support, ensuring full Gigabit bandwidth between switch and endpoint while injecting power
Input voltage flexibility: operates from 12-24 V DC input, making it suitable for DC power feed environments (e.g., telco shelters, solar/battery sites).
Outdoor-rated design with surge protection built-in × addresses the deployment headache of powering remote devices in exposed conditions (pole mount, rooftop, exterior wall).
Technical Specifications
| Specification | Detail |
|---|
| Brand | HPE (Aruba Networking) |
| Part Number | JW630A |
| Product Type | Outdoor PoE+ Midspan Injector (1-Port Gigabit) |
| Key Specification | PoE Standard: IEEE 802.3at |
| Key Specification | Maximum Output Power: 30 W |
| Key Specification | Data Port: 1 × RJ-45 10/100/1000 Mbps |
| Management | Plug-and-play (no user‐configurable interface) |
| Power Requirements | DC input: 12-24 V DC |
| Dimensions & Weight | Approx. 5″ × 2″ × 1.5″ (per distributor spec) |
