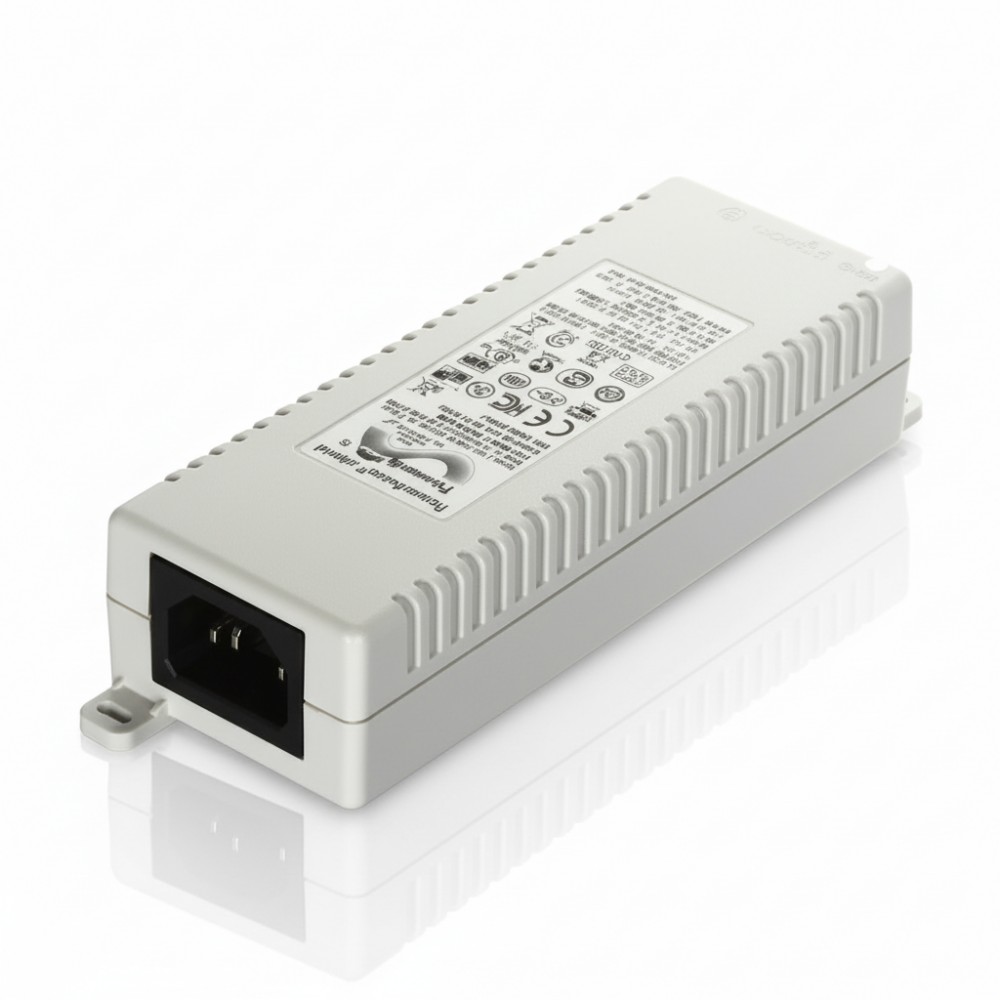

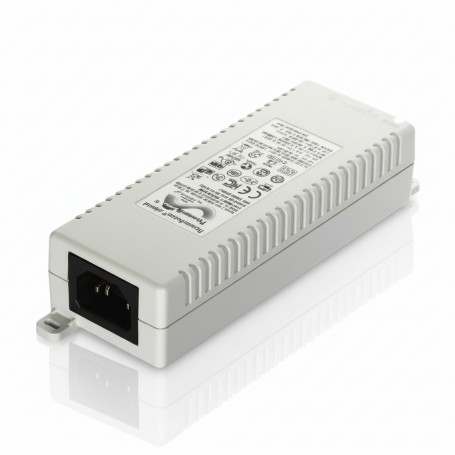

HPE JW627A Aruba PD-3501G-AC - PoE Injector - 15.4 Watt Power Supply

New

HP

×




  • New

Detailed Specifications

HPE JW627A

Aruba JW627A PD-3501G-AC PoE Injector – 1-Port Gigabit Midspan, 15.4W IEEE 802.3af

The HPE Aruba JW627A PD-3501G-AC is a compact, high-efficiency PoE injector designed to deliver both power and data to Aruba wireless access points and other IEEE 802.3af-compliant devices. Ideal for remote or ceiling-mounted deployments, it simplifies installations by eliminating the need for local power outlets.

Features

Perfect for enterprise, branch, and small business environments, the PD-3501G-AC delivers up to 15.4W of power through standard Cat5e/6 Ethernet cables while supporting Gigabit Ethernet data speeds. Its midspan design allows it to sit between your network switch and PoE device, injecting power without compromising throughput.

Advanced Options

With plug-and-play simplicity and universal device compatibility, this PoE injector is ideal for deploying Aruba access points, VoIP phones, IP cameras, or any 802.3af-powered device. Safety features like overload, under-voltage, and short-circuit protection provide reliable operation and peace of mind.

Product Key Features

    • Delivers up to 15.4W PoE power per IEEE 802.3af standard

    • 1× Gigabit Ethernet port for high-speed connectivity

    • Data and power over a single Ethernet cable

    • Plug-and-play design—no configuration needed

    • Built-in surge and short-circuit protection

    • Compatible with Aruba APs and other 802.3af devices

Reliability & Performance

Built with enterprise-grade components, the JW627A PoE injector ensures stable, uninterrupted power delivery in a wide range of operating environments. It features auto-sensing PoE negotiation to protect connected devices, and its fanless, compact design supports quiet, maintenance-free operation in office or IT closet installations.

Key Features :

  • Midspan PoE injector with 15.4W output

  • Supports IEEE 802.3af-compliant devices

  • 10/100/1000 Mbps Gigabit Ethernet data rate

  • Power and data over a single Cat5e/6 cable

  • Plug-and-play—no setup required

  • Safety features: over-voltage, short-circuit, over-temperature

SpecificationDetails
Model Number JW627A
Product Name Aruba PD-3501G-AC
Product Type PoE Injector (Midspan)
PoE Standard IEEE 802.3af
Power Output 15.4 W
Data Rate 10/100/1000 Mbps (Gigabit Ethernet)
Ports 1× PoE Out, 1× Data In
Input Voltage 100–240 V AC, 50–60 Hz
Output Voltage 48 V DC
Mounting Type Desktop or Wall Mountable
Dimensions 5.5 × 2.5 × 1.4 in (140 × 64 × 35 mm)
Weight ~0.55 lb (250 g)
Protection Features OVP, OCP, SCP, OTP
