Detailed Specifications

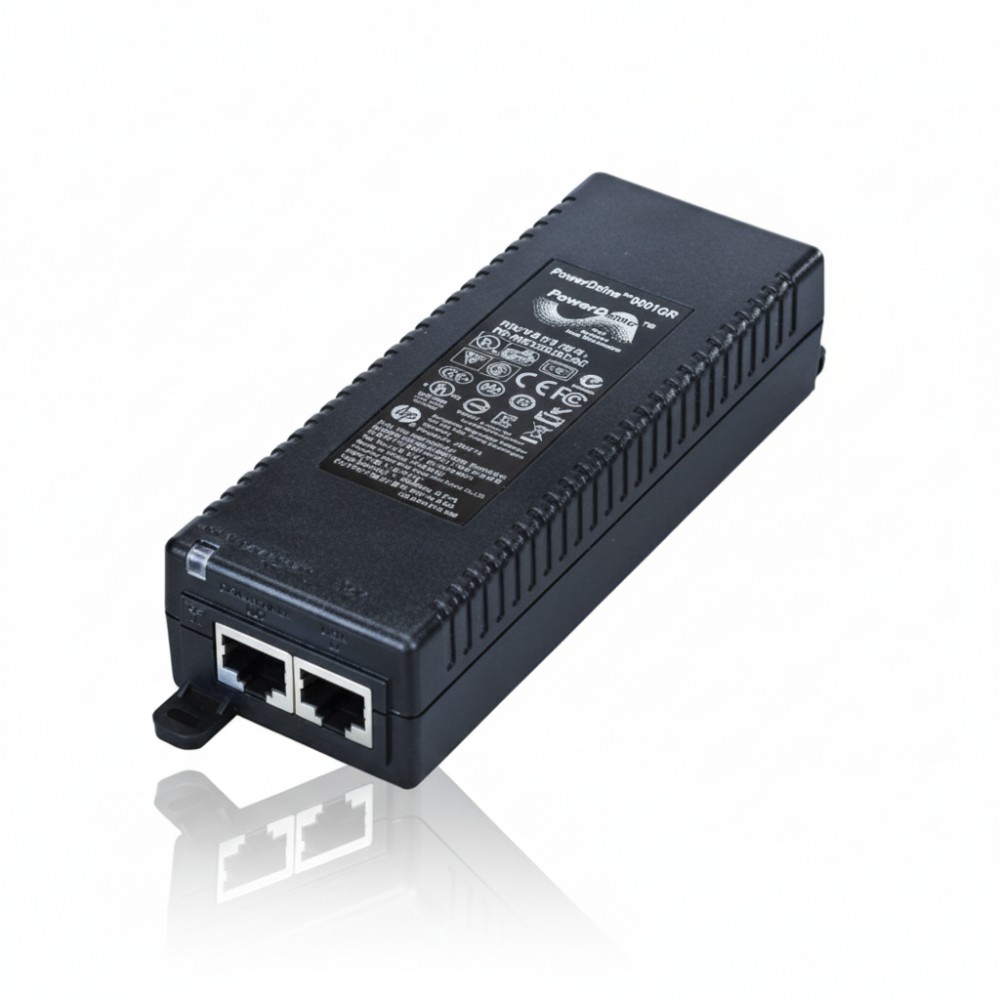

HPE R6P67A - 1-Port Smart Rate 802.3at 30 W Midspan Injector
Overview
The HPE R6P67A is a single-port PoE+ (IEEE 802.3at) midspan injector designed to deliver both data and power over one Ethernet cable to a powered device, such as a wireless access point or IP camera. It removes the need to run a separate AC power line to the device, simplifying deployment in any network environment. In practice you'd use it in a branch office, campus edge or retrofit scenario where non-PoE switches are present and you need to power one device reliably. It supports Gigabit data (10/100/1000 Mbps) along with up to 30 W of power output, making it suitable for higher-power devices like WiFi 6 access points or PTZ cameras. It integrates seamlessly into a network alongside PoE switches or midspans and follows Aruba/HPE's Smart Rate midspan design guidelines.
Key Features
Single-port injector delivering up to 30 W of PoE+ power under IEEE 802.3at standard × sufficient to power many enterprise access points and devices.
Smart-Rate capability ensures full Gigabit link (10/100/1000 Mbps) on the data path, so the powered device gets full bandwidth while also being powered.
Simple plug-in design: connects between standard switch and powered device, ideal for retrofits or point of power where the switch lacks PoE.
Broad compatibility with Aruba/HPE access points and other PoE+ devices following standard 802.3at; supports indoor use in wiring closets or near ceiling access point installations.
Compact form-factor, no additional network configuration required×just insert into line, connect device, power and go.
Technical Specifications
| Specification | Detail |
|---|
| Brand | HPE (Aruba Networking) |
| Part Number | R6P67A |
| Product Type | 1-Port Smart-Rate PoE+ Midspan Injector |
| Key Specification | PoE Standard: IEEE 802.3at (PoE+) |
| Key Specification | Maximum Output Power: 30 W |
| Key Specification | Data Port: 1 × 10/100/1000 Mbps RJ-45 |
| Management | Plug-and-play, no special management interface |
| Power Requirements | AC input: 100-240 V, 50/60 Hz (region specific) |
| Dimensions & Weight | (various sources) ~0.27 kg, form-factor ~85×135×25 mm* |
| Warranty | 1-year (based on distributor spec) |
