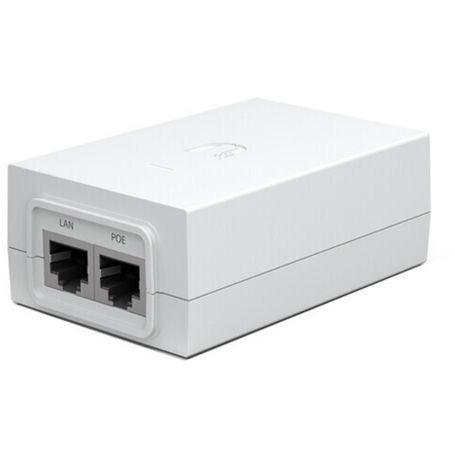

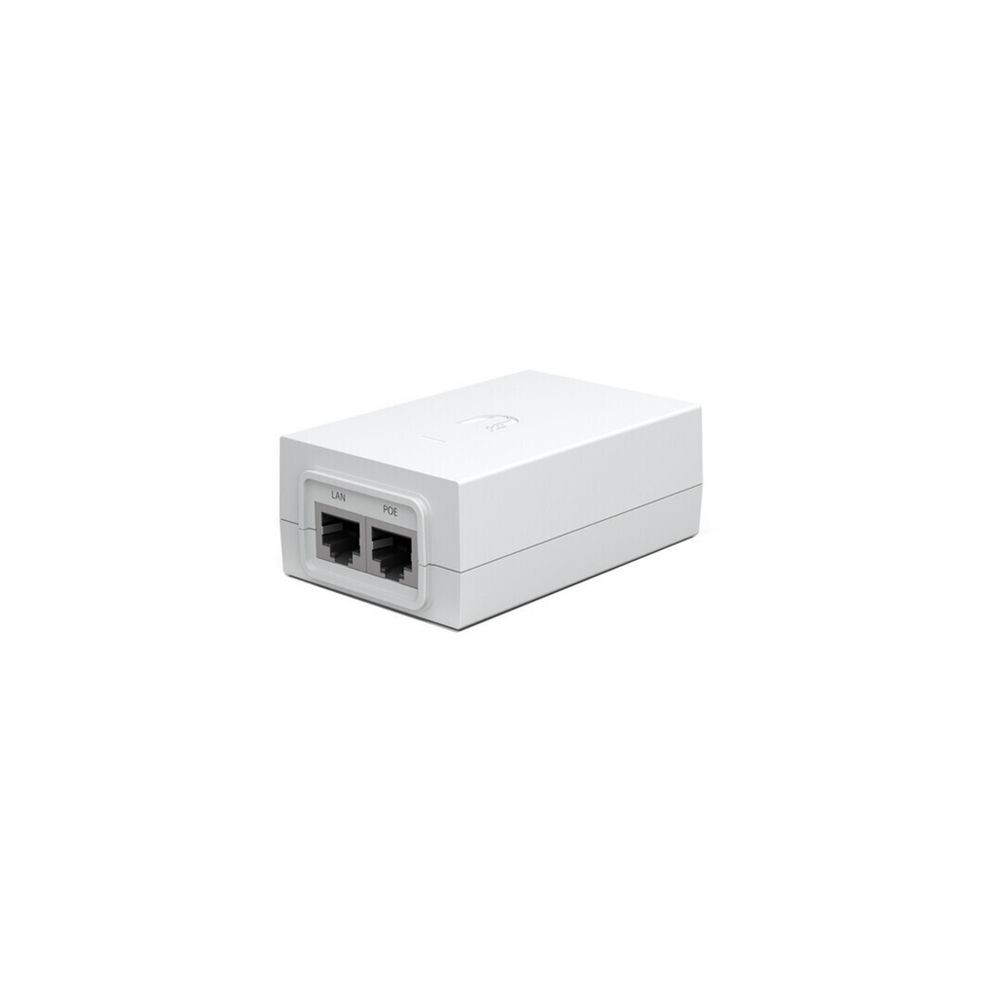

Ubiquiti POE-24-30W-G-WH 24V 30W Gigabit PoE Injector with 2-Pair Passive PoE
Overview
The Ubiquiti POE-24-30W-G-WH is a 24V passive PoE injector designed to provide power and Gigabit Ethernet connectivity to compatible Ubiquiti network devices. It accepts 100–240V AC input and provides 25V DC at 1.25A output according to Ubiquiti's current product specification.
Connectivity and Power
The injector provides a Gigabit LAN port and delivers power over two Ethernet pairs using pins 4 and 5 positive and pins 7 and 8 negative. The AC input uses an IEC-320 C6 connector. The unit does not provide 4-pair powering, remote reset capability, or a reset button.
Protection
The POE-24-30W-G-WH incorporates difference-mode and common-mode surge protection, 11V data and 60V power clamping protection, and supports a maximum power surge discharge of 1500A for an 8/20 μs waveform. Data protection includes a peak pulse current rating of 36A for a 10/1000 μs waveform.
Key Features
- 25V DC output at 1.25A
- Gigabit LAN port
- 2-pair passive PoE using pins 4, 5 (+) and 7, 8 (-)
- 100–240V AC input at 50/60Hz
- Difference-mode and common-mode surge protection
Applications
The injector can be used as an alternative power source for compatible Ubiquiti devices when PoE switch power is unavailable. Ubiquiti identifies PoE adapters as an option for powering devices directly or offloading devices when a switch's available PoE capacity has been exceeded.
DC Supplies Product Note
This is a passive PoE adapter that continuously outputs its specified voltage without PoE negotiation. Verify that the connected device specifically supports compatible 24V passive PoE before deployment; Ubiquiti cautions that PoE adapter output ports should not be connected to computers, printers, or other non-compatible equipment.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | POE-24-30W-G-WH |
| Product Type | 24V Passive PoE Injector |
| Output Voltage | 25V DC @ 1.25A |
| Gigabit LAN Port | Yes |
| Powering | 2-pair |
| Power Pins | Pins 4, 5 (+) and 7, 8 (-) |
| 4-Pair Powering | No |
| Rated Input Voltage | 100–240V AC @ 50/60Hz |
| Input Current | 0.6A @ 120V AC; 0.4A @ 240V AC |
| Efficiency | 83%+ |
| Output Ripple | 1% maximum |
| Switching Frequency | 65kHz |
| AC Connector | IEC-320 C6 |
| Data IN / PoE | Shielded RJ45 socket |
| Surge Protection | Difference and common mode |
| Maximum Surge Discharge | 1500A (8/20 μs) power |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Operating Humidity | 35 to 95% noncondensing |
| Dimensions | 94 × 60 × 33 mm (3.70 × 2.36 × 1.30") |
| Weight | 156 g (5.5 oz) |
| Certifications | CE, FCC, IC, UL |
| NDAA Compliant | Yes |
Frequently Asked Questions
What voltage does the POE-24-30W-G-WH provide?
Ubiquiti's current product specification lists an output of 25V DC at 1.25A.
Does this injector provide Gigabit Ethernet?
Yes. It has a Gigabit LAN port.
How does the injector deliver power?
It uses 2-pair passive powering through pins 4, 5 positive and pins 7, 8 negative.
Does it support 4-pair powering?
No. Ubiquiti specifies 2-pair powering and no 4-pair powering.
What AC input does it support?
It accepts 100–240V AC at 50/60Hz.
