Overview :

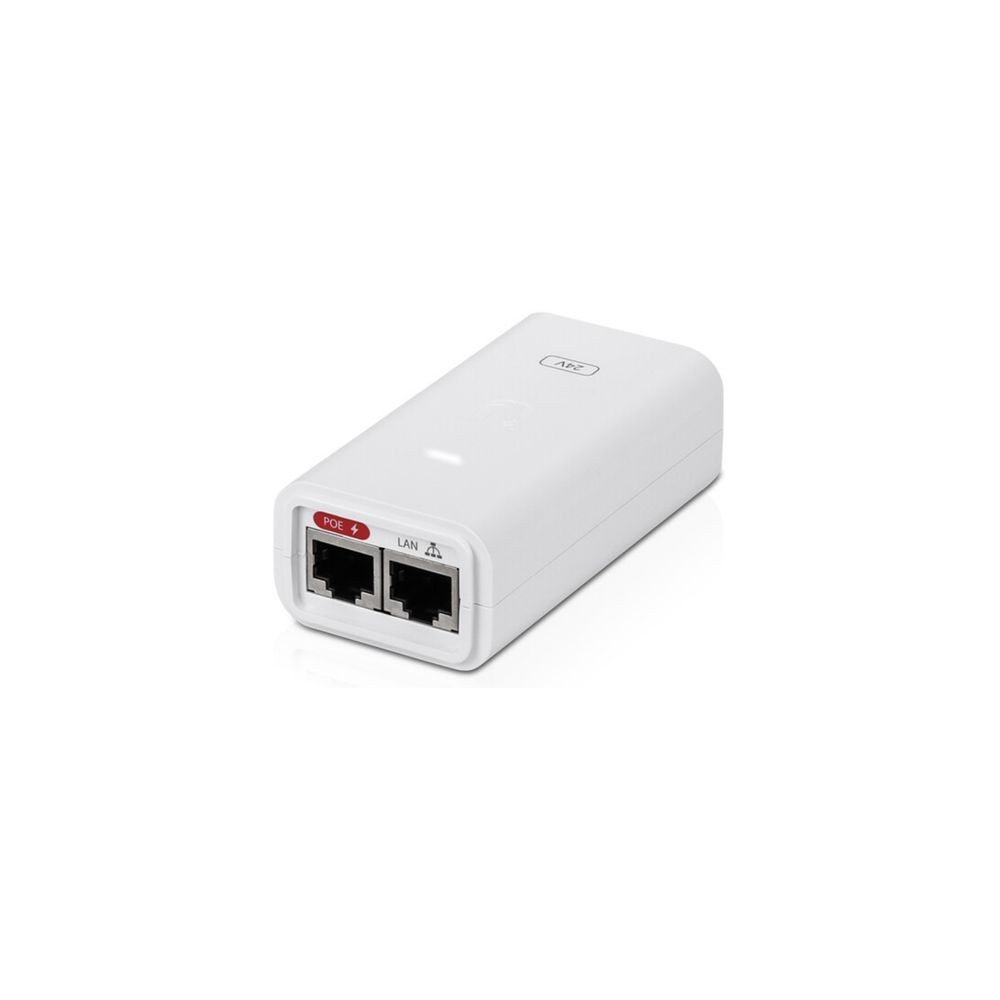

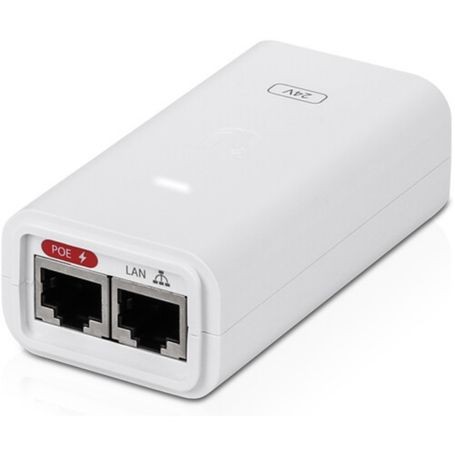

The Ubiquiti POE-24-12W-5P is a five-pack of 24V DC passive PoE injectors designed to provide power and Ethernet connectivity to compatible Ubiquiti devices. Each injector delivers 24V DC at 0.5A for a maximum 12W output and includes a Gigabit Ethernet LAN interface.
Power and Ethernet
Each injector accepts 100–240V AC at 50/60Hz and supplies 24V DC at 0.5A. The unit provides a shielded RJ45 data/PoE interface and a Gigabit LAN port, allowing Ethernet data and passive PoE power to be delivered through the network connection.
Protection and Control
The POE-24-12W provides surge and clamping protection, including maximum surge discharge capability of 1500A for the power circuit and peak pulse current protection for data. A physical reset button and remote reset capability are also provided. Ubiquiti specifies 2-pair powering using pins 4 and 5 as positive and pins 7 and 8 as negative.
Deployment and Compatibility
The five-pack is intended for installations requiring multiple individual PoE injectors. Because this is a passive 24V PoE adapter, the powered Ethernet output should only be connected to equipment designed to accept the corresponding passive PoE voltage. Ubiquiti specifically cautions that its PoE adapters continuously output voltage and should not be connected to devices that do not support the adapter's output requirements.
Key Features
- Five 24V DC passive PoE injectors
- 12W maximum output per injector
- Gigabit Ethernet LAN connectivity
- Remote reset and physical reset button
- Surge and clamping protection with shielded RJ45 interface
Applications
The POE-24-12W-5P can be used where multiple compatible Ubiquiti devices require separate 24V passive PoE power sources, including network access points, wireless networking equipment, and other compatible low-power Ethernet devices.
DC Supplies Product Note
The POE-24-12W-5P is supplied as a five-pack, making it useful for deployments that require several individual passive PoE power sources rather than a centralized PoE switch.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | POE-24-12W-5P |
|---|
| Product Type | Passive PoE Injector, 5-Pack |
|---|
| Quantity | 5 Injectors |
|---|
| Output Voltage | 24V DC |
|---|
| Output Current | 0.5A |
|---|
| Output Power | 12W per injector |
|---|
| Input Voltage | 100–240V AC |
|---|
| Input Frequency | 50/60Hz |
|---|
| Ethernet Interface | Gigabit Ethernet RJ45 |
|---|
| PoE Type | Passive PoE |
|---|
| Powering | 2-pair, pins 4/5 positive and 7/8 negative |
|---|
| LAN Port | Gigabit |
|---|
| RJ45 | Shielded |
|---|
| Remote Reset | Yes |
|---|
| Reset Button | Yes |
|---|
| Surge Protection | Yes |
|---|
| Maximum Surge Discharge | 1500A, 8/20 μs power |
|---|
| Peak Pulse Current | 36A, 10/1000 μs data |
|---|
| Operating Temperature | 0–40°C |
|---|
| Storage Temperature | -30–70°C |
|---|
| Operating Humidity | 35–95% noncondensing |
|---|
| AC Connector | IEC-320 C6 |
|---|
| Certifications | CE, FCC, IC, UL |
|---|
| NDAA Compliant | Yes |
|---|
FAQs
What is the output of the POE-24-12W-5P?
Each injector provides 24V DC at 0.5A, with a maximum output of 12W.
How many PoE injectors are included?
The POE-24-12W-5P includes five individual PoE injectors and five AC power cords.
Does the injector support Gigabit Ethernet?
Yes. The POE-24-12W-5P provides a Gigabit Ethernet LAN port and shielded RJ45 connectivity.
Is this standard IEEE 802.3af/at PoE?
No. This injector provides passive 24V PoE and should only be connected to compatible equipment designed for this power method.
Does it provide remote reset?
Yes. Each injector provides remote reset capability as well as a physical reset button.
