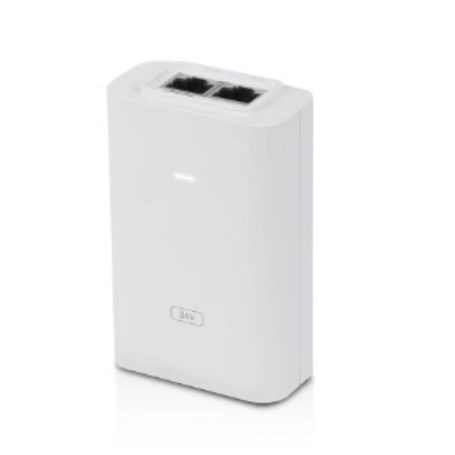

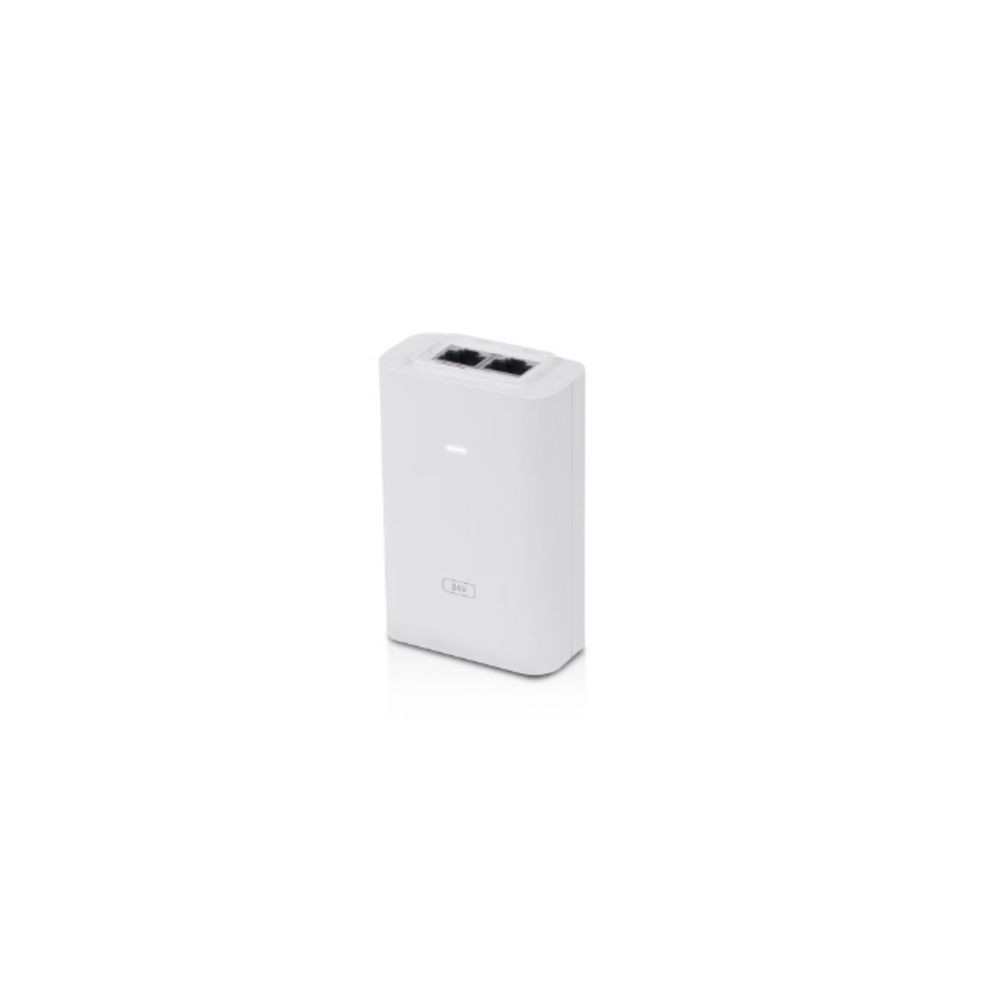

Ubiquiti POE-24-24W-WH 24V 24W PoE Adapter White
Overview
The Ubiquiti POE-24-24W-WH is a 24V DC passive PoE adapter designed to deliver power and network connectivity to compatible devices over Ethernet. It provides up to 24W of output power at 24V DC and uses 2-pair powering.
The adapter has a shielded RJ45 Data In / PoE interface and is equipped with surge and clamping protection. The white enclosure makes this version visually distinct from the black POE-24-24W model.
Power Specifications
The adapter accepts 100–240V AC at 50/60Hz and provides a 24V DC output at 1.0A. Its rated output power is 24W.
Power is delivered using pins 4 and 5 as positive and pins 7 and 8 as negative. The adapter is designed for compatible passive 24V PoE equipment and should not be substituted for higher-voltage 48V PoE adapters.
Network Interface
The POE-24-24W-WH includes an RJ45 shielded Data In / PoE socket. This exact model does not provide a Gigabit LAN port; Ubiquiti separately identifies the POE-24-24W-G as the Gigabit version.
Protection Features
The adapter provides difference-mode and common-mode surge protection together with clamping protection. Ubiquiti specifies 60V power clamping, 11V data clamping, maximum surge discharge of 1500A for power, and a peak pulse current of 36A for data.
Remote reset capability and a physical reset button are also provided.
Installation
The POE-24-24W-WH is an inline PoE adapter. The network connection is connected through the shielded RJ45 interface, while the adapter supplies 24V DC PoE power to a compatible device through the Ethernet connection.
Verify that the connected equipment specifically supports 24V passive PoE before applying power.
Key Features
- 24V DC output at 1.0A
- 24W maximum output power
- 100–240V AC input
- Surge and clamping protection
- Remote reset capability with reset button
Applications
- Powering compatible 24V passive PoE devices
- Replacement for compatible Ubiquiti 24V PoE adapters
- Network installations requiring inline passive PoE power
- Installations requiring surge and clamping protection
DC Supplies Product Note
The POE-24-24W-WH is a 24V passive PoE adapter and is not the Gigabit POE-24-24W-G variant. Confirm the required PoE voltage and Ethernet speed before selecting the adapter.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | POE-24-24W-WH |
|---|
| Product Type | PoE Adapter |
|---|
| Output Voltage | 24V DC |
|---|
| Output Current | 1.0A |
|---|
| Total Output Power | 24W |
|---|
| Input Voltage | 100–240V AC |
|---|
| Input Frequency | 50/60Hz |
|---|
| Input Current | 0.6A at 120V AC; 0.4A at 240V AC |
|---|
| Powering Method | 2-pair |
|---|
| Power Pins | Pins 4, 5 (+); Pins 7, 8 (-) |
|---|
| LAN Activity Indicator | No |
|---|
| Gigabit LAN Port | No |
|---|
| Remote Reset Capability | Yes |
|---|
| Reset Button | Yes |
|---|
| AC Connector | IEC-320 C6 |
|---|
| Data In / PoE | Shielded RJ45 socket |
|---|
| Surge Protection | Difference and common mode |
|---|
| Clamping Protection | 11V data, 60V power |
|---|
| Maximum Surge Discharge | 1500A (8/20 µs) power |
|---|
| Peak Pulse Current | 36A (10/1000 µs) data |
|---|
| Output Ripple | 1% maximum |
|---|
| Efficiency | 80%+ |
|---|
| Switching Frequency | 65 kHz |
|---|
| Line Regulation | ≤ 3% |
|---|
| Load Regulation | ≤ 5% |
|---|
| Operating Temperature | 0°C to 40°C |
|---|
| Storage Temperature | -30°C to 70°C |
|---|
| Operating Humidity | 35–95% noncondensing |
|---|
| Dimensions | 88 × 57 × 33 mm |
|---|
| Weight | 135 g |
|---|
| Color | White |
|---|
| Certifications | CE, FCC, IC, UL |
|---|
| NDAA Compliant | Yes |
|---|
FAQs
What is the Ubiquiti POE-24-24W-WH?
It is a 24V DC passive PoE adapter with a maximum output power of 24W.
What is the output voltage and current?
The adapter provides 24V DC at 1.0A.
Does the POE-24-24W-WH have a Gigabit LAN port?
No. The exact POE-24-24W-WH model does not have a Gigabit LAN port. Ubiquiti identifies the POE-24-24W-G as the Gigabit version.
What AC input does it support?
It supports 100–240V AC at 50/60Hz.
Does it support remote reset?
Yes. The adapter provides remote reset capability and also has a physical reset button.
Is the POE-24-24W-WH suitable for any PoE device?
No. It provides 24V passive PoE, so the connected device must specifically support compatible 24V passive PoE.
