Overview

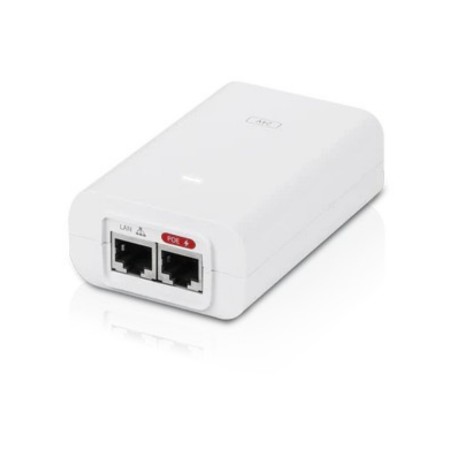

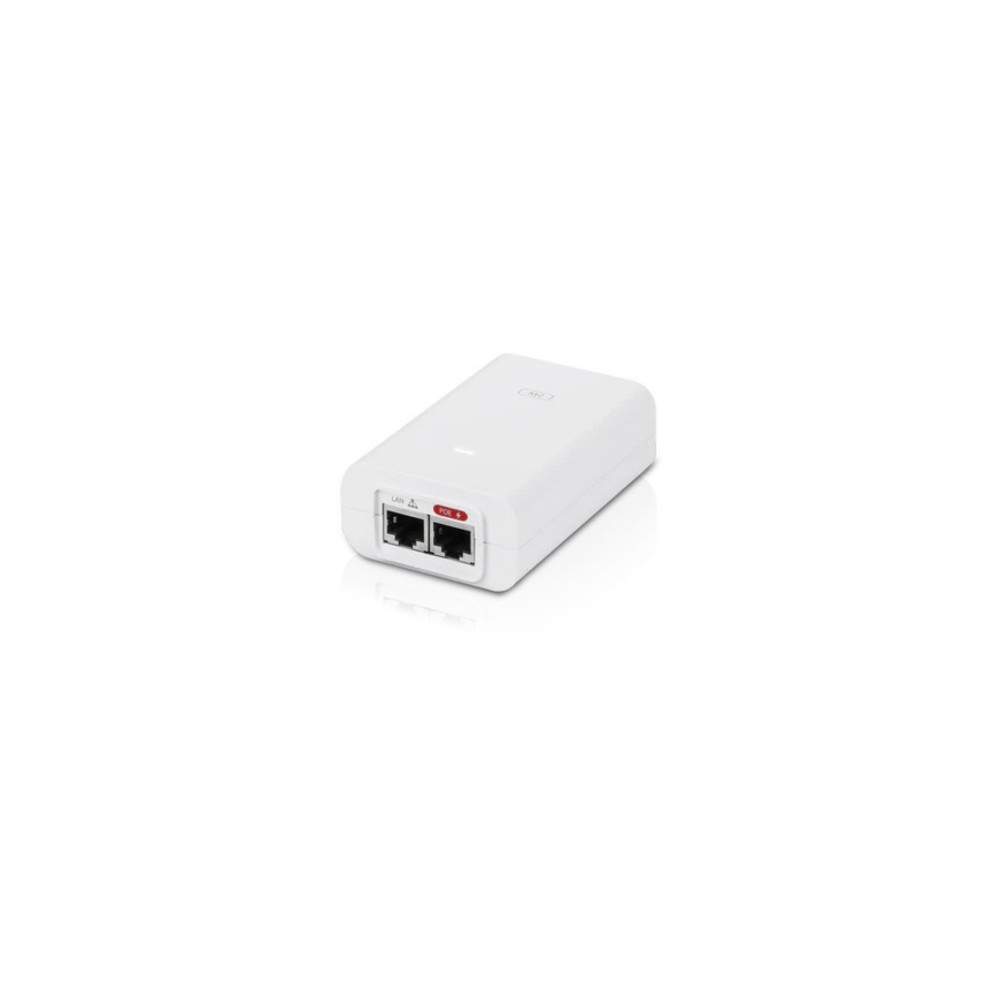

The Ubiquiti POE-24-24W-5P is a five-pack of 24V passive PoE injectors designed to supply compatible network devices with 24V DC power over Ethernet. Each injector provides up to 24W of output power and includes a Gigabit-capable LAN port.
Power Delivery
Each injector accepts 100–240V AC input and delivers 24V DC at up to 1A through the PoE output. Power is supplied using two Ethernet pairs, with pins 4 and 5 positive and pins 7 and 8 negative. The injector does not use 4-pair powering.
Gigabit Connectivity and Protection
The POE-24-24W-5P provides a shielded RJ45 LAN input with Gigabit Ethernet support. Protection features include difference-mode and common-mode surge protection, 11V data clamping, 60V power clamping, and protection against high-current surge and pulse events.
Key Features
- Five 24V 24W passive PoE injectors
- 24V DC output at up to 1A per injector
- Gigabit Ethernet LAN port
- 2-pair passive PoE using pins 4/5 and 7/8
- Surge and clamping protection with grounded AC cables
Applications
The POE-24-24W-5P is intended for installations requiring multiple 24V passive PoE injectors for compatible Ubiquiti network equipment. The five-unit pack is suited to multi-device deployments and replacement requirements.
DC Supplies Product Note
The -5P suffix identifies this product as a five-pack of the POE-24-24W Gigabit PoE injector. It should not be confused with the current POE-24-24W non-G model, which Ubiquiti lists separately and does not provide a Gigabit LAN port.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | POE-24-24W-5P |
|---|
| Product Type | Gigabit Passive PoE Injector 5-Pack |
|---|
| Pack Quantity | 5 |
|---|
| Output Voltage | 24V DC |
|---|
| Output Current | 1.0A |
|---|
| Maximum Output Power | 24W per injector |
|---|
| LAN Port | Gigabit Ethernet |
|---|
| PoE Type | Passive PoE |
|---|
| 2-Pair Powering | Pins 4, 5 (+); pins 7, 8 (-) |
|---|
| 4-Pair Powering | Not supported |
|---|
| AC Input | 100–240V AC, 50/60Hz |
|---|
| AC Connector | IEC-320 C6 |
|---|
| Data IN / PoE | Shielded RJ45 socket |
|---|
| Surge Protection | Difference mode and common mode |
|---|
| Clamping Protection | 11V data, 60V power |
|---|
| Maximum Surge Discharge | 1500A (8/20 μs) power |
|---|
| Peak Pulse Current | 36A (10/1000 μs) data |
|---|
| Operating Temperature | 0 to 40°C |
|---|
| Operating Humidity | 5 to 95% noncondensing |
|---|
| Dimensions per Injector | 88 × 57 × 33 mm |
|---|
| Weight per Injector | 135 g |
|---|
| Certifications | CE, FCC, IC, UL |
|---|
FAQs
How many PoE injectors are included?
The POE-24-24W-5P contains five individual 24V 24W Gigabit PoE injectors.
What voltage and power does each injector provide?
Each injector provides 24V DC at up to 1A, for a maximum output of 24W.
Does the POE-24-24W-5P support Gigabit Ethernet?
Yes. This specific -5P model is the Gigabit version and includes a Gigabit-capable LAN port.
Is this standard IEEE 802.3 PoE?
No. The injector provides 24V passive PoE rather than an IEEE 802.3af/at PoE negotiation standard.
What Ethernet pairs carry power?
Power is supplied over pins 4 and 5 as positive and pins 7 and 8 as negative. Four-pair powering is not supported.
