Detailed Specifications

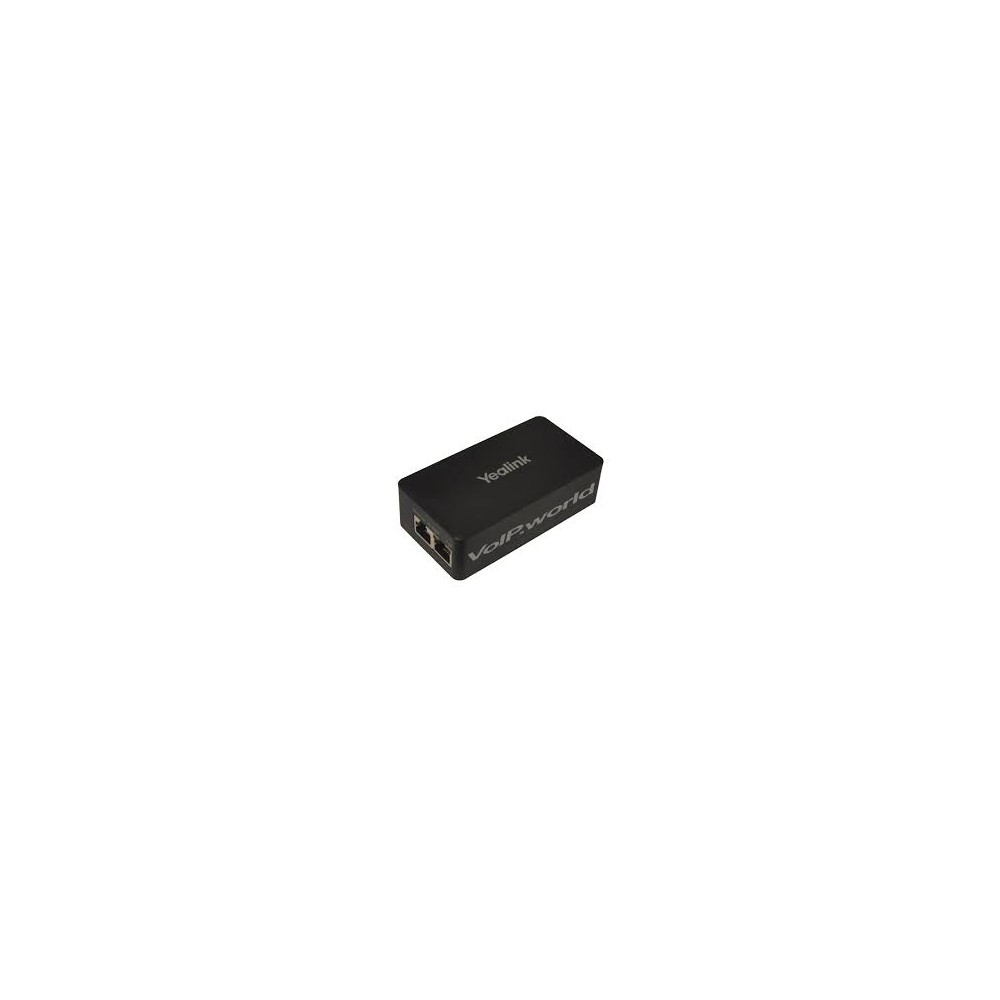

Yealink YLPOE30 - Gigabit PoE Injector for IP Phones
Overview :
This is a Power over Ethernet (PoE) injector designed to supply both data and DC power over a single Ethernet cable for Yealink IP conference phones and other PoE-compatible devices. It solves the need for a clean desktop installation where a PoE switch is not available.
The device delivers up to 30W output (802.3at compliant) with Gigabit throughput on both data and PoE ports. It is intended for deployment with Yealink CP960, CP965, and other PoE-featured IP phones in conference rooms, executive offices, and open workspaces. The unit supports 10/100/1000 Mbps data rates and operates on 100-240V AC input. This product is not required for devices already connected to a PoE-enabled network switch.
Key Features :
IEEE 802.3af/at compliant with 30W max output
Gigabit Ethernet on data and PoE ports
Plug-and-play with no configuration required
LED indicators for power and PoE status
Includes 2m CAT5E Ethernet cable
Specifications :
| Specification | Value |
|---|
| Brand | Yealink |
| Part Number | YLPOE30 |
| Product Type | PoE Injector / PoE Adapter |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| Max Output Power | 30W |
| Output Voltage | 54V DC |
| Output Current | 0.56A |
| Input Voltage | 100-240V AC, 50/60Hz, 1.0A |
| Data Ports | 2x RJ45 (10/100/1000 Mbps) |
| Pin Definition | 1/2(+), 3/6(-) [Mid-Span] |
| LED Indicators | PWR (Power), PoE |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 10% to 90%, non-condensing |
| Certifications | CE, FCC, RoHS, UL, CCC |
| Compatibility | Yealink CP960, CP965, CP920, CP930W, PoE IP phones |
