Detailed Specifications

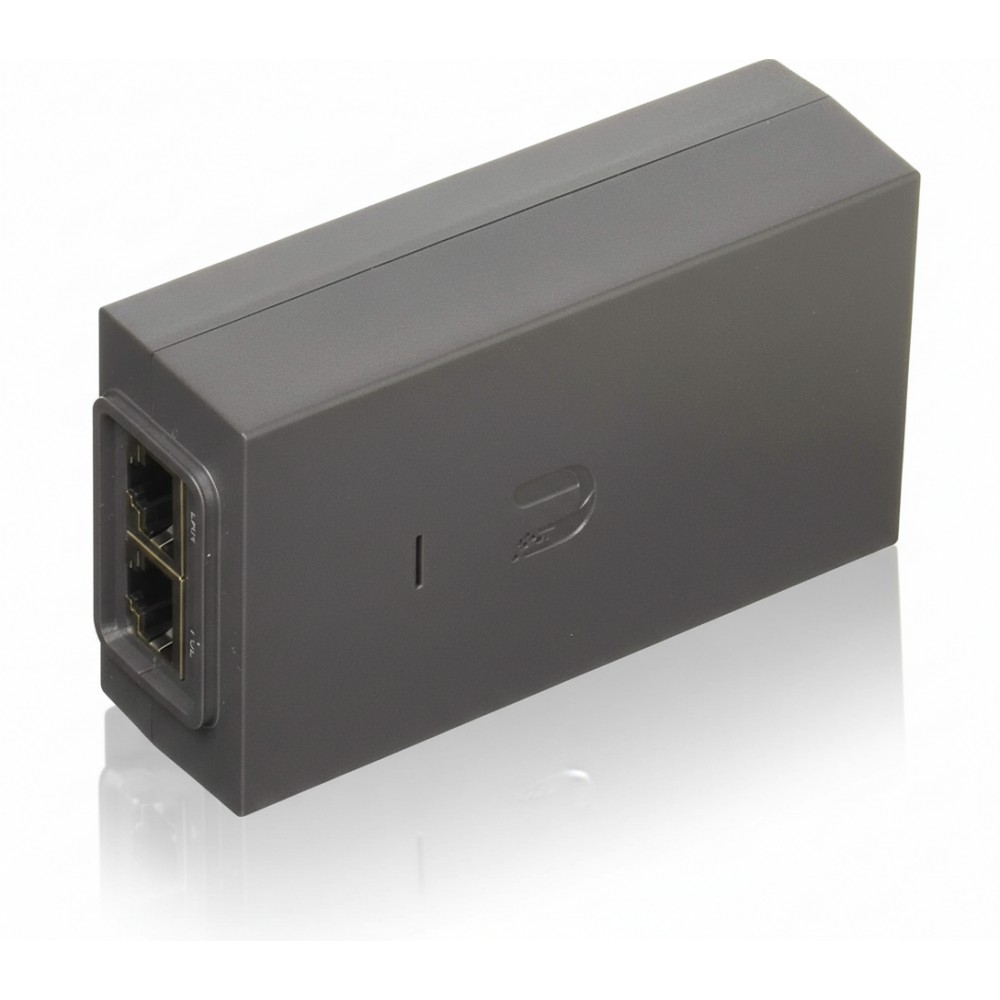

Ubiquiti POE-50-60W 50 V 60 W PoE Adapter
Overview
The Ubiquiti POE-50-60W is a Power over Ethernet adapter designed to inject 50 V DC at up to 60 W into a single Ethernet run for powering compatible Ubiquiti PoE devices. It provides a Gigabit LAN RJ45 interface that carries both data and high-power PoE output, allowing deployment without a PoE++ capable switch. The adapter accepts universal AC input and offers surge and ESD protection to help safeguard equipment. It is typically used to power devices such as airFiber, airMAX, UniFi, and other systems requiring higher voltage PoE in indoor or enclosed outdoor near-access environments.
Key Features
50 V DC PoE++ output at up to 60 W
Single Gigabit RJ45 data/PoE port
Universal 100-240 V AC input
Surge and ESD protection
Technical Specifications
| Specification | Value |
|---|
| Brand | Ubiquiti |
| Part Number | POE-50-60W |
| Product Type | PoE++ Gigabit Injector |
| Output Voltage | 50 V DC @ 1.2 A |
| Maximum Power Output | 60 W |
| Input Voltage | 100-240 V AC, 50/60 Hz |
| LAN Port | 1× Gigabit RJ45 (data + PoE) |
| Surge Protection | Difference and common mode |
| Clamping Protection | 11 V data, 60 V power |
| Inrush Current | <100 A peak @ 120 V AC |
| Switching Frequency | ~65 kHz |
| Operating Temp | 0 to 40 °C |
| Storage Temp | −30 to 70 °C |
| Weight | ~192 g |
| Dimensions (L×W×H) | ~101×60×33 mm |
