Detailed Specifications

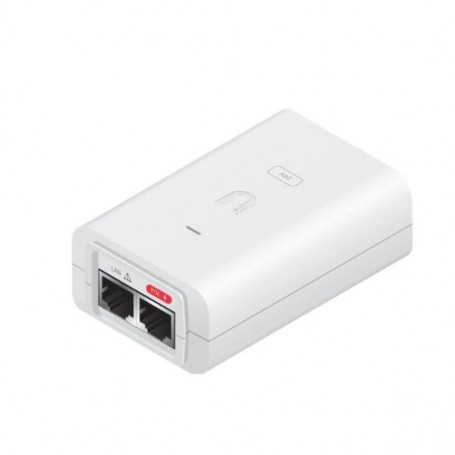

Ubiquiti POE-24-24W-G-WH 24 W Gigabit PoE Injector
Overview
The Ubiquiti POE-24-24W-G-WH is a passive PoE injector used to deliver 24 V DC power alongside Gigabit Ethernet data to 24 V-powered Ubiquiti devices such as airMAX radios and select legacy UniFi units. It provides up to 24 W (24 V × 1 A) of PoE output from a 100-240 VAC input with protections for surge and clamping events. The injector features a single Gigabit RJ45 data input and a PoE-out RJ45 port, with a remote reset button to reboot connected equipment. It is intended for indoor deployments where 24 V passive PoE compatibility is required and integrates simply into existing copper Ethernet cabling infrastructure.
Key Features
24 V DC PoE output at 1 A (24 W)
Gigabit Ethernet data support
Surge and clamping protection
Remote reset button
Technical Specifications
| Specification | Value |
|---|
| Brand | Ubiquiti |
| Part Number | POE-24-24W-G-WH |
| Product Type | Passive PoE Injector |
| Output Voltage | 24 V DC @ 1.0 A |
| Output Power | 24 W |
| Input Voltage | 100-240 VAC @ 50/60 Hz |
| Networking | 10/100/1000 Mbps Gigabit Ethernet |
| Ports | 1× RJ45 Data In, 1× RJ45 PoE Out |
| Surge Protection | Yes (differential & common mode) |
| Reset Function | Remote reset button |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | −30 °C to 70 °C |
| Weight | 166 g |
| Dimensions (HxWxD) | 35 mm × 62 mm × 96 mm |
