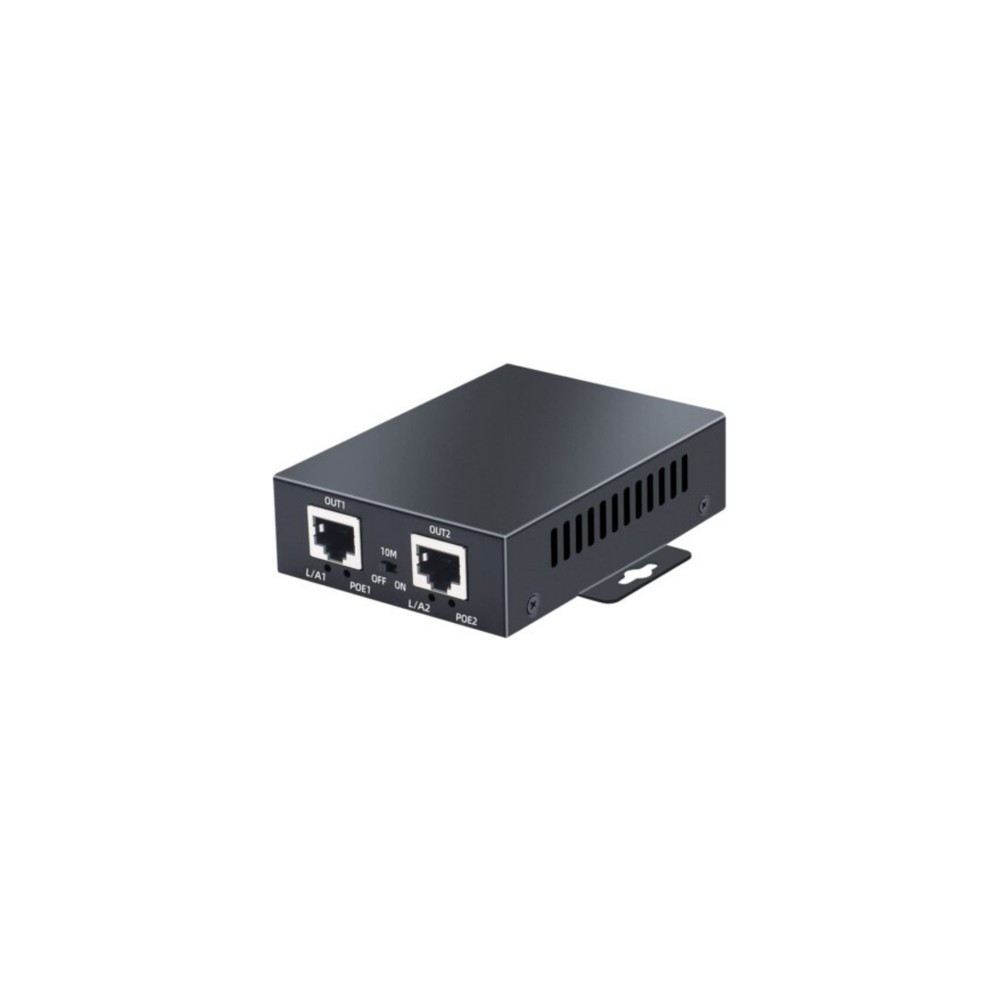

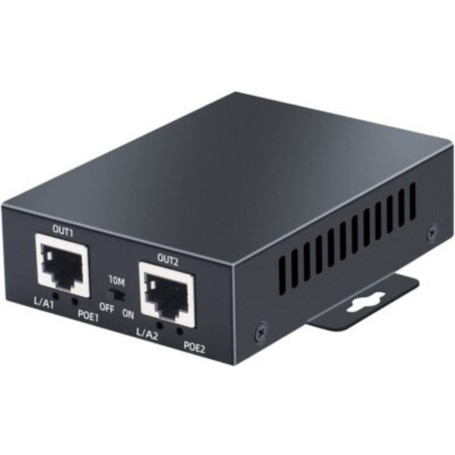

The StarTech POEEXT1G60W is a hardened industrial Gigabit PoE extender designed to overcome the 100-meter distance limitation of standard Ethernet cabling.
This extender supports up to 60W of auto-negotiated power output and is compatible with IEEE 802.3af, 802.3at, and 802.3bt (Type 3) standards.
Built for mission-critical reliability, the device features a rugged IP-30 rated aluminum housing and is rated for operation in extreme temperatures from -40°C to +75°C.
Extends 802.3bt/at/af PoE signals an additional 100m over Cat5e/6.
Supports up to 60W output for high-draw PTZ cameras and sensors.
Cascade up to 4 units for 500m total reach from the PSE source.
Hardened IP-30 aluminum shell survives -40°C to 75°C temperatures.
Built-in 2kV surge and 8kV air ESD protection prevents port failure.
| Technical Specifications | |
| Brand | StarTech |
| Part Number | POEEXT1G60W |
| Product Type | PoE Extender |
| Speed | 10/100/1000 Mbps |
| PoE Output | Up to 60W (IEEE 802.3af/at/bt) |
| Max Input Power | 95W |
| Power Consumption | 2.7W |
| Interfaces | 1x RJ45 PD In, 1x RJ45 PSE Out |
| Jumbo Frame Support | 9K |
| Chipset ID | Realtek RTL8367 / Microsemi PD69101 |
| Housing Material | IP-30 Aluminum |
| Operating Temperature | -40°C to 75°C (-40°F to 167°F) |
| MTBF | 551,848 hours at 50°C |
| Mounting Options | DIN Rail or Wall Mount |
| Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3af, 802.3at, 802.3bt |
