Detailed Specifications

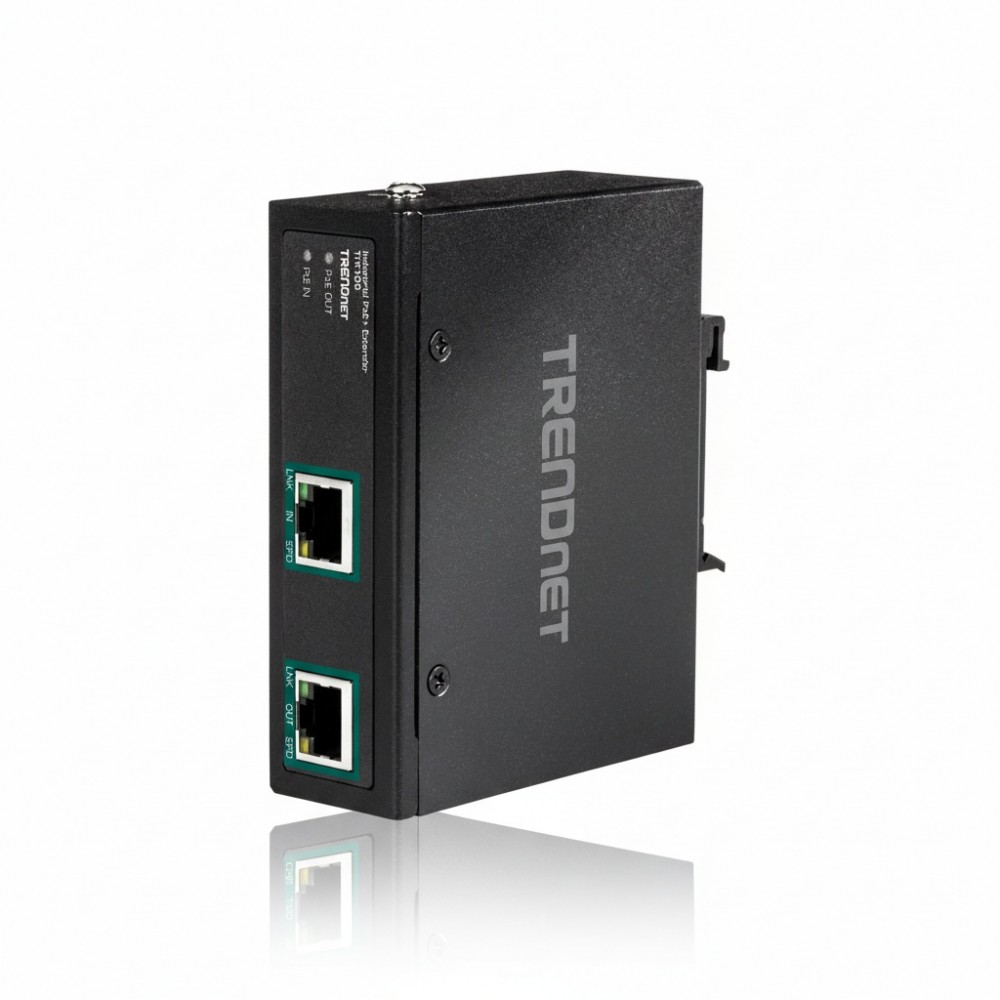

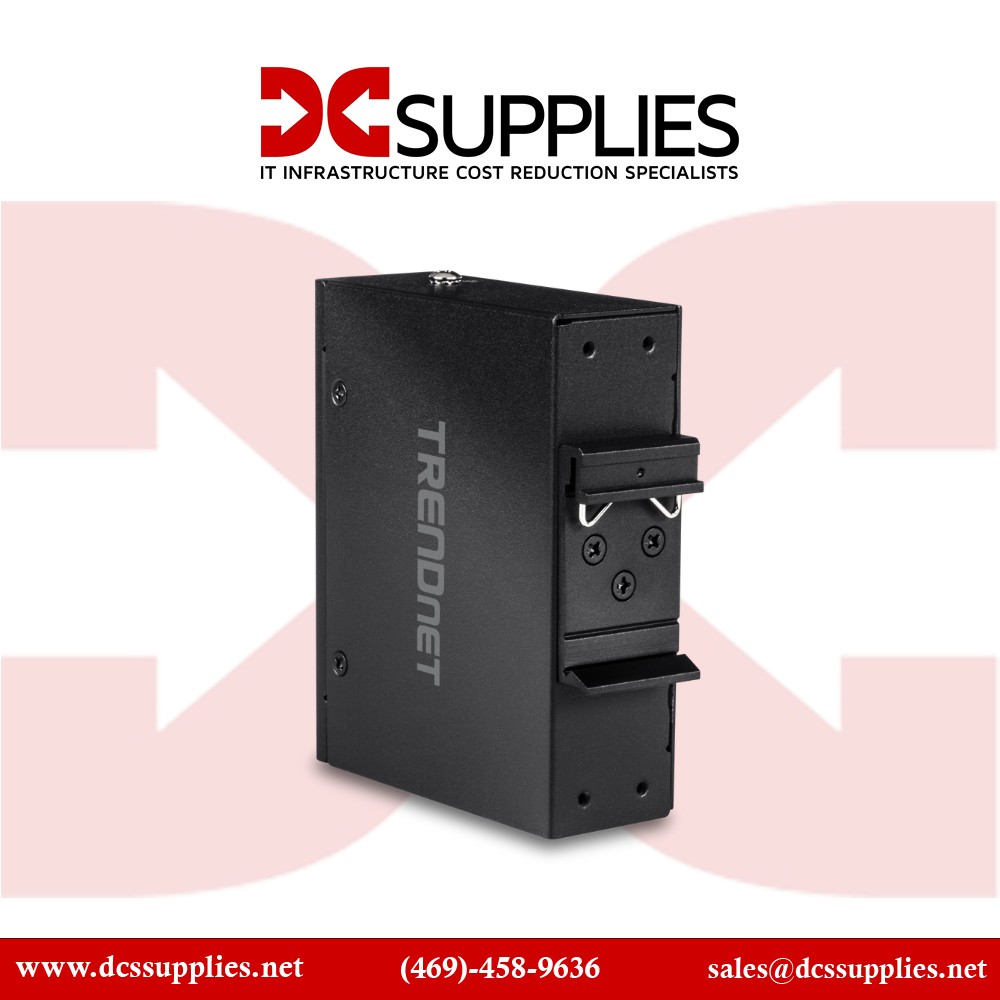

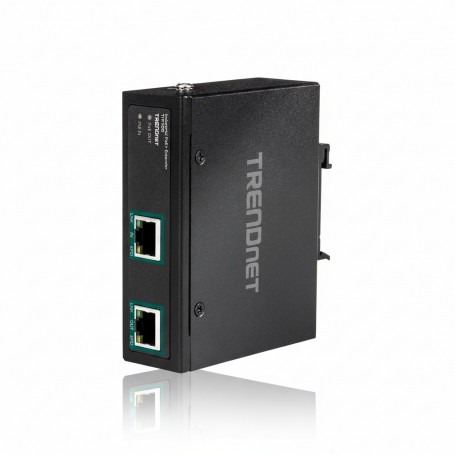

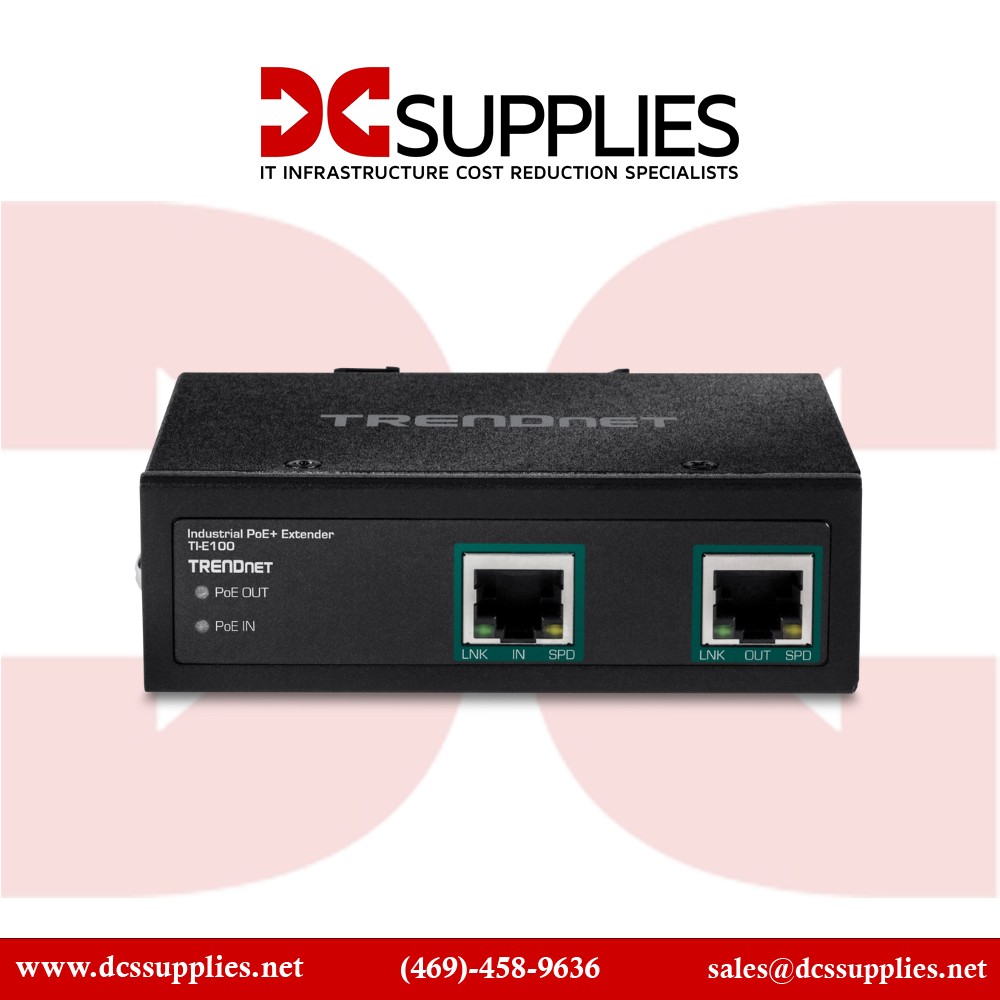

TRENDnet TI-E100 - Industrial Gigabit PoE+ Extender
Overview :
The TRENDnet TI-E100 is an industrial-grade PoE+ extender, designed to take a single Power-over-Ethernet (PoE or PoE+) feed and extend that connection by up to 100 meters (328 ft) beyond its source. It auto-detects whether the input is standard PoE (15.4 W) or PoE+ (30 W), and provides a matching PoE output to the remote device. In typical deployments, you can place it up to 200 m (656 ft) from the PoE power source, or daisy-chain up to two units for a total of 300 m (984 ft) range. Built for harsh environments, the extender has an IP30-rated metal housing and works over a wide temperature range from -40 °C to +75 °C. It supports both wall and DIN-rail mounting. Because it's powered via PoE, there is no need for an external power adapter, simplifying installs in remote or constrained locations. It's a robust option for extending PoE-powered devices like IP cameras, wireless access points, or industrial sensors in challenging environments.
Key Features :
Auto-sensing PoE / PoE+ input
Extends PoE network by 100 m per unit
Daisy-chain capable for 300 m reach
IP30 metal enclosure for industrial use
Wide −40 °C to +75 °C operating range
Specifications :
| Specification | Details |
|---|
| Brand | TRENDnet |
| Part Number | TI-E100 |
| Product Type | Industrial Gigabit PoE+ Extender |
| Data Rate | 10/100/1000 Mbps (Gigabit) |
| PoE Input Power | 15.4 W (PoE) / 30 W (PoE+) |
| PoE Output Power | Up to 30 W (PoE+) |
| Power Consumption (no PoE) | 3.5 W |
| Extension Distance | +100 m per unit (328 ft) |
| Daisy-chain Maximum Distance | 300 m (984 ft) with 2 units |
| MAC Address Table Size | 2 K entries |
| Jumbo Frame Support | 9 KB |
| Operating Temperature | -40 °C to +75 °C (-40 °F to 167 °F) |
| Humidity | Up to 90% non-condensing |
| Housing | Metal, IP30 rated |
| Mounting Options | Wall mount, DIN-rail |
| Dimensions | 4.06 × 3.15 × 1.26 in (103 × 80 × 32 mm) |
| Weight | ~5.6 oz (0.35 lb) |
