Overview

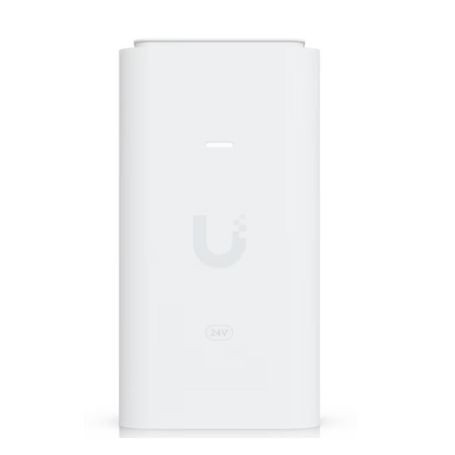

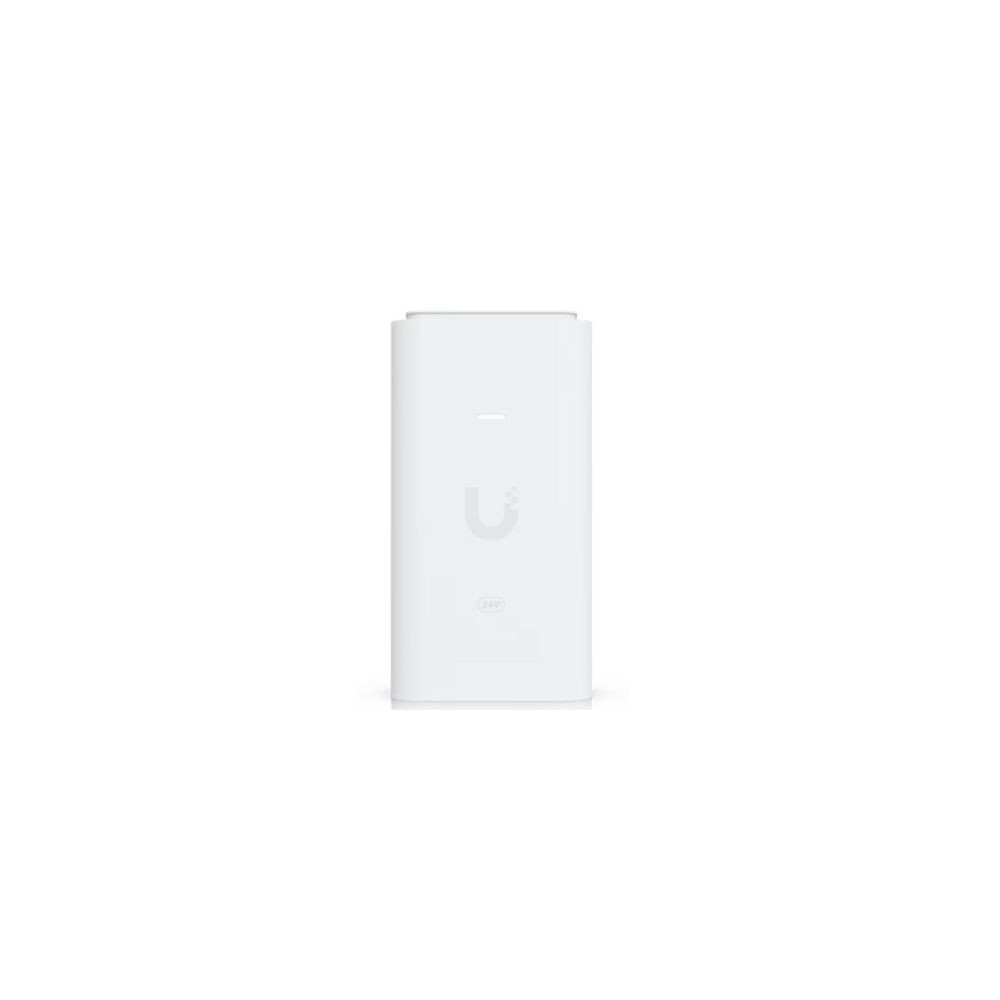

The Ubiquiti UACC-ADAPTER-POE-24-12W is a 24V DC, 12W PoE adapter designed to deliver power and Ethernet connectivity to compatible Ubiquiti network devices. It combines a shielded RJ45 interface, Gigabit LAN support, remote reset capability, and surge protection in a compact enclosure.
Power and Connectivity
The adapter accepts 100–240V AC at 50/60Hz and provides 24V DC at 0.5A for a total output power of 12W. The RJ45 interface supports Gigabit Ethernet, allowing network data and power to be delivered through the Ethernet connection. Ubiquiti specifies 2-pair powering with pins 4 and 5 positive and pins 3, 6, 7, and 8 negative. :contentReference[oaicite:1]{index=1}
Protection and Reset
The UACC-ADAPTER-POE-24-12W provides differential- and common-mode surge protection, with a maximum power surge discharge of 1500A and a peak data pulse current of 36A. It also includes remote reset capability and a physical reset button. :contentReference[oaicite:2]{index=2}
Key Features
- 24V DC output at 0.5A
- 12W total output power
- Gigabit Ethernet connectivity
- Remote reset and physical reset button
- Differential and common-mode surge protection
Applications
The adapter is intended for compatible Ubiquiti devices requiring 24V passive PoE. Ubiquiti lists compatibility with devices including Wave-Fiber-ONU, UF-LOCO, UISP-FIBER-XG, UF-Nano, UF-WIFI, UACC-AE, and UF-WiFi6. :contentReference[oaicite:3]{index=3}
DC Supplies Product Note
The UACC-ADAPTER-POE-24-12W is a 24V PoE adapter rather than a standard 802.3af/at PoE source. Confirm that the connected device supports the adapter's 24V power requirements before deployment.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-ADAPTER-POE-24-12W |
| Product Type | PoE Adapter |
| Product Line | UISP |
| Input Voltage | 100–240V AC |
| Input Frequency | 50/60Hz |
| Output Voltage | 24V DC |
| Output Current | 0.5A |
| Total Output Power | 12W |
| Networking Interface | RJ45 |
| Gigabit LAN Port | Yes |
| PoE Powering | 2-pair |
| Power Pins | 4, 5 (+); 3, 6, 7, 8 (-) |
| Data In / PoE | Shielded RJ45 socket |
| AC Connector | IEC-320 C6 |
| Remote Reset | Yes |
| Reset Button | Yes |
| Efficiency | 82.96% |
| Supported Output Voltage Range | 22.8–25.2V |
| Maximum Surge Discharge | 1500A (8/20 µs), power |
| Peak Pulse Current | 36A (10/1000 µs), data |
| Surge Protection | Differential and common mode |
| ESD/EMP Protection | 6kV/10kV |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -30 to 70°C |
| Operating Humidity | 5–95%, noncondensing |
| Certifications | CE, FCC, IC, UL, PSE, BSMI |
| NDAA Compliant | Yes |
FAQs
What is the output of the UACC-ADAPTER-POE-24-12W?
It provides 24V DC at 0.5A, for a total rated output of 12W.
Does it support Gigabit Ethernet?
Yes. Ubiquiti specifies a Gigabit LAN port through its RJ45 networking interface. :contentReference[oaicite:4]{index=4}
Does the adapter support remote reset?
Yes. It includes both remote reset capability and a physical reset button. :contentReference[oaicite:5]{index=5}
What AC input does it require?
The adapter accepts 100–240V AC at 50/60Hz and uses an IEC-320 C6 AC connector. :contentReference[oaicite:6]{index=6}
What are its physical dimensions and weight?
The adapter measures 89 × 46 × 33 mm and weighs 100 g. :contentReference[oaicite:7]{index=7}
