Overview

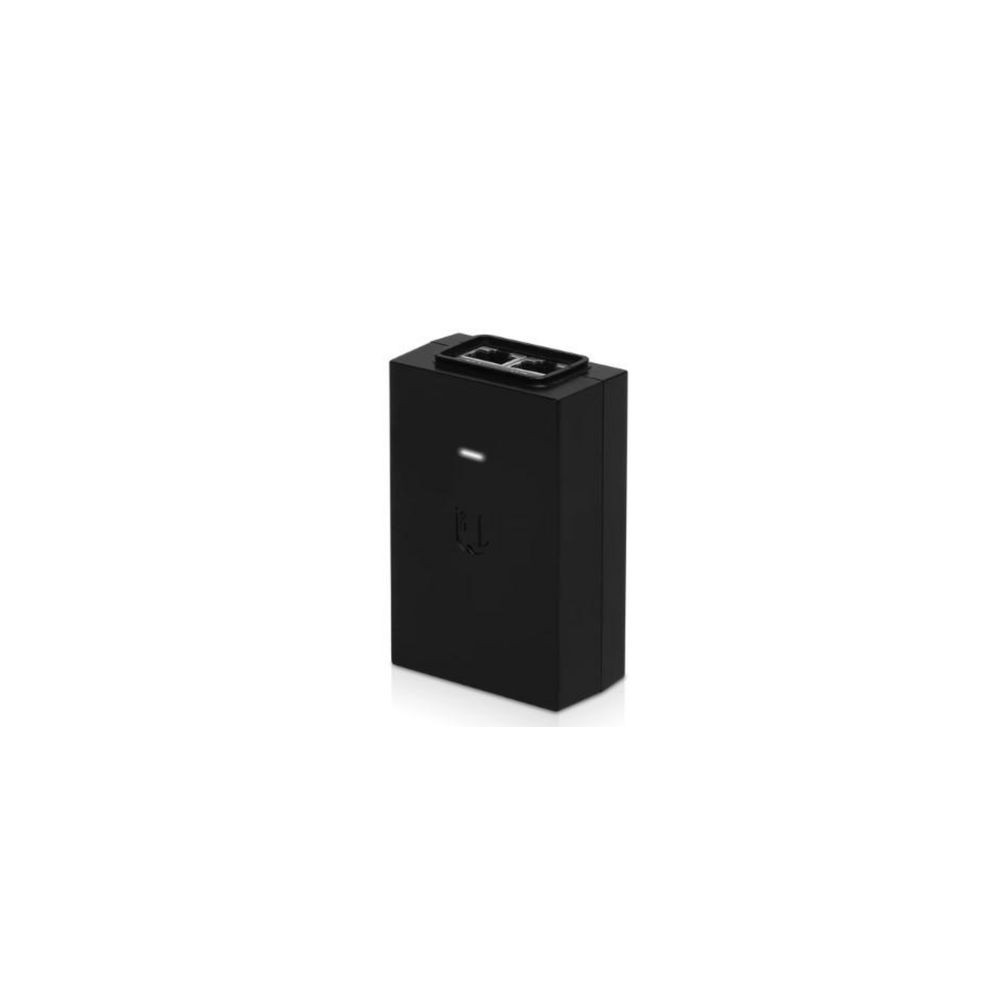

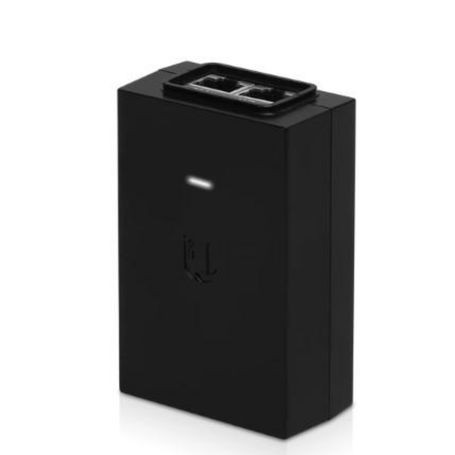

The Ubiquiti POE-24-24W is a 24V passive PoE adapter designed to provide DC power to compatible Ubiquiti network devices over Ethernet. It delivers 24V DC at 1.0A and uses 2-pair power delivery through the Ethernet connection.
Power and Connectivity
The adapter accepts 100–240V AC at 50/60Hz and provides a 24V DC, 1.0A output. Power is delivered on pins 4 and 5 positive and pins 7 and 8 negative. The data interface uses a shielded RJ45 socket, while the adapter does not provide a Gigabit LAN port or LAN activity indicator. :contentReference[oaicite:1]{index=1}
Protection and Reset
The POE-24-24W includes differential- and common-mode surge protection, 11V data clamping, and 60V power clamping. Ubiquiti specifies maximum surge discharge of 1500A for the power circuit and a 36A peak pulse current for data protection. Remote reset capability and a physical reset button are also provided. :contentReference[oaicite:2]{index=2}
Key Features
- 24V DC output at 1.0A
- 24W maximum output power
- 2-pair passive PoE power delivery
- Remote reset capability and physical reset button
- Differential and common-mode surge protection
Applications
The POE-24-24W is intended for powering compatible Ubiquiti devices that require 24V passive PoE. It can be deployed where Ethernet data and DC power need to be delivered to a compatible device through a single network cable.
DC Supplies Product Note
This adapter provides passive 24V PoE rather than IEEE 802.3af/at PoE. Verify that the connected device specifically supports 24V passive PoE before applying power.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | POE-24-24W |
| Product Type | Passive PoE Adapter |
| Output Voltage | 24V DC |
| Output Current | 1.0A |
| Output Power | 24W |
| Input Voltage | 100–240V AC |
| Input Frequency | 50/60Hz |
| Input Current | 0.6A at 120V AC; 0.4A at 240V AC |
| PoE Type | 24V Passive PoE |
| Powering Method | 2-pair |
| Power Pins | 4, 5 (+); 7, 8 (-) |
| Data Interface | Shielded RJ45 socket |
| Gigabit LAN Port | No |
| Remote Reset | Yes |
| Reset Button | Yes |
| Efficiency | 80%+ |
| Surge Protection | Differential and common mode |
| Data Clamping | 11V |
| Power Clamping | 60V |
| Maximum Surge Discharge | 1500A (8/20 µs) |
| Peak Pulse Current | 36A (10/1000 µs) |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -30 to 70°C |
| Operating Humidity | 35–95% noncondensing |
| AC Connector | IEC-320 C6 |
| Certifications | CE, FCC, IC, UL |
| NDAA Compliant | Yes |
FAQs
What voltage does the POE-24-24W provide?
It provides 24V DC at 1.0A, for a maximum output of 24W.
Is the POE-24-24W Gigabit compatible?
Ubiquiti specifies that this model does not have a Gigabit LAN port. The adapter provides data connectivity alongside its passive PoE output.
Does it use standard IEEE 802.3af or 802.3at PoE?
No. The POE-24-24W is a 24V passive PoE adapter, so the connected device must support the required passive 24V power input.
Does it support remote reset?
Yes. Ubiquiti specifies both remote reset capability and a physical reset button.
What are the physical dimensions?
The adapter measures 88 × 57 × 33 mm and weighs 135 g.
