Overview

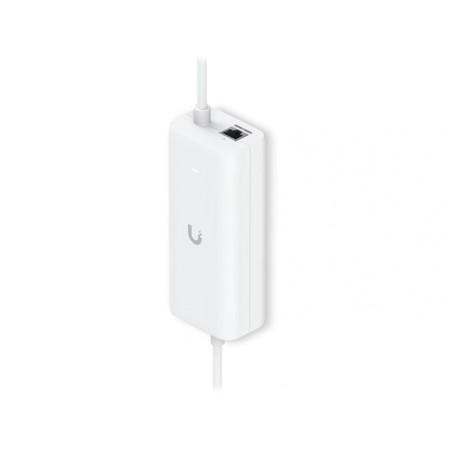

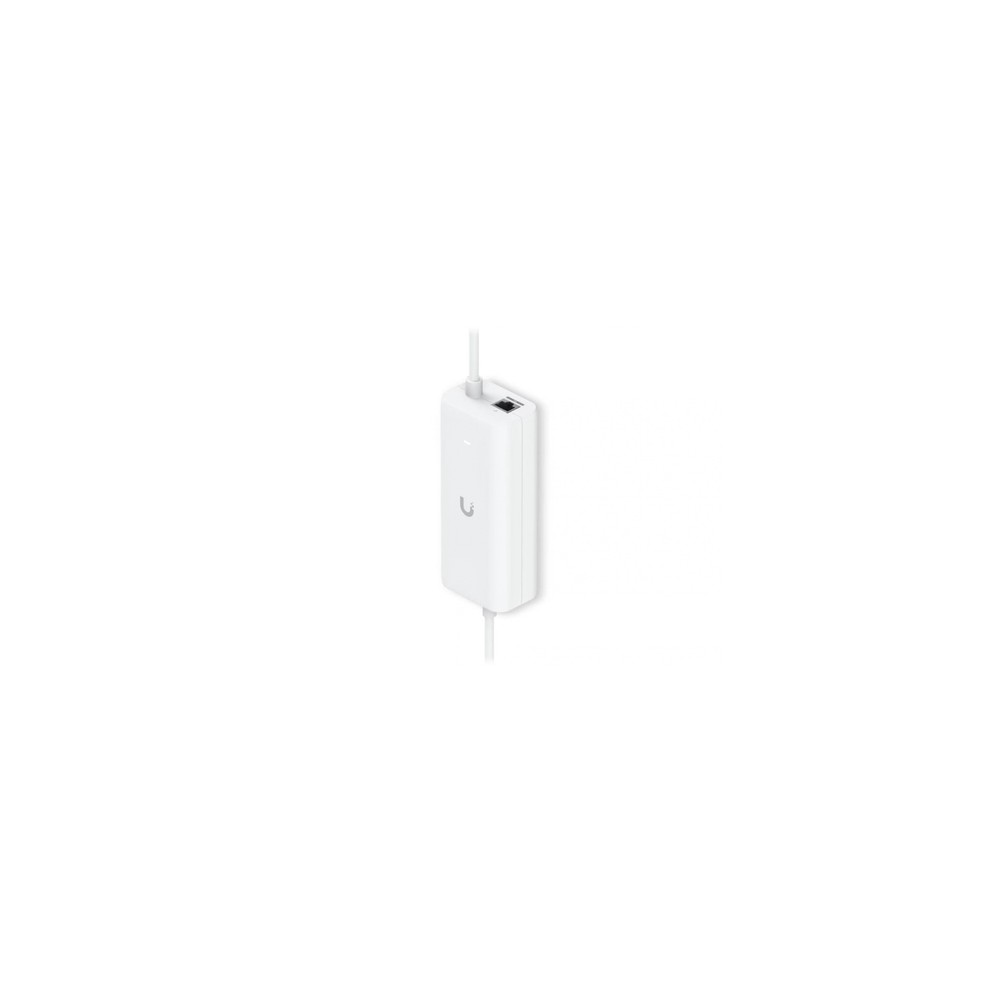

The Ubiquiti UACC-PoE+-USBC is a UniFi PoE Integrated AC Adapter that combines USB-C power delivery with a Gigabit Ethernet PoE+ output. It is designed to power a compatible UniFi Cloud Gateway through USB-C while simultaneously providing up to 30W of PoE+ power to a connected Ethernet device.
The adapter accepts 100–240V AC power and provides a USB-C output rated at 5V/5A together with a 48V/0.65A PoE+ output. Its integrated cabling combines the Type-C and Ethernet connections, providing a compact power and connectivity solution for compatible UniFi deployments.
Power and Connectivity
The UACC-PoE+-USBC has a shielded RJ45 data-in/PoE interface supporting Gigabit Ethernet and 4-pair PoE+ power delivery. The PoE+ output provides 48V DC at 0.65A, corresponding to up to 30W of PoE+ output.
The USB-C output provides 5V at 5A. Ubiquiti specifically positions this USB-C connection for powering a compatible UniFi Cloud Gateway, while the integrated PoE+ output can power a connected PoE device.
Installation and Cable Configuration
The adapter includes an integrated cable assembly measuring 150 cm (4.9 ft) in total, including 30 cm split Type-C and Ethernet ends. The power cord is 180 cm (5.9 ft) long.
For installations requiring alternative mounting arrangements, Ubiquiti identifies wall, DIN rail, and floating mounting options for the adapter. DIN rail and floating mounts are sold separately.
Electrical Protection
The adapter incorporates protection for both its data and power paths. Ubiquiti specifies 11V data clamping protection and 60V power clamping protection, along with difference-mode and common-mode surge protection.
Additional electrical specifications include a maximum input current of 1.5A, 82% efficiency, maximum output ripple of 1%, and line and load regulation of 5% or less.
Key Features
- Integrated AC adapter with USB-C power output and PoE+ output
- Up to 30W of PoE+ power through the Gigabit Ethernet connection
- 5V/5A USB-C output for compatible UniFi Cloud Gateway power
- 100–240V AC input with integrated 150 cm Type-C/Ethernet cable assembly
- Surge, clamping, and electrical protection for data and power paths
Applications
The UACC-PoE+-USBC is intended for installations where a compatible UniFi Cloud Gateway requires USB-C power while a connected Ethernet device also needs PoE+ power. It can therefore consolidate AC power, USB-C power delivery, Ethernet data, and PoE+ output into one adapter.
DC Supplies Product Note
The two power outputs should be treated according to their individual ratings: the USB-C output is specified at 5V/5A, while the Ethernet PoE+ output is specified at 48V/0.65A, providing up to 30W of PoE+ power. Verify the connected devices' power requirements and compatibility before deployment. The optional DIN rail and floating mounts are not part of the standard adapter specification.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-PoE+-USBC |
| Product Type | PoE Integrated AC Adapter |
| Series | UniFi |
| AC Input | 100–240V AC at 50/60 Hz |
| Maximum Input Current | 1.5A |
| USB-C Output | 5V at 5A |
| PoE+ Output | 48V DC at 0.65A |
| Maximum PoE+ Output | Up to 30W |
| Ethernet Interface | 1 x Gigabit Ethernet |
| Data In / PoE | Shielded RJ45 socket |
| PoE Powering | 4-pair |
| Power Pins | Pins 1, 2, 4, 5 positive; pins 3, 6, 7, 8 negative |
| Cable Length | 150 cm (4.9 ft) total, including 30 cm split Type-C/Ethernet ends |
| Power Cord Length | 180 cm (5.9 ft) |
| Efficiency | 82% |
| Switching Frequency | 65 kHz |
| Output Ripple | 1% maximum |
| Line Regulation | ≤5% |
| Load Regulation | ≤5% |
| Data Clamping Protection | 11V |
| Power Clamping Protection | 60V |
| Maximum Surge Discharge | 1500A (8/20 μs) power |
| Peak Pulse Current | 36A (10/1000 μs) data |
| Response Time | <1 ns |
| Shunt Capacitance | <5 pF data |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -30°C to 70°C (-22°F to 158°F) |
| Operating Humidity | 10% to 95% non-condensing |
| Dimensions | 146 x 62 x 42 mm (5.7 x 2.4 x 1.7 in) |
| Weight | 358 g (12.6 oz) |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, UL, UKCA, CCC, RoHS |
FAQs
What is the UACC-PoE+-USBC?
The UACC-PoE+-USBC is a UniFi PoE Integrated AC Adapter that provides USB-C power and Gigabit Ethernet with PoE+ output from a single AC-powered adapter.
How much PoE power does it provide?
The Ethernet PoE+ output is rated at 48V DC and 0.65A, providing up to 30W of PoE+ power to a connected device.
What is the USB-C output rating?
The USB-C output is rated at 5V and 5A. Ubiquiti specifies this USB-C output for powering a compatible UniFi Cloud Gateway.
What AC input voltage does the adapter support?
The adapter supports 100–240V AC at 50/60 Hz, allowing operation across the specified universal AC input range.
Does the adapter provide Gigabit Ethernet?
Yes. The integrated Ethernet interface is a Gigabit LAN port using a shielded RJ45 connection.
Are the DIN rail and floating mounts included?
No. Ubiquiti identifies DIN rail and floating mounting options as accessories sold separately. The standard adapter specification does not include those optional mounts.
