Overview

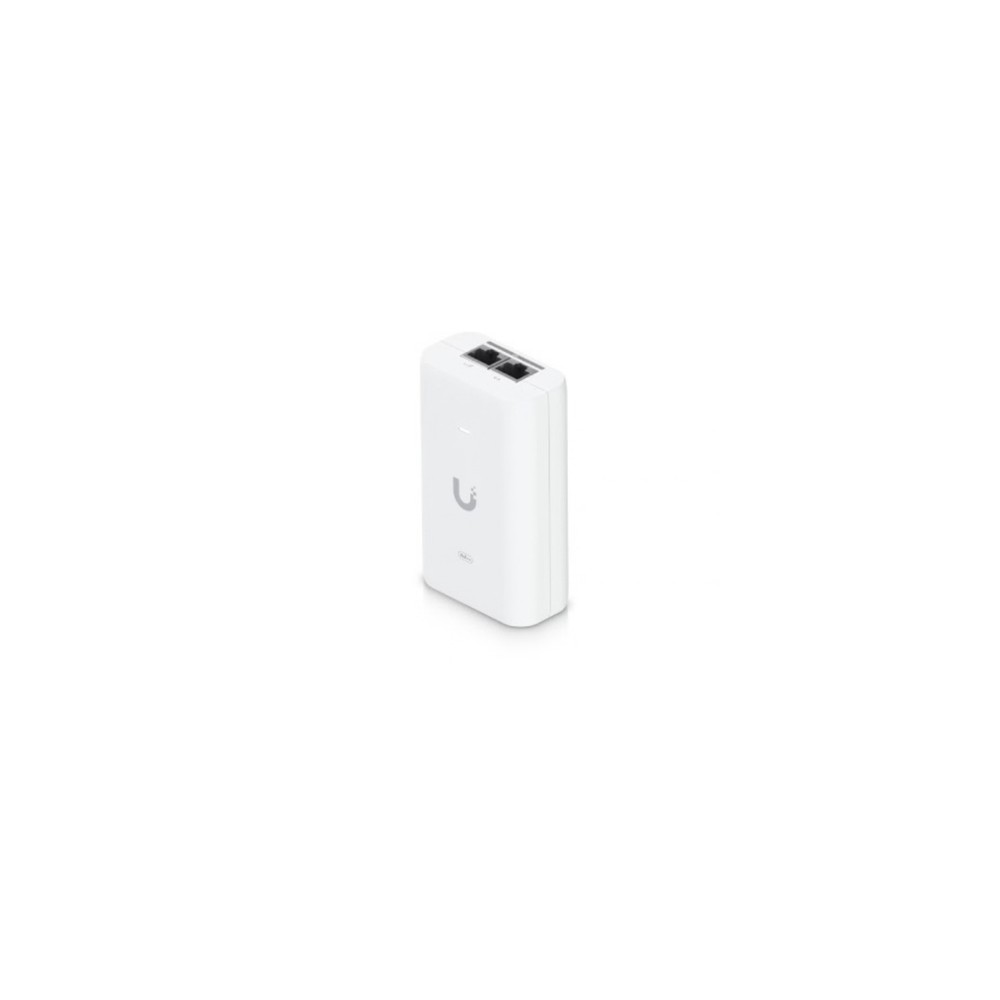

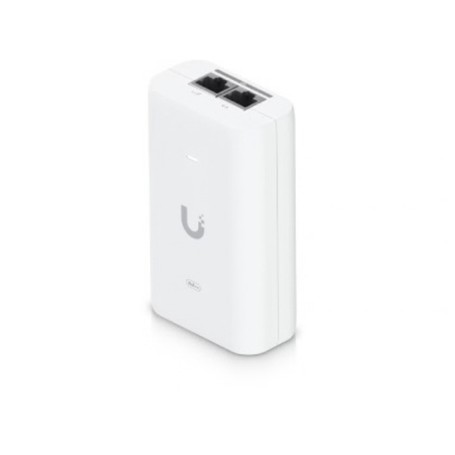

The Ubiquiti UACC-PoE+++-10G is a 90W PoE+++ adapter designed to power compatible UniFi PoE+++ devices while providing a Multi-Gigabit network connection. It combines AC power conversion, Ethernet data connectivity, and high-power PoE output in a compact adapter.
PoE+++ Power Delivery
The adapter delivers up to 90W of PoE+++ power through a four-pair RJ45 connection. It provides 54V DC output at 1.67A and is designed to reduce dependency on PoE switch power when powering compatible high-power network devices.
10G Network Connectivity
UACC-PoE+++-10G provides an RJ45 data input and supports a Gigabit LAN port. The adapter is designed to provide Multi-Gigabit LAN connectivity alongside PoE power delivery, making it suitable for compatible high-bandwidth UniFi devices.
Protection Features
The adapter includes surge, peak pulse, overcurrent, and clamping protection. Ubiquiti specifies 11V data and 60V power clamping protection, along with difference-mode and common-mode surge protection.
Mounting Options
The adapter supports wall mounting and can also be installed using optional DIN rail or floating mounting accessories. The power cable is included.
Key Features
- Up to 90W PoE+++ power output
- 54V DC output at 1.67A
- RJ45 data input with four-pair PoE powering
- Surge, peak pulse, overcurrent, and clamping protection
- Wall-mountable design with optional DIN rail and floating mounting
Applications
The UACC-PoE+++-10G can be used to power compatible UniFi PoE+++ access points, network devices, and other high-power PoE equipment where direct PoE switch power is unavailable or additional PoE capacity is required.
DC Supplies Product Note
This adapter is intended for compatible PoE+++ devices requiring up to 90W of PoE power. Verify the connected device's PoE requirements before installation. DIN rail and floating mounting options are sold separately.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UACC-PoE+++-10G |
|---|
| Product Type | 10G PoE+++ Adapter |
|---|
| Maximum PoE Output | 90W |
|---|
| Output Voltage | 54V DC @ 1.67A |
|---|
| AC Input Voltage | 100–240V AC |
|---|
| AC Frequency | 50/60Hz |
|---|
| Maximum Input Current | 1.5A |
|---|
| Data Interface | RJ45 shielded socket |
|---|
| PoE Powering | 4-pair |
|---|
| Powering Pins | 1, 2, 4, 5 (+); 3, 6, 7, 8 (-) |
|---|
| Clamping Protection | 11V data, 60V power |
|---|
| Efficiency | >88% |
|---|
| Switching Frequency | 65kHz |
|---|
| Output Ripple | 1% maximum |
|---|
| Line Regulation | ≤2% |
|---|
| Load Regulation | ≤5% |
|---|
| Maximum Surge Discharge | 1500A (8/20 μs) power |
|---|
| Peak Pulse Current | 36A (10/1000 μs) data |
|---|
| Response Time | <1ns |
|---|
| Operating Temperature | 0°C to 40°C |
|---|
| Storage Temperature | -30°C to 70°C |
|---|
| Operating Humidity | 10–95% non-condensing |
|---|
| Dimensions | 164.5 × 81 × 42 mm |
|---|
| Weight | 372 g |
|---|
| NDAA Compliant | Yes |
|---|
| Certifications | CE, FCC, IC, UL, UKCA, KC, CCC, RoHS |
|---|
FAQs
How much power does the UACC-PoE+++-10G provide?
It provides up to 90W of PoE+++ power to a compatible connected device.
What is the adapter's output voltage?
The adapter provides 54V DC at 1.67A.
Does the adapter include an AC power cable?
Yes. Ubiquiti specifies that the power cable is included.
Does it provide protection against electrical surges?
Yes. It includes difference-mode and common-mode surge protection, along with clamping and peak-pulse protection.
Can the adapter be mounted on a DIN rail?
Yes, but the DIN rail mounting accessory is sold separately. Wall mounting is supported directly.
