Detailed Specifications

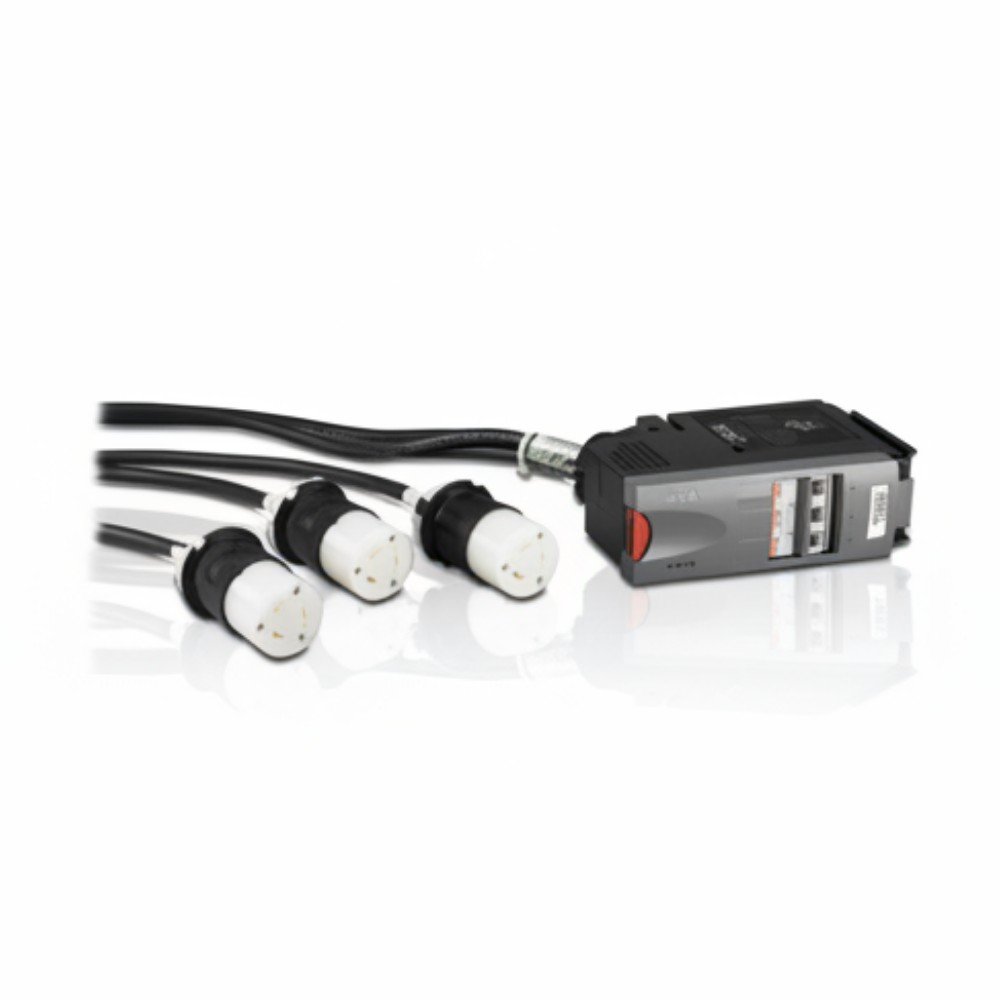

APC PDM1320L5-3P-2 Power Distribution Module
Overview
The APC PDM1320L5-3P-2 is a modular power distribution module used in compatible APC 208 V modular rack PDUs to provide three separate 120 V circuits. Each circuit has a built-in single-pole breaker and feeds a NEMA L5-20R receptacle for controlled branch feeding. The module is intended for data centers and enterprise racks that require segmented, breaker-protected outlets in modular infrastructure. It installs into a modular PDU backplane and supports standard rack electrical layouts.
Key Features
Three NEMA L5-20R 20 A receptacles
Three independent 1-pole breakers
Designed for APC modular PDU systems
Multiple fixed cable length options
Technical Specifications
| Specification | Detail |
|---|
| Brand | APC |
| Part Number | PDM1320L5-3P-2 |
| Product Type | Modular Power Distribution Module |
| Input Voltage | 208 V AC three-phase |
| Output Voltage | 120 V AC |
| Nominal Frequency | 60 Hz |
| Maximum Current per Phase | 20 A |
| Output Receptacles | 3 × NEMA L5-20R |
| Breaker Configuration | 3 × single-pole breakers |
| Cable Lengths | 680 cm, 860 cm, 1040 cm |
| Mounting | APC modular PDU slot install |
| Dimensions (H×W×D) | 5″ × 17.52″ × 15.98″ |
| Weight | 3.51 lb (1.59 kg) |
| Certifications | UL listed, RoHS compliant |
