Detailed Specifications

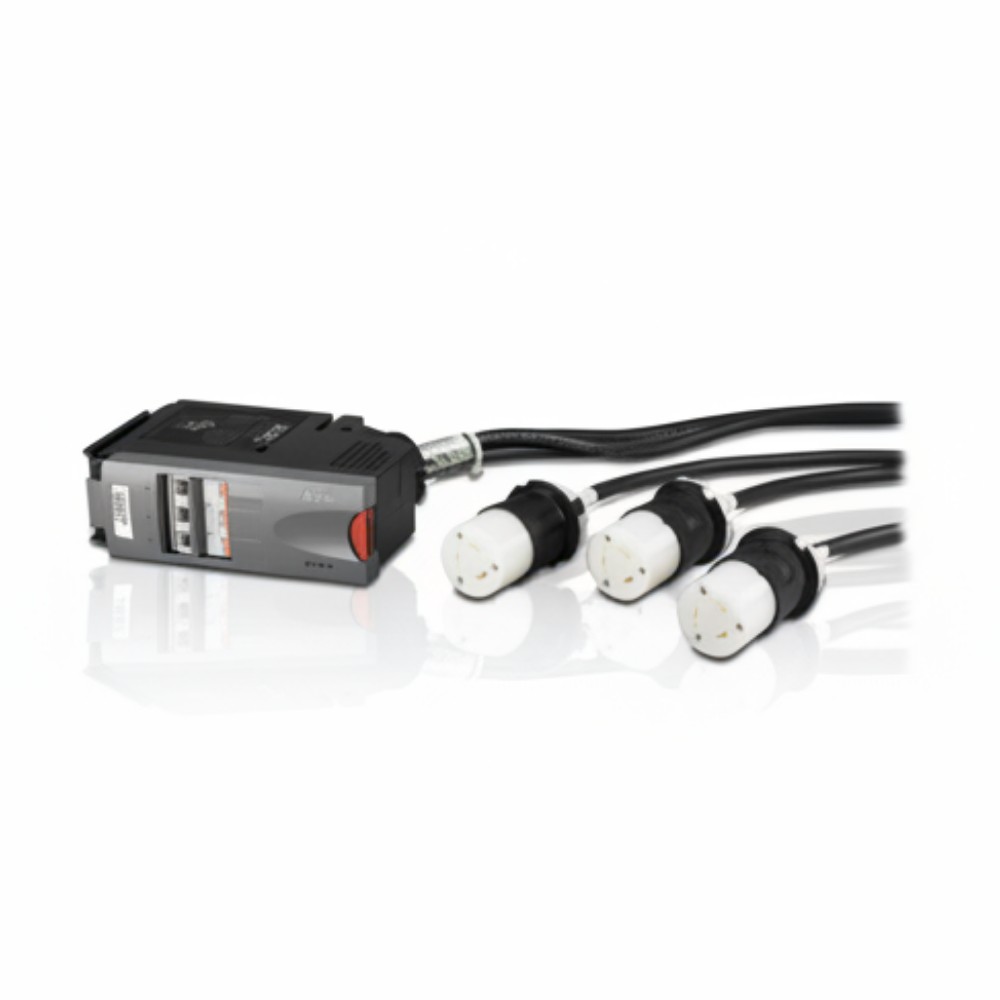

APC PDM1320L5-3P-1 Power Distribution Module
Overview
The APC PDM1320L5-3P-1 is a factory-assembled power distribution module designed for modular rack PDUs in three-phase IT power systems. It provides three NEMA L5-20R outlets and integrated circuit protection for balanced 120 V output from a 208 V three-phase source. The unit simplifies deployment and expansion of APC modular PDUs in data centers and enterprise racks. It includes built-in monitoring and safety features suitable for managed power distribution environments.
Key Features
Three NEMA L5-20R outlets at 20 A
Factory-assembled, with circuit breaker
120 V output from 208 V three-phase input
Integrated safety latch and positive locking connectors
Technical Specifications
| Specification | Detail |
|---|
| Brand | APC |
| Part Number | PDM1320L5-3P-1 |
| Product Type | Power Distribution Module |
| Input Voltage | 208 V AC three-phase |
| Output Voltage | 120 V AC |
| Nominal Frequency | 60 Hz |
| Maximum Line Current | 20 A |
| Outlets | 3 × NEMA L5-20R |
| Breaker Configuration | 3 × 1-pole breaker |
| Wire Configuration | 3-wire |
| Mounting | Plug-in to modular PDU |
| Cable Length | 3 m (approx.) |
| Dimensions (H×W×D) | ~5″×17.5″×16″ |
| Weight | ~3.5 lb (1.59 kg) |
| Certifications | UL Listed |
