Detailed Specifications

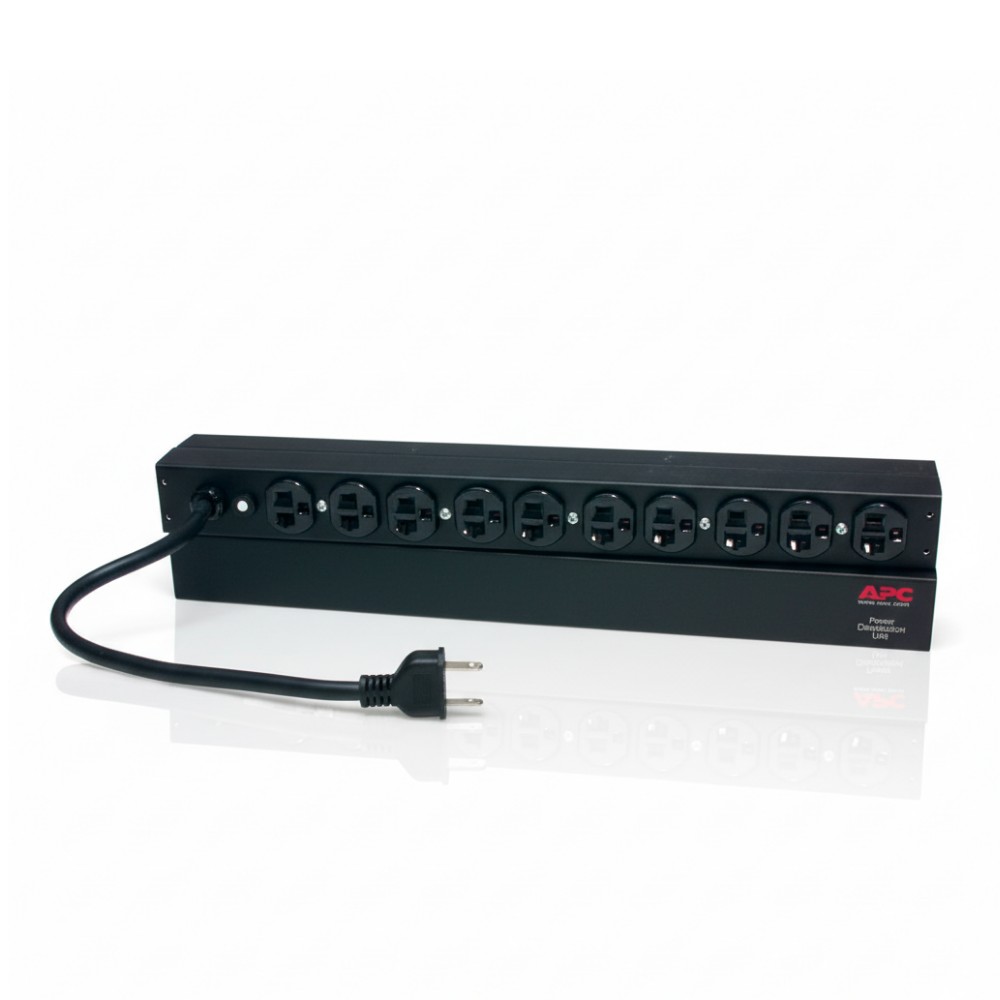

APC AP9560 - 1U 30A 120V Basic Rack PDU
Overview :
The APC AP9560 is a basic rack power distribution unit (PDU) designed to deliver reliable AC power to rack-mounted IT equipment. It distributes power from a single high-current input to multiple output receptacles, simplifying power delivery in server racks and network cabinets.
This unit supports 120V input with a 30A capacity and provides up to 2.88kVA load handling. It features 10 NEMA 5-20R outlets, enabling connection of multiple devices such as servers, switches, and storage systems. A NEMA L5-30P input plug and integrated circuit breaker provide controlled and protected power distribution.
Designed for horizontal 1U rack mounting, the AP9560 fits standard 19-inch enclosures and is commonly deployed in data centers, enterprise racks, and edge IT environments where simple, cost-effective power distribution is required.
This is a basic (non-metered, non-switched) PDU and should not be used where remote monitoring, outlet-level control, or power metering is required. It is best suited for stable environments with predictable loads.
Key Features :
30A input supports high-density rack loads
10 NEMA 5-20R outlets for device connectivity
1U horizontal mount fits standard 19-inch racks
Resettable circuit breaker for overload recovery
12 ft cord enables flexible rack installation
Technical Specifications :
| Specification | Details |
|---|
| Brand | APC |
| Part Number | AP9560 |
| Product Type | Basic Rack PDU |
| Input Voltage | 100-120V AC |
| Output Voltage | 120V AC |
| Load Capacity | 2880 VA |
| Maximum Input Current | 30A |
| Maximum Line Current | 24A |
| Input Connector | NEMA L5-30P |
| Output Receptacles | 10 × NEMA 5-20R |
| Mounting Type | 1U horizontal rack-mount |
| Cord Length | 12 ft (3.7 m) |
| Overload Protection | Resettable circuit breaker |
| Operating Temperature | -15°C to 45°C |
| Compliance | UL, cUL listed |
