Detailed Specifications
APC AP8653 Metered Rack PDU
Overview

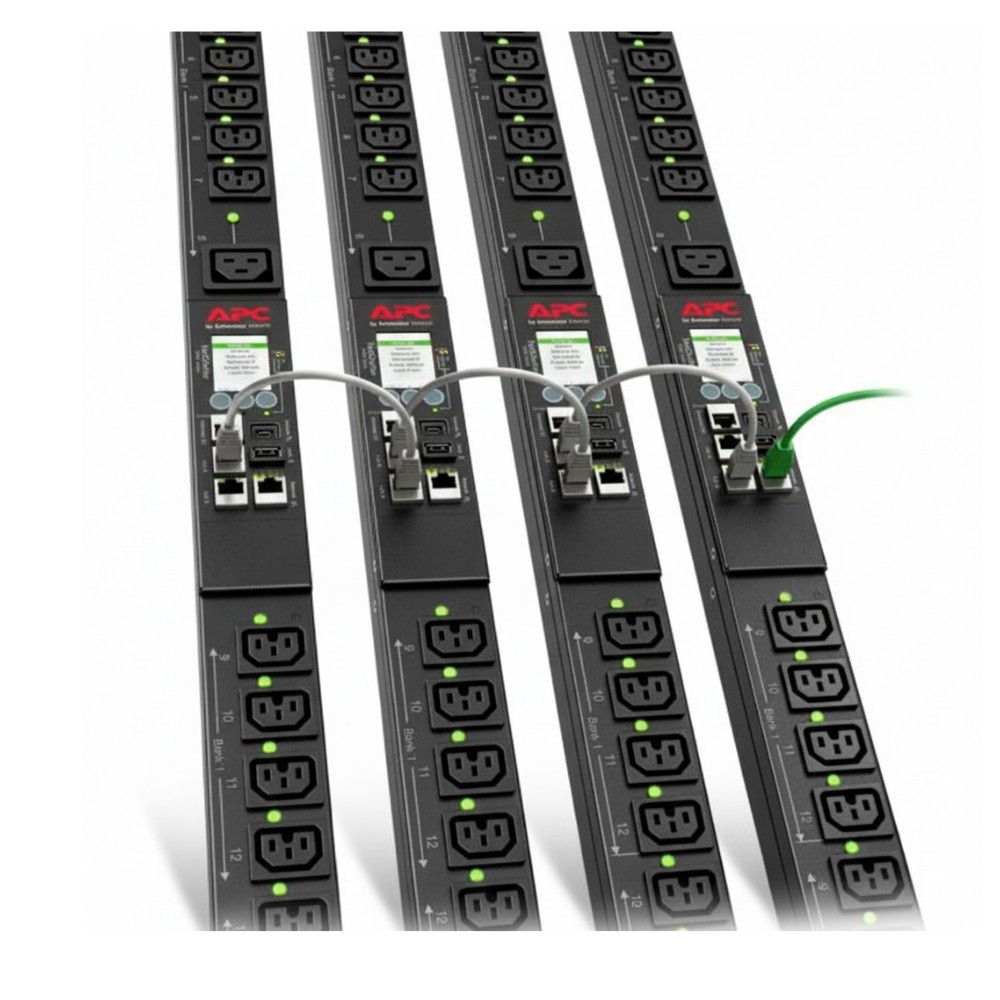

The APC AP8653 is a metered rack power distribution unit designed to distribute single-phase AC power while providing real-time load data. It accepts a 30 A, 208 V single-phase input and supplies power through twenty-four IEC 60320 C13 outlets and six IEC 60320 C19 outlets suitable for servers, switches, and storage gear. The vertical Zero U form factor installs in the rear channel of standard 19″ racks, conserving usable rack space for active equipment. It is deployed in data centers, enterprise racks, and telecom closets where basic metering without switching or outlet control helps with load balancing and capacity management.
Key Features
24 IEC 60320 C13 and 6 IEC 60320 C19 outlets
30 A single-phase 208 V input rating
Integrated real-time power metering
Vertical Zero U rack-mount design
Technical Specifications
| Specification | Details |
|---|
| Brand | APC |
| Part Number | AP8653 |
| Product Type | Metered Rack Power Distribution Unit |
| Input Voltage | 208 V AC |
| Maximum Input Current | 30 A |
| Input Frequency | 50/60 Hz |
| Input Connection | NEMA L6-30P |
| Output Connections | 24 × IEC 60320 C13; 6 × IEC 60320 C19 |
| Maximum Load Capacity | ~6240 VA |
| Metering Accuracy | ±3 % |
| Mounting Type | Vertical, Zero U |
| Power Cord Length | ~10 ft (≈ 3.05 m) |
| Height | ~36.0″ |
| Width | ~2.2″ |
| Depth | ~1.7″ |
| Net Weight | ~6.5 lb |
