Detailed Specifications
APC AP7563 Basic Rack PDU
Overview

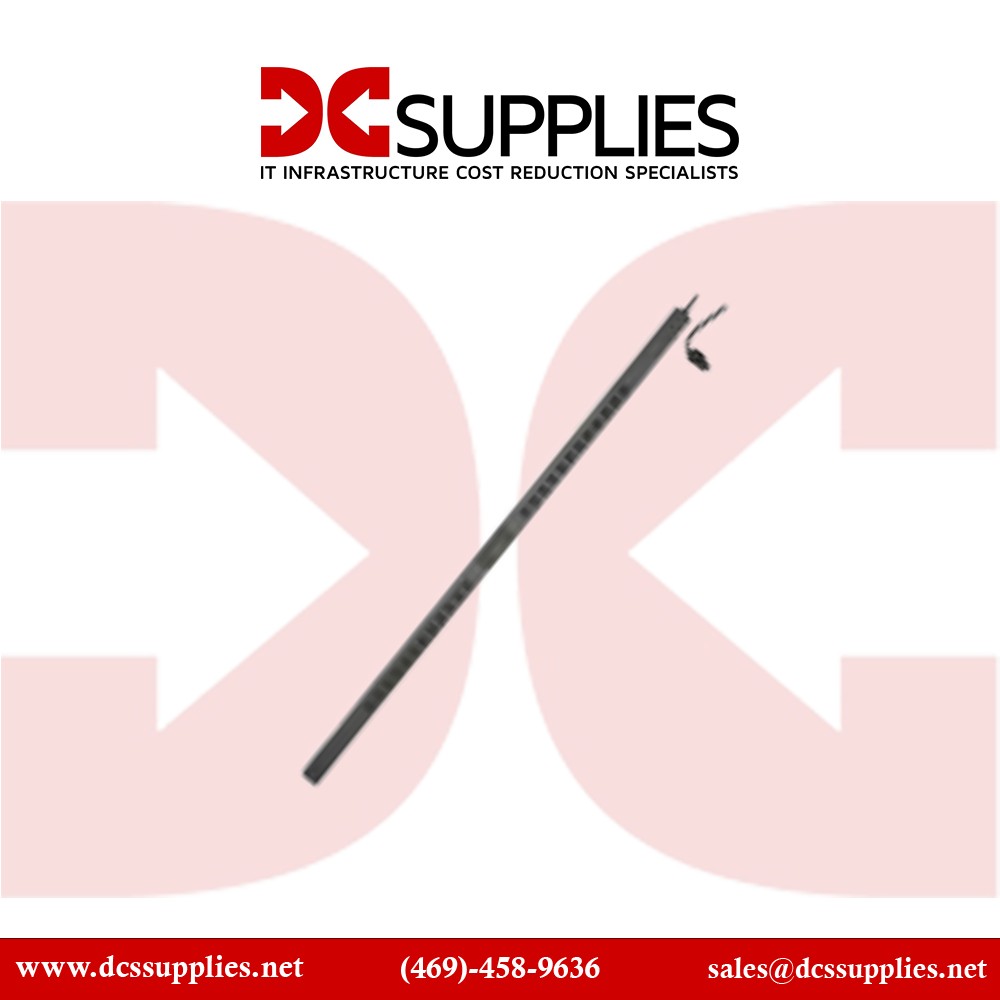

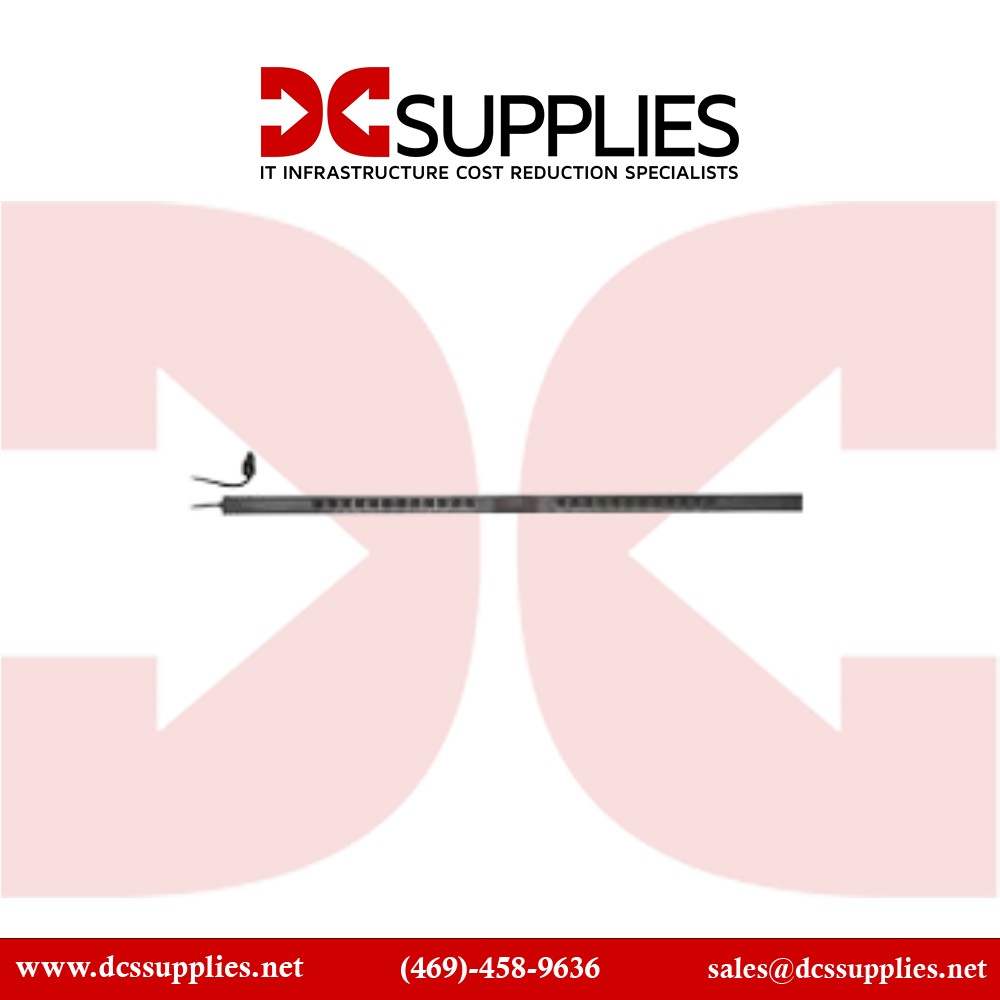

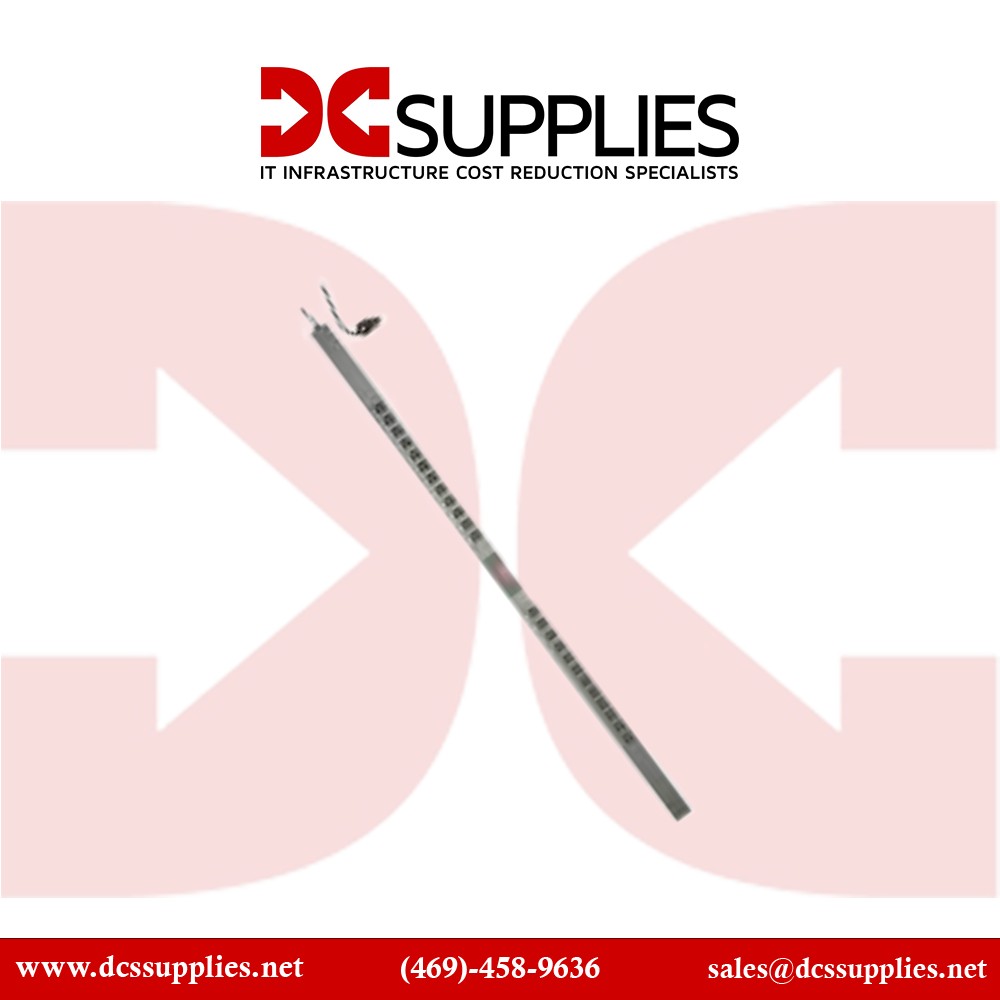

The APC AP7563 is a basic rack power distribution unit that accepts a single-phase 30 A 120 V input and distributes AC power to multiple devices in a rack. It provides twenty-four NEMA 5-20R outlets suitable for servers, networking gear, and storage equipment. The vertical Zero U form factor mounts in the rear channel of standard 19″ rack cabinets, conserving usable rack space for active hardware. It is used in data centers, telecom closets, and branch racks where straightforward, unmanaged power distribution is required.
Key Features
24 NEMA 5-20R output receptacles
Supports 30 A single-phase 120 V input
Zero U vertical rack-mount design
Toolless mounting hardware included
Technical Specifications
| Specification | Details |
|---|
| Brand | APC |
| Part Number | AP7563 |
| Product Type | Basic Rack Power Distribution Unit |
| Input Voltage | 100 - 120 V AC |
| Maximum Input Current | 30 A |
| Input Frequency | 50/60 Hz |
| Input Connection | NEMA L5-30P |
| Output Connections | 24 × NEMA 5-20R |
| Maximum Load Capacity | 2880 VA |
| Mounting Type | Vertical, Zero U |
| Power Cord Length | 10 ft (≈ 3.05 m) |
| Dimensions (H × W × D) | ~1619 × 56 × 44 mm |
| Net Weight | ~5.6 kg |
| Operating Temperature | 0 °C to 45 °C |
