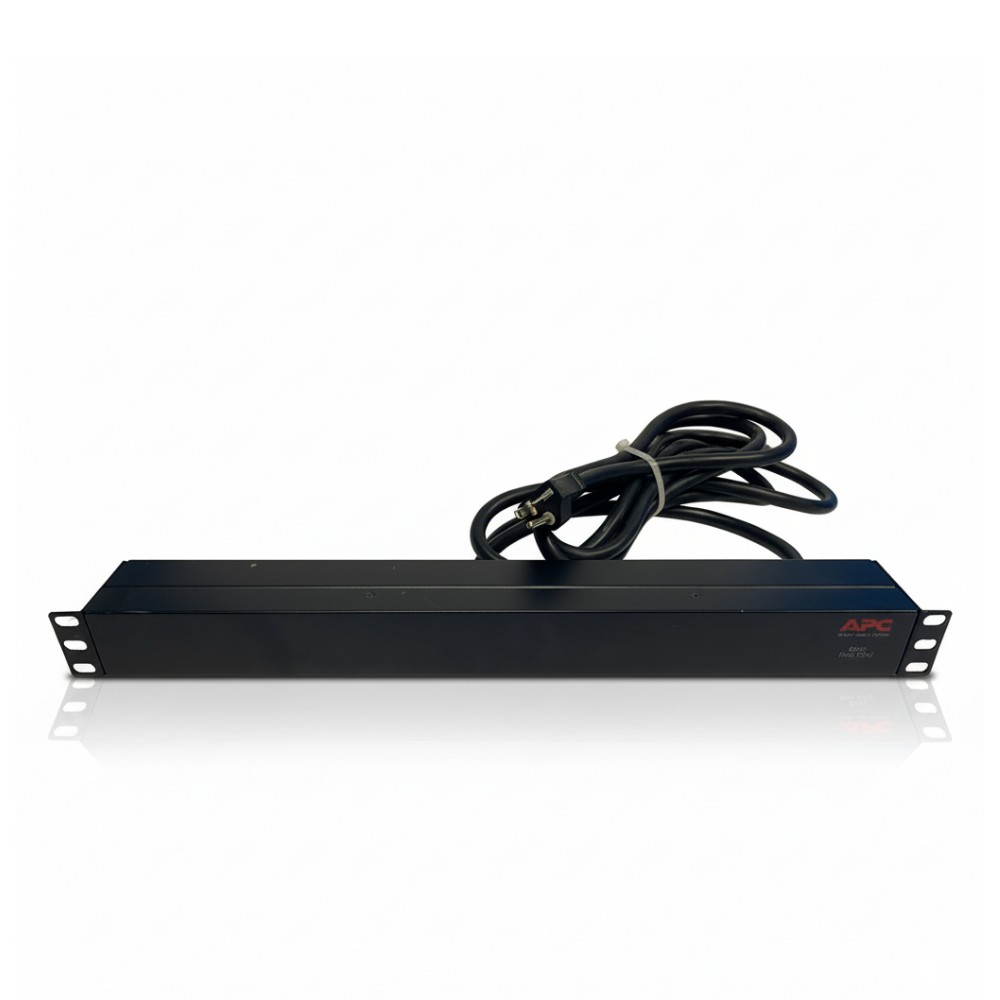

APC AP9563 Basic Rack PDU 10×5-20R 20 A 1U
Overview
APC AP9563 is a basic power distribution unit (PDU) engineered to deliver AC mains power to multiple rack devices from a single feed in structured rack infrastructure. It is specified for data center, network, and facilities engineers who need to expand a single 120 V branch circuit into multiple serviceable outlets without active monitoring or managed power control. The design solves the common need for convenient outlet distribution directly at the equipment plane in IT racks and enclosures.
This unit accepts a NEMA 5-20P input plug and distributes to ten NEMA 5-20R receptacles, supporting a nominal output of 120 V AC and a load capacity of up to approximately 2.4 kVA. Maximum total current draw is rated at 20 A with a regulatory derated current of 16 A typical in North American installations. Cord length of about 3.66 m (12 ft) provides flexibility for reach to branch outlets.
Form factor is 1 U horizontal rack-mountable on standard 19″ rail systems. Included installation hardware allows straightforward placement without consuming usable equipment rack space beyond the 1 U footprint. The PDU's physical design and weight support deployment in intermediate distribution racks and data hall cabinets where basic distribution is adequate.
AP9563 lacks integrated metering, remote management, and surge suppression, making it suitable strictly for basic outlet distribution rather than managed power control or environmental feedback. Its rugged black housing and compliance with standard certifications meet typical indoor IT environment requirements.
In practice, AP9563 is deployed to feed server clusters, network switches, storage arrays, and auxiliary devices off a single mains circuit, balancing loads as permitted by rack power planning. It is not intended for use with high-current 208/230 V systems, outdoor installations, or environments requiring engineered surge protection.
Key Features
• 10 × NEMA 5-20R outlets for comprehensive rack power
• 20 A and 2.4 kVA load support on 120 V AC
• Horizontal 1 U rackmount form factor
• Integrated 3.66 m (12 ft) NEMA 5-20P power cord
• Basic PDU, no remote management or metering
Technical Specifications
| Specification | Value |
|---|
| Brand | APC by Schneider Electric |
| Part Number | AP9563 |
| Product Type | Basic Rack PDU, 1 U, 10-Outlet |
| Input Connector | NEMA 5-20P male |
| Output Connectors | 10 × NEMA 5-20R |
| Nominal Voltage | 120 V AC |
| Maximum Current | 20 A |
| Regulatory Derated Current (NA) | 16 A |
| Load Capacity | ~2.4 kVA |
| Cord Length | 3.66 m (12 ft) |
| Rack Mount | 1 U horizontal |
| Dimensions (W×D×H) | ~447 × 57 × 44 mm |
| Weight | ~2.5 kg |
| Operating Temp | -5 °C to 45 °C |
| Storage Temp | -25 °C to 65 °C |
| Certifications | UL/cUL, cUL Recognized, CSA, UL 1363, RoHS |
