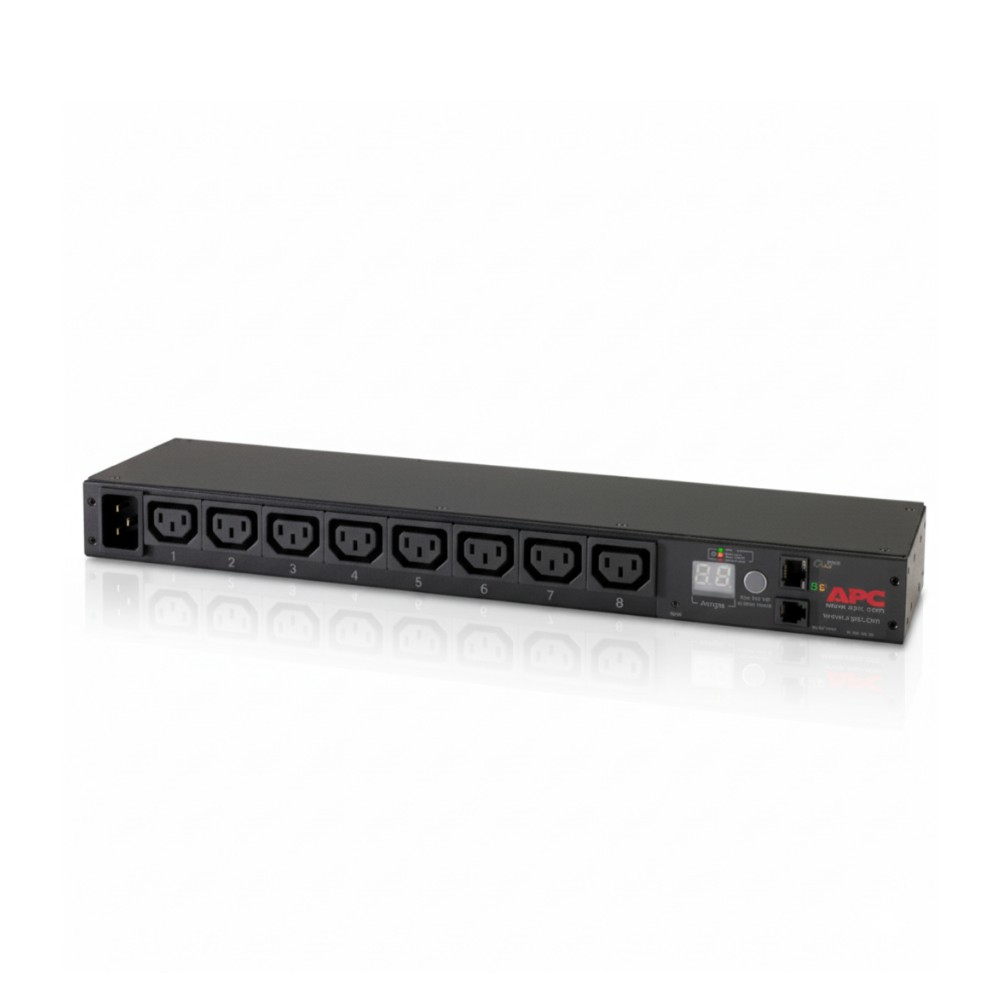

APC AP9559 Rack Basic 1U 16A 230V Power Distribution Unit (PDU) Reliable Rack Power View larger

APC AP9559 Basic Rack PDU 1U 12 Outlet 16 A

New

In Stock

1U basic rack power distribution unit
×




$322.00

  • New

Detailed Specifications

APC AP9559 – 12 Outlet Basic Rack PDU 16 A

Overview

The APC AP9559 is a basic rack‑mount power distribution unit (PDU) designed to deliver reliable AC power to multiple rack‑mount devices in data centers, server rooms, and network closets. It distributes up to 3.68 kVA (16 A) of power from a single feed to twelve outlets, supporting 208 V and 230 V environments.

Featuring ten IEC C13 and two IEC C19 outlets, the AP9559 enables versatile connectivity for servers, switches, storage, and other IT equipment. Its 1U horizontal form factor fits standard racks and provides convenient access to outlets close to connected loads.

The unit is intended for basic power distribution where advanced metering or switched control is not required. It is not suitable for environments needing outlet‑level switching, remote monitoring, or intelligent load management.

Key Features

  • 12 outlets (10 × C13, 2 × C19) for flexible device power
  • 1U rack‑mountable form factor saves space
  • Supports 16 A input and 3.68 kVA total load
  • IEC C20 plug with 2.5 m (8.2 ft) power cord
  • Horizontal or vertical mounting flexibility

Technical Specifications

SpecificationDetails
Brand APC
Part Number AP9559
Product Type Basic Rack PDU
Outlets 10 × IEC 60320 C13, 2 × IEC 60320 C19
Input Connector IEC 60320 C20
Rated Current 16 A
Load Capacity 3.68 kVA
Supported Voltages 120 V, 208 V, 230 V
Mounting 1U horizontal / vertical
Cable Length 2.5 m (8.2 ft)
Form Factor 1U rack mount
Operating Temp 0 °C to 45 °C
Operating Humidity Up to 95 %
Certifications CE, cUL, UL, VDE
Warranty 2 years
