Detailed Specifications

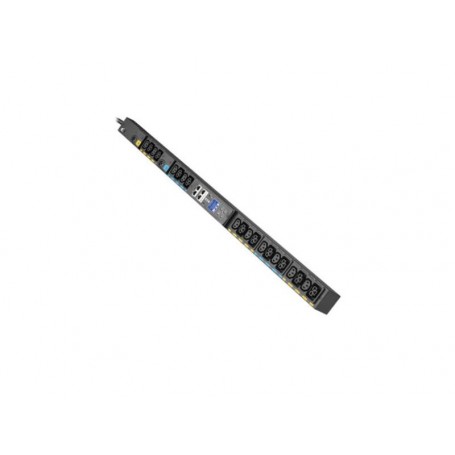

Eaton EVMAL630B Managed Rack PDU G4 0U 20-Outlet Compatible Brand Tripp Lite
Overview

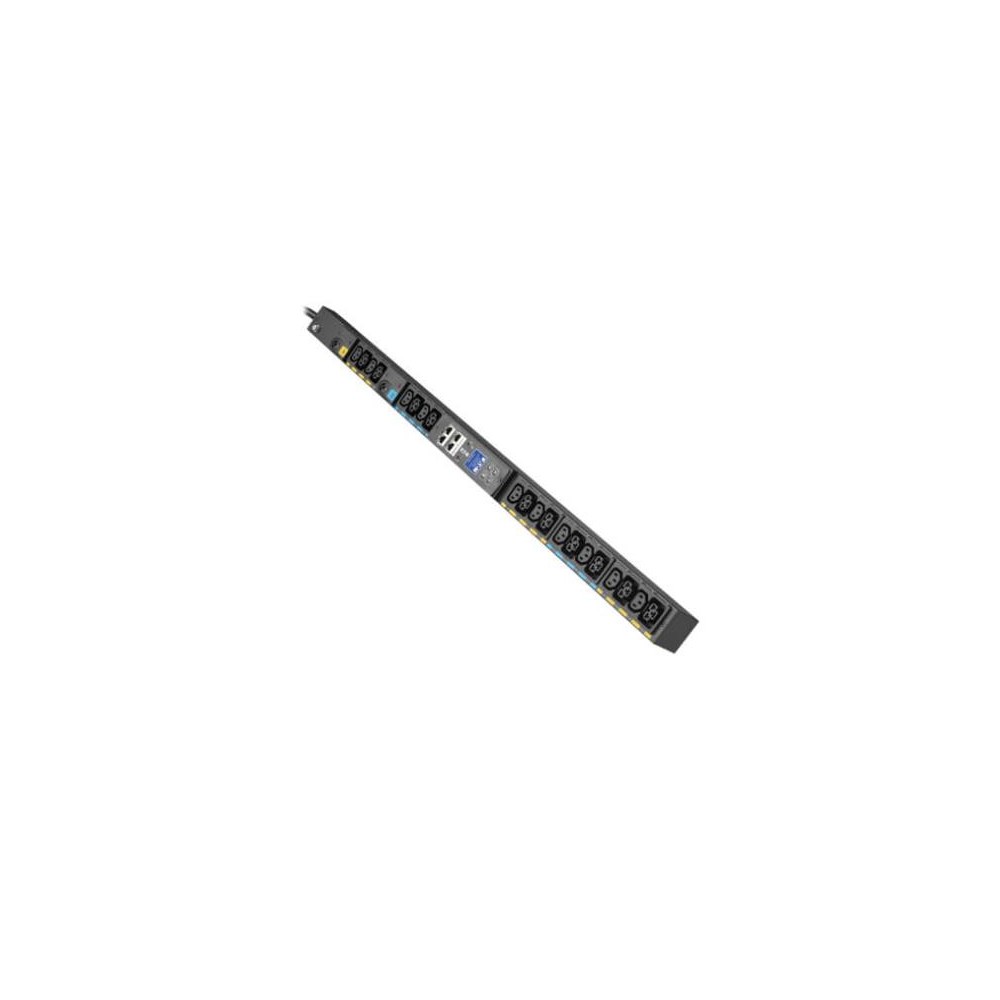

The EATON EVMAL630B is an Eaton Managed Rack PDU G4 designed for vertical 0U installation in data center and server-rack environments. It provides 20 outlets, consisting of 10 IEC 60320 C13 and 10 IEC 60320 C39 receptacles.
The PDU uses an L6-30P input connection, operates at 200–240V, and is rated for 24A with a 5.8kW power rating. It provides input and outlet-level current, power and energy metering, as well as outlet switching and remote management capabilities.
Key Features
- Managed Rack PDU G4
- 0U vertical rack-mount design
- 20 total outlets
- 10 × IEC 60320 C13 outlets
- 10 × IEC 60320 C39 outlets
- 5.8kW power rating
- 200–240V input
- 24A rating
- NEMA L6-30P input plug
- 10-ft power cord
- Outlet-level switching
- Current, power and energy metering
- Branch-current monitoring
- Aluminum chassis with black finish
- Operating temperature from 0°C to 60°C
- Designed for data centers and server racks
Specifications
| Specification | Details |
|---|
| Manufacturer | EATON |
| Compatible Brand | Tripp Lite |
| Part Number | EVMAL630B |
| Product Type | Managed Rack PDU |
| Series | Rack PDU G4 |
| Form Factor | 0U Vertical |
| Phase | Single-Phase |
| Input Voltage | 200–240V |
| Nominal Input Voltage | 208V |
| Amperage Rating | 24A |
| Power Rating | 5.8kW |
| Input Connection | NEMA L6-30P |
| Power Cord Length | 10 ft |
| Total Outlets | 20 |
| C13 Outlets | 10 |
| C39 Outlets | 10 |
| Outlet Control | Yes |
| Input Metering | Current, Power and Energy |
| Outlet Metering | Current, Power and Energy |
| Branch Metering | Current |
| Mounting Direction | Vertical |
| Chassis Material | Aluminum |
| Chassis Color | Black |
