Detailed Specifications

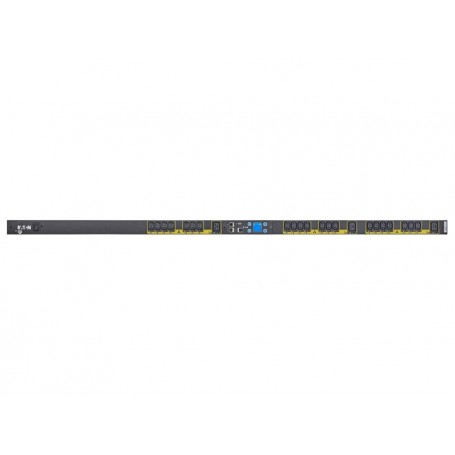

Eaton EMA115-10 - 0U Managed Rack PDU Compatible Tripp Lite
Overview :
The Eaton EMA115-10 is a 0U vertical managed rack PDU designed for data-center and server-rack power distribution. Eaton is the manufacturer, while Tripp Lite is the compatible/product brand associated with the model. It provides 24 total outlets: 21 IEC C13 and 3 IEC C19.
The PDU supports 100-240V input, 16A current and up to 3.84 kW, with a 10-ft power cord. Its managed design provides outlet control and network-based management for centralized rack power administration.
Key Features :
- 0U vertical rack-mount design
- 24 outlets: 21 × C13 and 3 × C19
- 100-240V input
- 16A rating
- 3.84 kW maximum power
- L6-20P and C20 input compatibility
- 10 ft. power cord
- Single-phase operation
- Managed/switched outlet control
- RS-232 interface
- 50-60 Hz operation
- Black finish
- 3-year warranty
Specifications :
| SpecificationDetails | |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | EMA115-10 |
| Product Type | Managed rack PDU |
| Series | ePDU G3 Managed |
| Form Factor | 0U Vertical |
| Phase | Single-phase |
| Input Voltage | 100-240V |
| Current Rating | 16A |
| Maximum Power | 3.84 kW |
| Input Connection | L6-20P / IEC C20 |
| Outlets | 21 × C13 + 3 × C19 |
| Cord Length | 10 ft. |
| Frequency | 50-60 Hz |
| Outlet Control | Yes |
| Serial Interface | RS-232 |
| Mounting | Vertical rack |
| Color | Black |
| Certification | UL Listed |
