Detailed Specifications

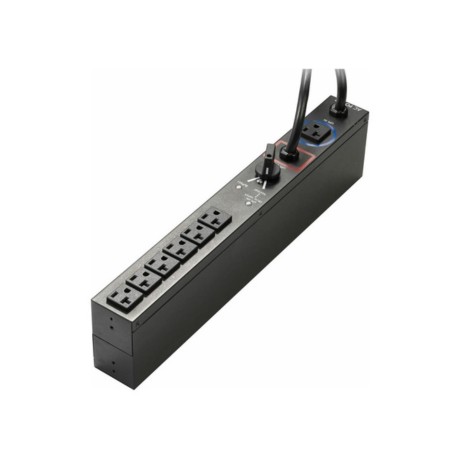

Eaton EHBPL2000R-PDU1U 2U HotSwap Maintenance Bypass PDU Compatible Tripp Lite
Overview :
The Eaton EHBPL2000R-PDU1U is a HotSwap Maintenance Bypass PDU designed for use with compatible UPS systems, including the Eaton 9PX2000RT. Eaton is the manufacturer/brand, while Tripp Lite is the compatible brand.
The unit provides 6 NEMA 5-20R output receptacles, a 5-20P input connection, an 8 ft power cord, and up to 1.92 kW of power capacity. It operates at 110-125V, 16A, single-phase, 50-60 Hz and allows connected equipment to remain powered while a compatible UPS is serviced or replaced.
Key Features :
- HotSwap Maintenance Bypass PDU
- 6 NEMA 5-20R output receptacles
- 5-20P input plug
- 1.92 kW maximum power capacity
- 16A current rating
- 110-125V input voltage
- 8 ft power cord
- Horizontal rack mounting
- 2U form factor
- Designed for compatible UPS systems
- Black finish
- UL Listed
- 3-year warranty
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Brand | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | EHBPL2000R-PDU1U |
| Product Type | HotSwap Maintenance Bypass PDU |
| Form Factor | 2U |
| Mounting Direction | Horizontal |
| Input Connection | NEMA 5-20P |
| Output Receptacles | 6 × NEMA 5-20R |
| Maximum Power | 1.92 kW |
| Current Rating | 16A |
| Input Voltage | 110-125V |
| Phase | Single-phase |
| Frequency | 50-60 Hz |
| Power Cord Length | 8 ft (2.44 m) |
| Circuit Breaker | None |
| Outlet Control | No |
| Color | Black |
