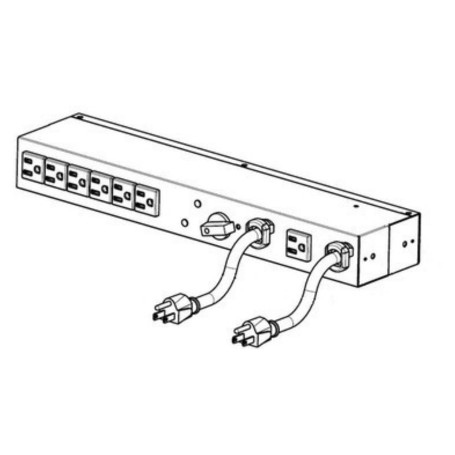

Eaton EHBPL3000R-PDU1U HotSwap Maintenance Bypass PDU View larger

Eaton EHBPL3000R-PDU1U HotSwap Maintenance Bypass PDU

EHBPL3000R-PDU1U

New

single-phase basic PDU Maintenance Bypass

×




Detailed Specifications

Eaton EHBPL3000R-PDU1U HotSwap Maintenance Bypass PDU

Overview :

The Eaton EHBPL3000R-PDU1U is a single-phase basic power distribution unit integrated with a hardwired HotSwap Maintenance Bypass (MBP) assembly. It is engineered for data center administrators and network engineers who must maintain absolute load uptime during infrastructure servicing. By providing a mechanical bypass circuit, this PDU permits the complete hot-swapping, repair, or upgrade of an online uninterruptible power supply (UPS) system without causing an operational drop to active server, storage, or networking loads.

Operating at a maximum load capacity of 2.88 kW and supporting 24 A continuously at 110–125 V AC, the unit separates power pathways to ensure continuous energy delivery from the utility grid when the primary UPS is decoupled. Input power is provisioned via a short 3.3-foot (1-meter) line cord capped with a NEMA L5-30P twist-lock plug, reducing cable congestion and ensuring secure link engagement inside densely configured enclosures. The downstream payload distribution features five standard NEMA 5-20R outlets split across independent circuit protection zones.

This PDU supports horizontal rack deployment across various multi-position orientations, including standard front-facing, rear-facing, or side-mount attachment directly to server cabinet rails or compatible UPS chassis modules. It is explicitly tailored for runtime support of single-phase UPS systems matching the 3,000 VA capacity tier, such as the Eaton 9PX series (including 9PX3000RT and 9PX3000RTN). Do NOT deploy this module in high-density installations running 208V/240V configurations or alongside active loads that exceed its strict 24 A operating limit.

Key Features :

  • Manual maintenance bypass enables zero-downtime UPS hot-swapping operations.

  • Secure NEMA L5-30P twist-lock input plug drops accidental detachment risk.

  • Twin 20 A branch circuit breakers protect downstream hardware groups.

  • Versatile 2U chassis accommodates horizontal, rear, or side rail mounting.

  • Short 3.3-foot input cable limits physical clutter within server racks.

Specifications :

AttributeVerified Value
BrandEaton
Part NumberEHBPL3000R-PDU1U
Product TypeMaintenance Bypass PDU
PDU TypeBasic / HotSwap MBP
Form Factor2U (Horizontal)
Input Voltage110–125 V AC
Amperage Rating24 A
Maximum Wattage2.88 kW
Input ConnectionNEMA L5-30P
Cord Length3.3 ft (1m)
Outlets(5) NEMA 5-20R
Circuit Breaker(2) 20 A
PhaseSingle-phase
Frequency Rating50/60 Hz
Operating Temperature0°C to 60°C
