Detailed Specifications

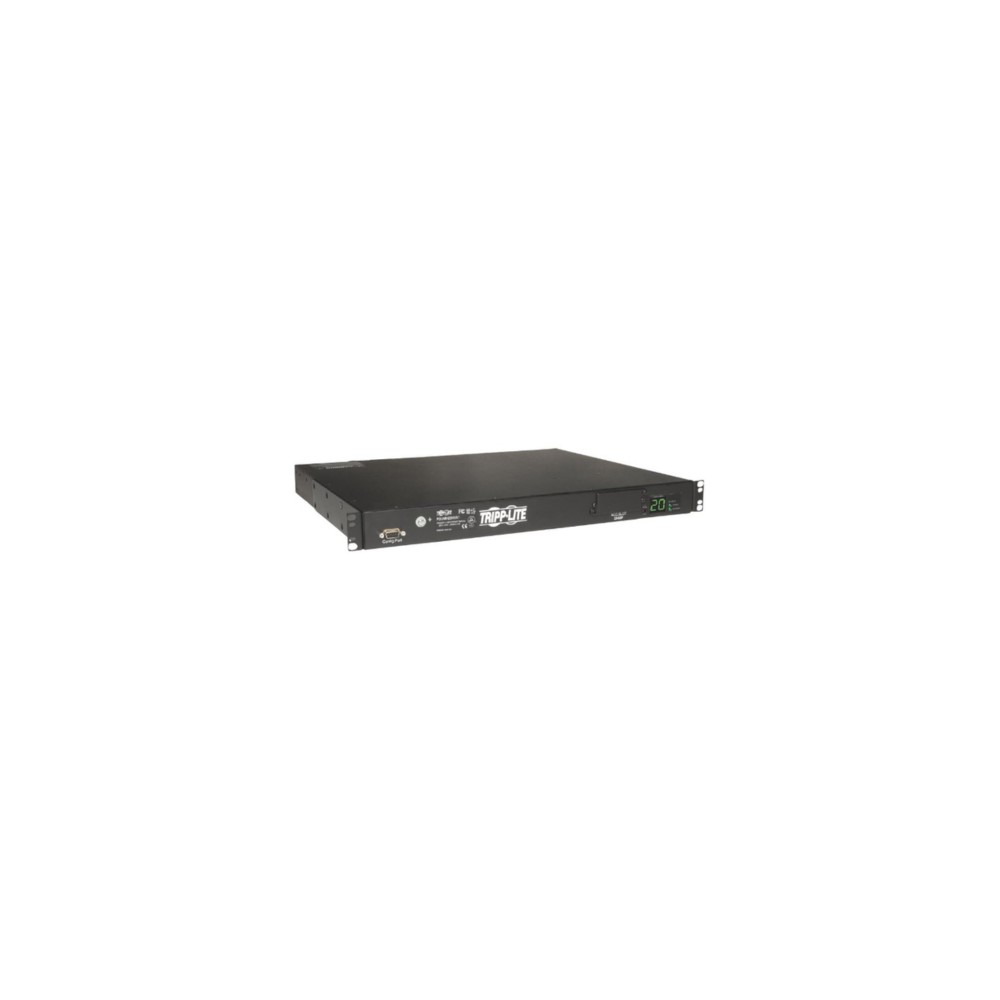

Eaton PDUMH20HVATS Single-Phase ATS Metered PDU
Overview :
The Eaton PDUMH20HVATS is a 1U horizontal single-phase Automatic Transfer Switch (ATS) local metered power distribution unit from the Tripp Lite series.Data center infrastructure engineers and system administrators deploy this specialized PDU to deliver high-availability redundant power to single-corded network devices.By integrating dual input capabilities with solid-state switching logic, it prevents service disruptions in critical computing hardware by maintaining active electrical paths during source dropouts.
The unit manages an aggregate output capacity of 3.8kW over a flexible 200-240V nominal range, with a maximum 20A input circuit rating de-rated by agencies to 16A continuous.Its rear deployment distribution footprint features ten network-grade outlets partitioned into eight IEC 320 C13 and two IEC 320 C19 receptacles.To eliminate high electrical inrush current events during initial startup sequencing, the internal programming enforces a factory-set 250-millisecond delay interval across outlets when first energized.
Constructed inside a rugged, 1U horizontal rackmount steel enclosure, the hardware utilizes twin 12-foot detachable C19-to-C20 input cables to connect concurrently into primary and secondary power grids, separate UPS units, or generators.The internal solid-state ATS circuit continuously evaluates power metrics, executing a seamless transfer from a failing primary line to the secondary circuit within 2 to 5 milliseconds.A front-facing two-digit LED ammeter provides local real-time telemetry on active total current loads.
The PDUMH20HVATS is fully Trade Agreements Act (TAA) compliant for federal GSA schedules and interfaces cleanly with standard 19-inch equipment racks.It includes plug-lock insert sleeves to mechanically anchor attached C14 and C20 device cords against accidental cable disconnects. This ATS PDU must not be deployed on 120V low-voltage utility lines, in environments demanding remote network interface switching controls, or with hardware arrays that exceed the strict 16A total continuous current ceiling.
Key Features :
Dual-input ATS architecture transfers power sources within 2-5 milliseconds
Local metered digital display delivers real-time total output current telemetry
Pre-programmed sequential startup prevents equipment inrush overloads
Ten high-retention outlets accommodate flexible standard C13 and C19 plugs
Ultra-compact 1U horizontal layout mounts cleanly inside shallow enclosures
Specifications :
| |
| Brand | Eaton |
| Part Number | PDUMH20HVATS |
| Product Type | ATS Local Metered PDU |
| Phase | Single-Phase |
| Rack Height | 1U Horizontal |
| Maximum Input Current | 20A Max (Agency de-rated to 16A continuous) |
| Nominal Voltage Support | 200V / 208V / 220V / 230V / 240V AC |
| Frequency Compatibility | 50 / 60 Hz |
| Maximum Power Capacity | 3.84kW (240V) / 3.68kW (230V) / 3.33kW (208V) |
| Input Connections | (2) IEC-320 C20 Inlets (Primary and Secondary) |
| Included Cords | (2) Detachable C19 to C20 Power Cables, 12 ft. (3.66 m) |
| Total Outlets | 10 Outlets |
| Outlet Receptacle Breakdown | (8) IEC-320 C13 / (2) IEC-320 C19 |
| Source Switching Time | 2 to 5 Milliseconds |
| Diagnostic Indicators | 2 Input Power Status LEDs, Digital Ammeter |
| Structure Material | Heavy-Duty Steel Chassis |
| Product Compliance | RoHS, Trade Agreements Act (TAA) Compliant |
| Safety Certifications | UL 60950-1, CAN/CSA-C22.2, CE, FCC Part 15 Class A |
