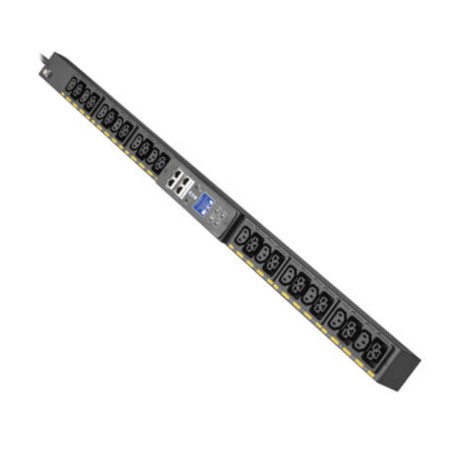

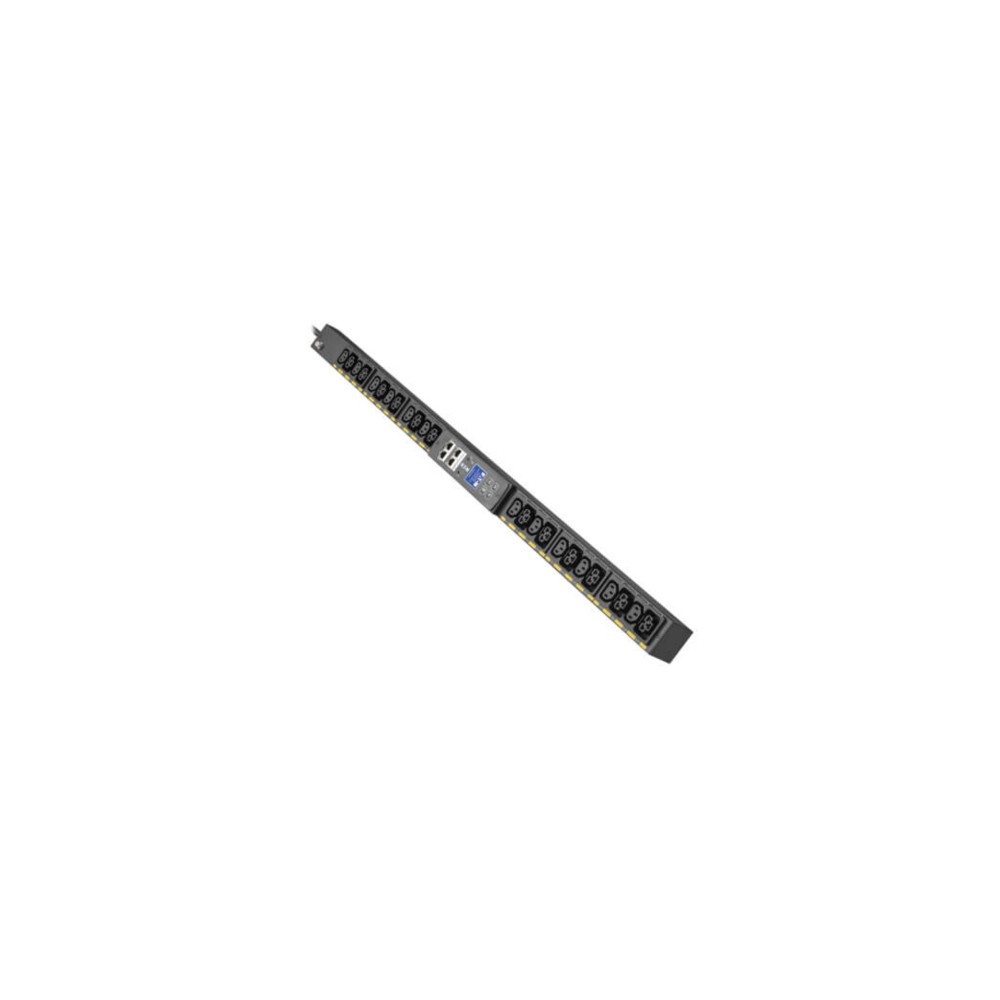

Eaton EVMAL620A single phase managed rack PDU

Eaton EVMAL620A single phase managed rack PDU

Overview

The Eaton EVMAL620A is a G4-generation single-phase managed rack power distribution unit designed for large-scale distributed IT infrastructure, colocation server environments, and enterprise data centers. It gives system operators comprehensive control over computing enclosures by providing real-time electrical telemetry combined with automated management capabilities. This hardware directly resolves the continuous operational liabilities of unauthorized outlet configurations, device overloads, and unexpected down-time by allowing isolated outlet reboots without visiting the site.

On a technical level, this unit accepts an input voltage envelope spanning 100V to 240V, supporting a continuous current rating of 16A alongside an aggregate power capacity of 3.8kW. The power terminal interface contains 24 total high-retention outlets, divided evenly into 12 standard C13 outlets and 12 flexible C39 combo outlets that natively fit both C14 and C20 equipment connections. System management, control logic, and diagnostic tracking are anchored by an embedded, hot-swappable Gigabit Network Module (GNM) implementing independent switching, metering, and threshold logging at every individual socket.

This PDU uses a 0U vertical orientation, allowing fast, toolless installation along the rear hardware mounting rails of 42U or higher standard enclosures using factory-installed aluminum shoulder buttons. This thin two-inch wide profile preserves crucial rack volume for multi-node servers while maintaining optimized cross-cabinet exhaust airflow. The device features premium zero-trust digital infrastructure protections, utilizing chain-of-trust encryption and secure boot logic validated under strict cybersecurity guidelines. Do not deploy this hardware in three-phase electrical delivery frameworks or in architectures exceeding its 16A ceiling.

Key Features

• Individual outlet-level switching enables precise remote power cycling

• Integrated Gigabit Network Module delivers certified zero-trust protection

• Twelve multi-use C39 combo outlets accept C14 and C20 plugs interchangeably

• Front panel pixel LCD display allows on-site monitoring and manual configuration

• Low-profile 0U chassis installs toolless to maximize server rail space
