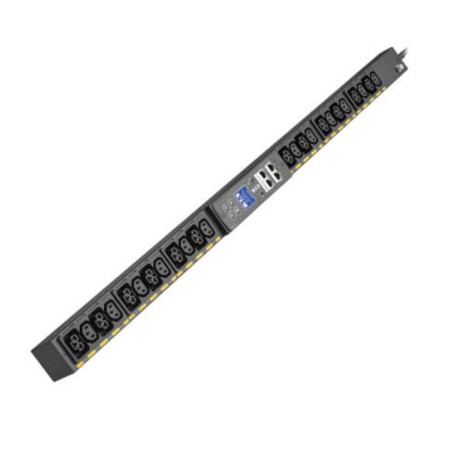

Eaton EVMA2120A 3 Phase Managed Rack PDU G4 120 208V 24 Outlets

Eaton EVMA2120A 3 Phase Managed Rack PDU G4 120 208V 24 Outlets

Overview

The Eaton EVMA2120A is a G4-generation three-phase managed rack power distribution unit built for scalable enterprise data centers, colocation sites, and high-density distributed IT facilities. Designed to deliver comprehensive control over rack infrastructure elements, this unit allows data center administrators to perform remote reboot operations and streamline device onboarding. It addresses the recurring operational challenges of unauthorized outlet utilization, circuit overloads, and the costly requirement for on-site engineering dispatches to execute hard hardware resets.

Operating on a 120/208V three-phase configuration, the PDU features a continuous current capacity of 16A per phase, generating a cumulative power threshold of 5.8kW. The terminal plane features 24 power receptacles bifurcated equally into 12 standard C13 outlets and 12 flexible, high-retention C39 combo outlets capable of handling C14 or C20 source connectors natively. Hardware interactions are processed by an integrated, hot-swappable Gigabit Network Module (GNM) implementing real-time metering, tracking, and independent switching controls directly at the individual outlet tier.

This vertical 0U chassis maps cleanly alongside vertical mounting channels in standardized server cabinets, saving functional layout space for active server nodes and network arrays. The firmware infrastructure provides zero-trust security profiles through dual UL 2900-1 and IEC 62443-4-2 cybersecurity validation stamps to prevent perimeter network entry. Do not deploy this hardware in single-phase power distribution topologies or infrastructure environments that require a load profile capacity exceeding 5.8kW.

Key Features

• Individual outlet-level switching allows remote power control and cycling

• Integrated Gigabit Network Module prevents unauthorized system-level intrusion

• Twelve dual-purpose C39 combo outlets fit C14 and C20 power plugs natively

• Lightweight 0U aluminum chassis installs vertically using toolless hardware buttons

• Color-coded load banks isolate power phases to improve equipment balancing
