Detailed Specifications

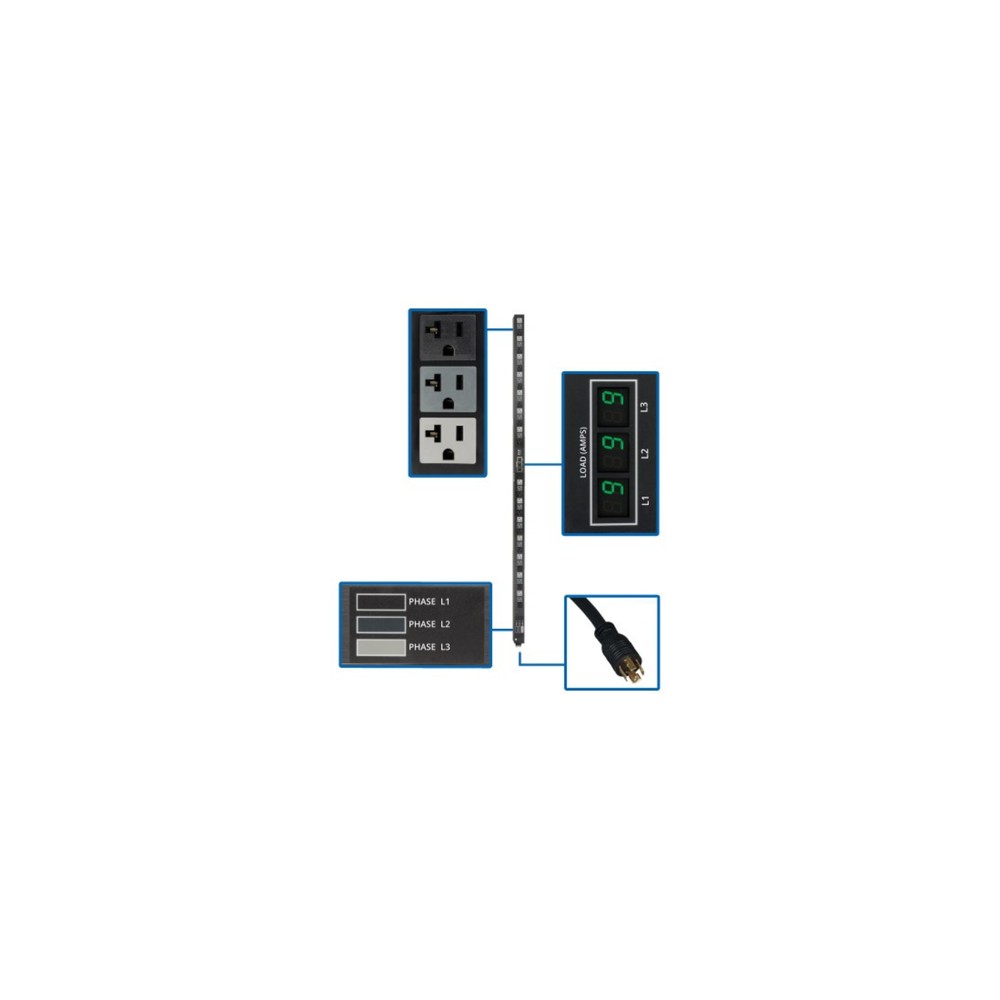

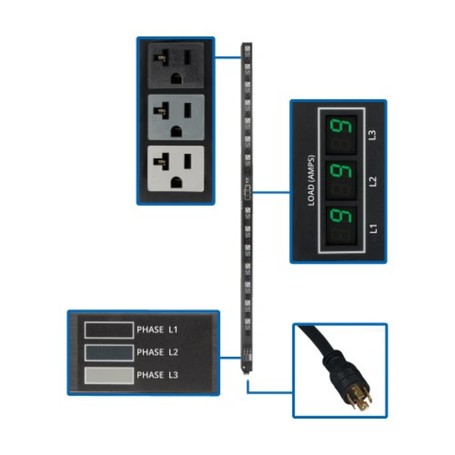

Eaton PDU3MV6L2120LV 5 7kW 3 phase local metered 0U vertical rack PDU
Overview
The Eaton Tripp Lite Series PDU3MV6L2120LV is a 5.7kW 3-phase metered power distribution unit engineered for high-density server racks, telecom systems, and enterprise data centers.This rack-level infrastructure asset converts a 208V 3-phase input into 120V single-phase output, allowing network engineers to distribute standard low-voltage power across multiple server blades, switches, and network storage arrays from a higher-voltage feed.Procurement teams deploy this hardware to balance workloads across power segments and maximize circuit stability.
The unit integrates three dedicated digital current meters on its front face to provide real-time reporting of active current levels in amps across each output phase.This local visibility assists on-site technicians in performing precise phase balancing during live gear additions, avoiding systemic load imbalances and upstream circuit breaker trips.The distribution field consists of 42 color-coded and labeled outlets separated into three distinct single-phase load banks for immediate identification.
Designed for zero-U vertical installation, the PDU features a 70-inch all-metal chassis equipped with factory-installed toolless button mounts for rapid attachment along rear cabinet channels.An attached 6-foot cord with a NEMA L21-20P twist-lock plug connects directly to an industrial facility supply or data center UPS system. Do not deploy this distribution unit in facility environments configured exclusively for single-phase electrical utility inputs, as the 3-phase internal design requires matching three-phase circuitry to function.
Key Features
Built-in trio of digital ammeters monitors per-phase electrical loads continuously.
Large 42-outlet matrix delivers centralized 120V distribution to high-density racks.
Attached NEMA L21-20P input plug secures connections to 208V 3-phase sources.
Color-coded load banks distinguish separate phases to simplify rack provisioning.
Pre-installed button mounts provide rapid toolless placement in 0U vertical channels.
Specifications
| Parameter | Detail |
| Brand | Eaton |
| Part Number | PDU3MV6L2120LV |
| Product Type | 3-Phase Metered PDU |
| Power Capacity (kW) | 5.7 kW |
| Nominal Input Phase | 3-Phase |
| Nominal Input Voltage | 208V AC |
| Nominal Output Voltage | 120V AC |
| Maximum Input Current | 16A continuous per phase |
| Input Plug Type | NEMA L21-20P (with 6 ft cord) |
| Total Outlets | 42 |
| Output Receptacle Type | NEMA 5-15/20R |
| Form Factor | 0U Vertical |
| Material of Construction | Heavy-duty metal chassis |
| Monitoring Interface | Three individual digital LCD current displays |
| Compliance Standards | Tested to UL 62368-1, NOM, RETIE, RoHS, TAA Compliant |
