Detailed Specifications

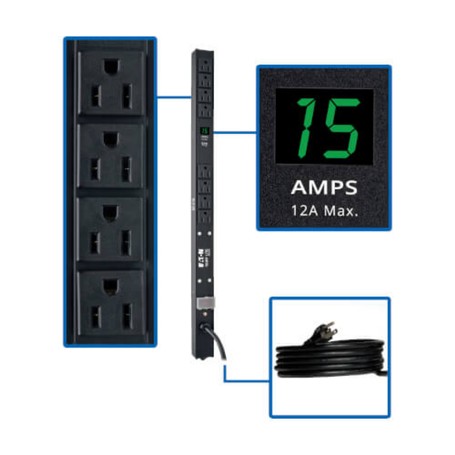

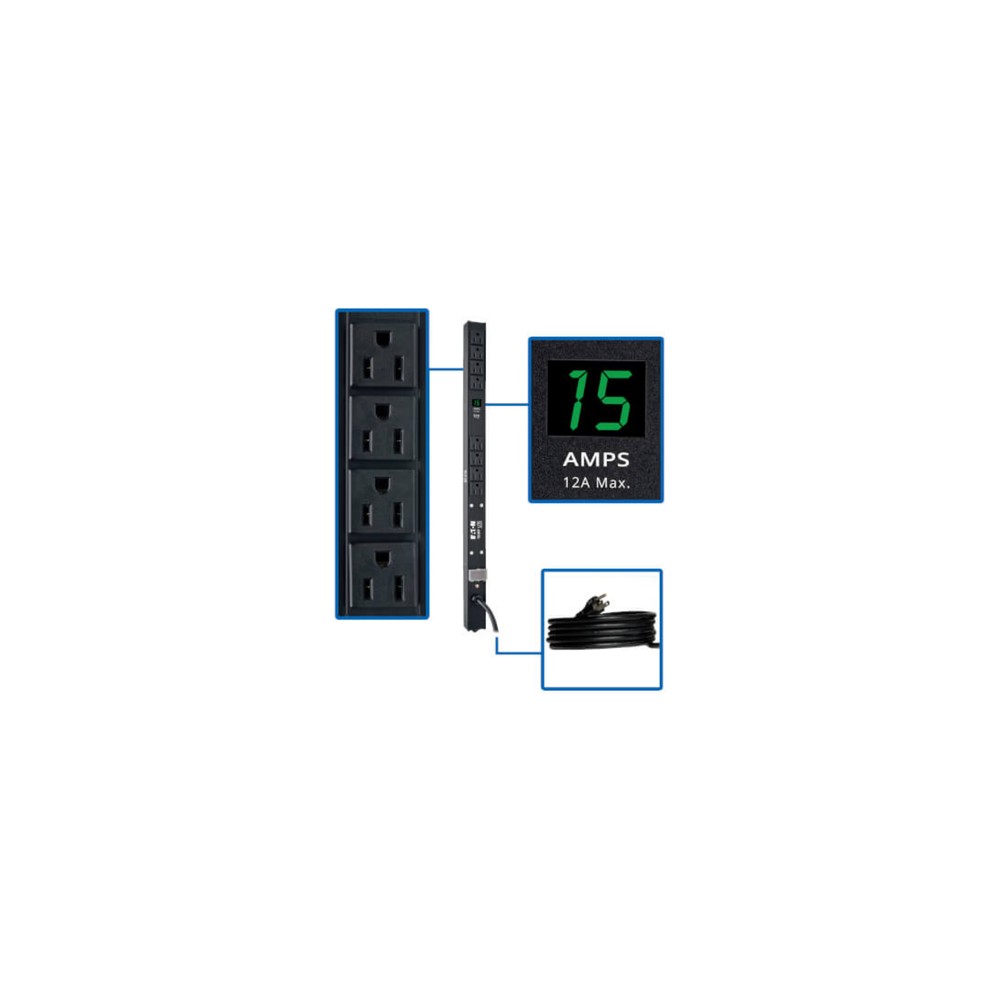

Eaton PDUMV15-24 Vertical single phase metered rack PDU
Overview
The Eaton PDUMV15-24 is a single-phase metered rack PDU designed for high-density IT environments requiring reliable power distribution with local load monitoring. It delivers power to rack-mounted equipment while helping administrators balance loads and prevent circuit overload conditions.
This 120V vertical PDU supports a 15A input current and provides 24 NEMA 5-15/20R output receptacles for mixed IT equipment connectivity. An integrated digital current meter displays real-time load levels, enabling operators to monitor power utilization directly at the rack. The unit includes a NEMA 5-15P input plug and a 15-foot power cord for flexible rack installation.
The 0U vertical mounting format preserves rack space for servers, switches, storage systems, and telecom equipment. It is commonly deployed in enterprise racks, branch IT closets, edge infrastructure, and colocation environments where space efficiency and simplified cable management are priorities. Toolless mounting support enables rapid installation in compatible rack enclosures.
The PDUMV15-24 is compatible with standard 120V rack equipment using NEMA 5-15P or 5-20P plugs. It is not intended for switched outlet management, remote network monitoring, or three-phase power distribution applications.
Key Features
- Twenty-four outlets support dense rack deployments
- Digital load meter helps prevent circuit overloads
- 0U vertical mounting preserves rack equipment space
- Mixed 5-15/20R outlets improve device compatibility
- Long input cord supports flexible rack positioning
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | PDUMV15-24 |
| Product Type | Metered Vertical PDU |
| PDU Type | Metered |
| Phase | Single Phase |
| Input Voltage | 100-127V AC |
| Output Voltage | 120V AC |
| Input Current | 15A |
| Power Capacity | 1.44 kW |
| Input Connector | NEMA 5-15P |
| Output Receptacles | 24 × NEMA 5-15/20R |
| Form Factor | 0U Vertical |
| Mounting Type | Rack-mountable |
| Cord Length | 15 ft |
| Display Type | Digital Load Meter |
