Detailed Specifications

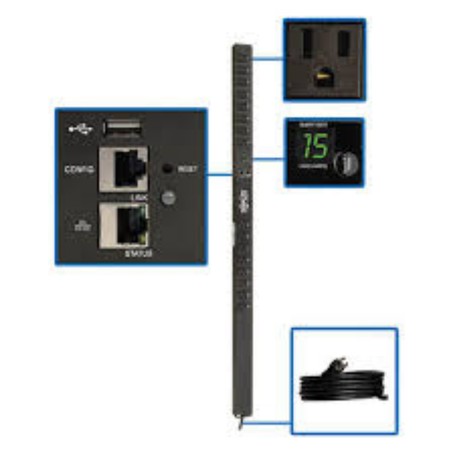

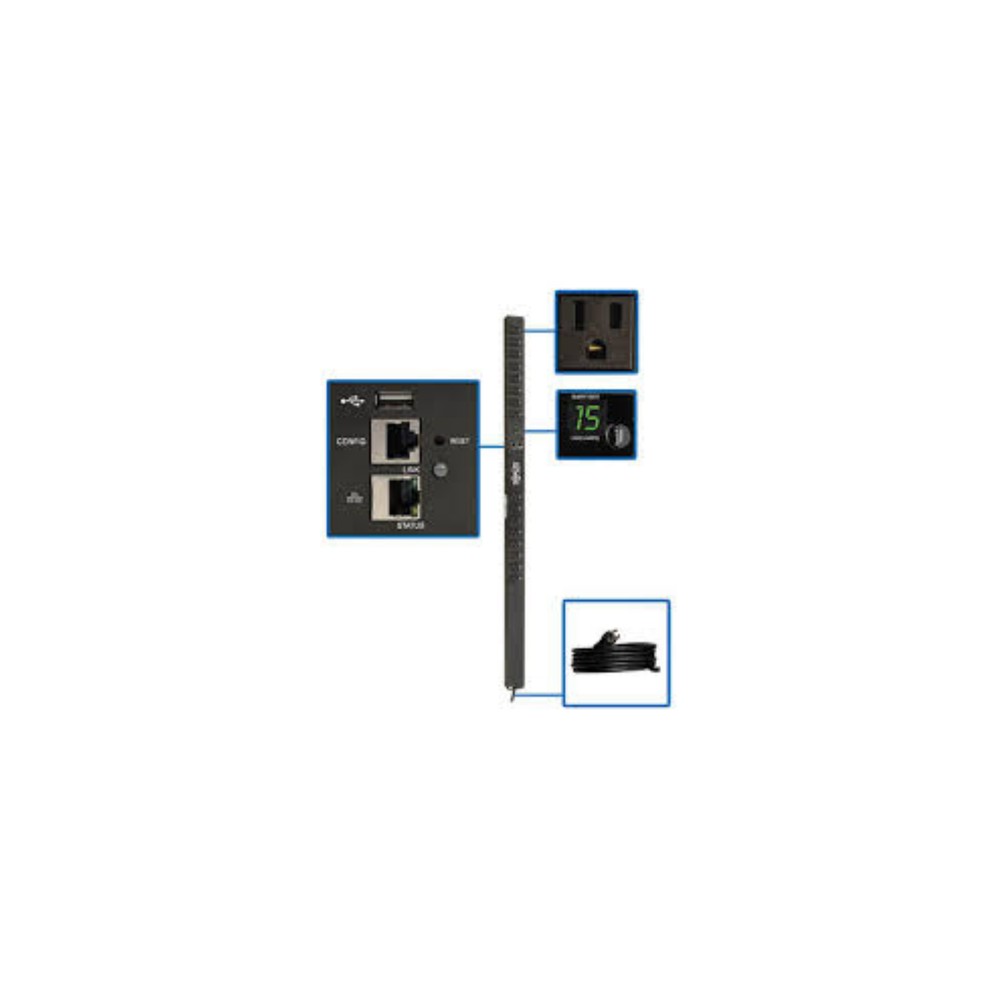

Eaton PDUMNV15LX Vertical single-phase monitored rack PDU
Overview
The Eaton PDUMNV15LX is a single-phase monitored rack PDU designed for real-time power monitoring in enterprise IT, edge computing, and industrial infrastructure environments. It provides remote visibility into voltage, frequency, and load conditions through an integrated LX Platform network interface.
This 120V vertical PDU delivers up to 1.44 kW output capacity with 16 NEMA 5-15R outlets and a NEMA 5-15P input connection. The integrated network management platform supports SNMP, SSH, HTTPS, and remote environmental monitoring for centralized infrastructure management. A built-in digital ammeter enables local load monitoring to help prevent circuit overload conditions.
The unit installs in 0U vertical rack space using toolless mounting buttons or rack brackets, making it suitable for high-density cabinets, branch deployments, telecom racks, and distributed edge sites where rack space optimization is critical. Included cord retention brackets reduce accidental cable disconnections during maintenance activity.
The PDUMNV15LX is compatible with standard 120V rack equipment, UPS systems, and Eaton environmental monitoring accessories. It is not intended for switched outlet control applications or high-capacity three-phase power distribution deployments.
Key Features
- Remote power monitoring through LX interface
- Sixteen NEMA 5-15R outlets for rack equipment
- 0U vertical mounting saves rack installation space
- Digital ammeter supports overload prevention
- SNMP and SSH support for remote management
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | PDUMNV15LX |
| Product Type | Monitored PDU |
| PDU Type | Monitored |
| Phase | Single Phase |
| Input Voltage | 100-127V AC |
| Output Voltage | 120V AC |
| Power Capacity | 1.44 kW |
| Input Current | 15A |
| Input Connector | NEMA 5-15P |
| Output Receptacles | 16 × NEMA 5-15R |
| Form Factor | 0U Vertical |
| Mounting Type | Rack-mountable |
| Cord Length | 10 ft |
| Network Interfaces | SNMP, SSH, HTTPS, Telnet |
