Detailed Specifications

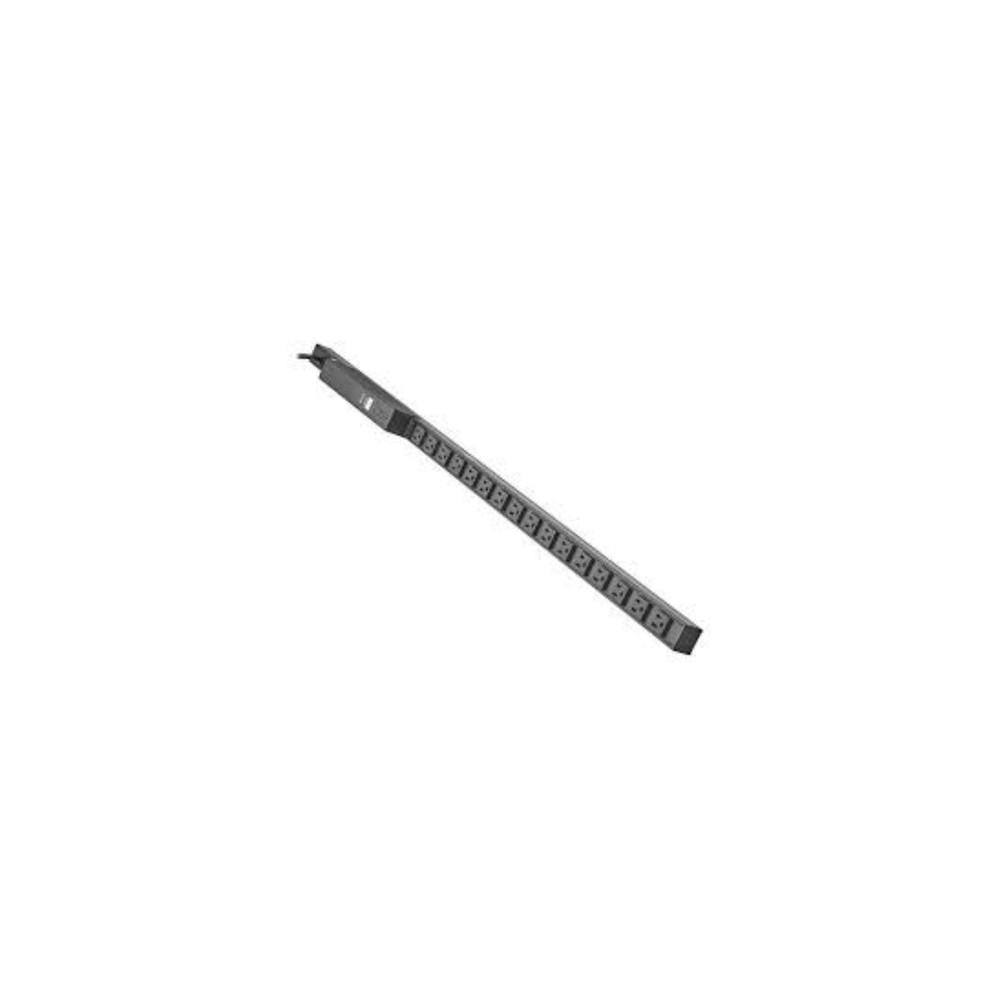

Eaton PDUMV15 Single Phase Metered 0U Vertical PDU
Overview
The Eaton Tripp Lite Series PDUMV15 is a 0U vertical rackmount single-phase metered power distribution unit (rPDU) engineered to supply high-density power to network server enclosures, telecommunications hubs, and data center structures.This 48-inch distribution strip allows facility managers to optimize interior rack layouts by supplying multi-outlet AC delivery without consuming critical rack units needed for compute hardware.
Operating at 120V nominal input, the PDUMV15 features an integrated, front-facing two-digit LCD ammeter.This local interface provides real-time tracking of the combined aggregate current draw in amps, allowing field technicians to audit overall energy consumption before expanding structural hardware configurations.Power distribution is routed across 16 NEMA 5-15R receptacles through a long, 15-foot attached power cable terminated with a standard NEMA 5-15P straight-blade input plug.
The system is constructed with an unfiltered electrical pass-through architecture, making it the preferred deployment option for distributing alternate waveform or modified sine wave output from active enterprise UPS units and auxiliary generator networks.To mitigate accidental human-error outages during operational maintenance routines, the built-in 15A master circuit breaker and lighted power switch are shielded beneath a rugged, clear snap-lock protective cover.The unit supports immediate toolless vertical integration utilizing factory-installed rear mounting buttons compatible with standard 19-inch EIA enclosures.
Key Features
Two-digit digital ammeter details aggregate output load to prevent structural circuit overloading.
48-inch 0U space-saving architecture integrates into narrow enclosures without consuming rack spaces.
16 distributed NEMA 5-15R receptacles support versatile multi-device hardware connectivity.
Unfiltered electrical pass-through paths match alternate waveform UPS and generator lines.
Integrated snap-lock safety cover shields the master circuit breaker from accidental human touch.
Specifications
| Attribute | Specification |
| Brand | Eaton |
| Part Number | PDUMV15 |
| Product Type | Metered Power Distribution Unit (PDU) |
| Output Capacity (Watts) | 1.44 kW |
| Nominal Input Voltage | 120V AC |
| Nominal Output Voltage | 120V AC |
| Amperage Rating | 15A Maximum (Agency de-rated to 12A continuous) |
| Input Phase | Single-Phase |
| Input Connection Plug | NEMA 5-15P |
| Input Cord Length | 15 ft. (4.57 m) |
| Output Receptacles | (16) NEMA 5-15R |
| Overload Protection | 15A Circuit Breaker |
| Local Current Meter | Two-Digit LED Display (Amps) |
| Control Switches | Lighted On/Off Switch with Safety Cover |
| Housing Material | Extruded Aluminum / Metal |
| Form Factor | 0U Vertical Rackmount |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Operating Humidity | 5% to 95% RH, Non-Condensing |
| Compliance Certifications | UL 60950-1, CAN/CSA-C22.2 No. 60950-1-03, RoHS |
