Detailed Specifications

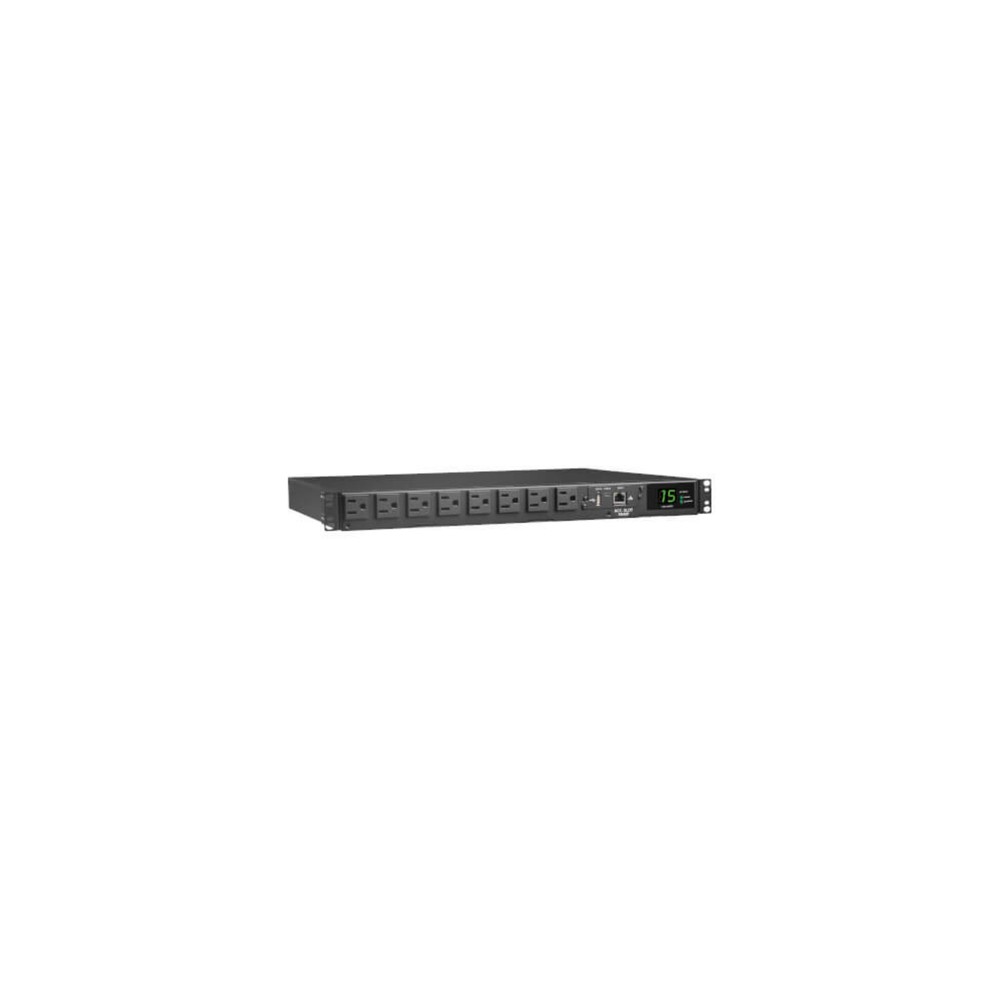

Eaton PDUMNH15AT1 Single-Phase ATS Monitored 1U PDU
Overview
The Eaton Tripp Lite Series PDUMNH15AT1 is a 1U horizontal rackmount single-phase automatic transfer switching (ATS) and monitored power distribution unit (PDU). Designed for high-availability network IT infrastructure, corporate server rooms, edge computing configurations, and telecom nests, this hardware introduces power redundancy to network devices outfitted with only a single corded internal power supply.
The structural architecture integrates a heavy-duty ATS internal processor that evaluates the electrical quality of two separate input loops. Dual 12-foot power cords with standard NEMA 5-15P inputs connect simultaneously to separate primary and secondary grid sources, separate UPS backups, or matching backup generator ports.If the primary power circuit experiences a voltage dropout, line fault, or absolute failure, the digital switching controller reroutes the load to the secondary feed within an immediate 2 to 7 milliseconds. This speed ensures continuous, zero-lag computing performance without system resets.
Advanced data monitoring is driven by a built-in local digital ammeter reporting immediate combined aggregate loading metrics in real time.For remote deployments, the unit comes equipped with a pre-installed, Java-free HTML5 LX Platform network interface module. This integrated network architecture enables remote system administrators to monitor overall power stats, review load limits, check source frequencies, or set customized email alerts across standard enterprise networks utilizing SNMPv1/v2/v3, HTTP, HTTPS, SSH, and Telnet configurations.
Key Features
High-speed automatic transfer switch alternates power feeds in less than 7 milliseconds.
Pre-installed LX Platform web interface permits secure browser-based remote power tracking.
Dual 12-foot attached input cables provide excellent routing depth across network enclosures.
Front-panel digital LCD ammeter details total output load to prevent structural overload.
Federal Trade Agreements Act (TAA) compliance matches strict government procurement guidelines.
Specifications
| Attribute | Specification |
| Brand | Eaton |
| Part Number | PDUMNH15AT1 |
| Product Type | Automatic Transfer Switch (ATS) Monitored PDU |
| Output Capacity (Watts) | 1.44 kW (120V), 1.52 kW (127V), 1.2 kW (100V) |
| Nominal Input Voltage | 100V / 120V / 127V AC |
| Nominal Output Voltage | 100V / 120V / 127V AC |
| Amperage Rating | 15A Max (Agency de-rated to 12A continuous) |
| Input Phase | Single-Phase |
| Input Connection Plugs | (2) NEMA 5-15P |
| Input Cord Length | 12 ft. (3.66 m) |
| Output Receptacles | (8) NEMA 5-15R |
| Transfer Time | 2-7 ms |
| Local Interface Ports | Micro-USB Console, RJ45 Ethernet, USB-A Peripheral |
| Network Card Architecture | Pre-installed LX Platform HTML5 Interface |
| Enclosure Construction | Rugged Metal |
| Form Factor | 1U Horizontal Rackmount |
| Minimum Required Rack Depth | 17.5 inches (44.45 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Operating Humidity | 5% to 95% RH, Non-Condensing |
| Compliance Certifications | UL 62368-1, CSA (Canada), NOM (Mexico), FCC Class A, RoHS, TAA |
