Detailed Specifications

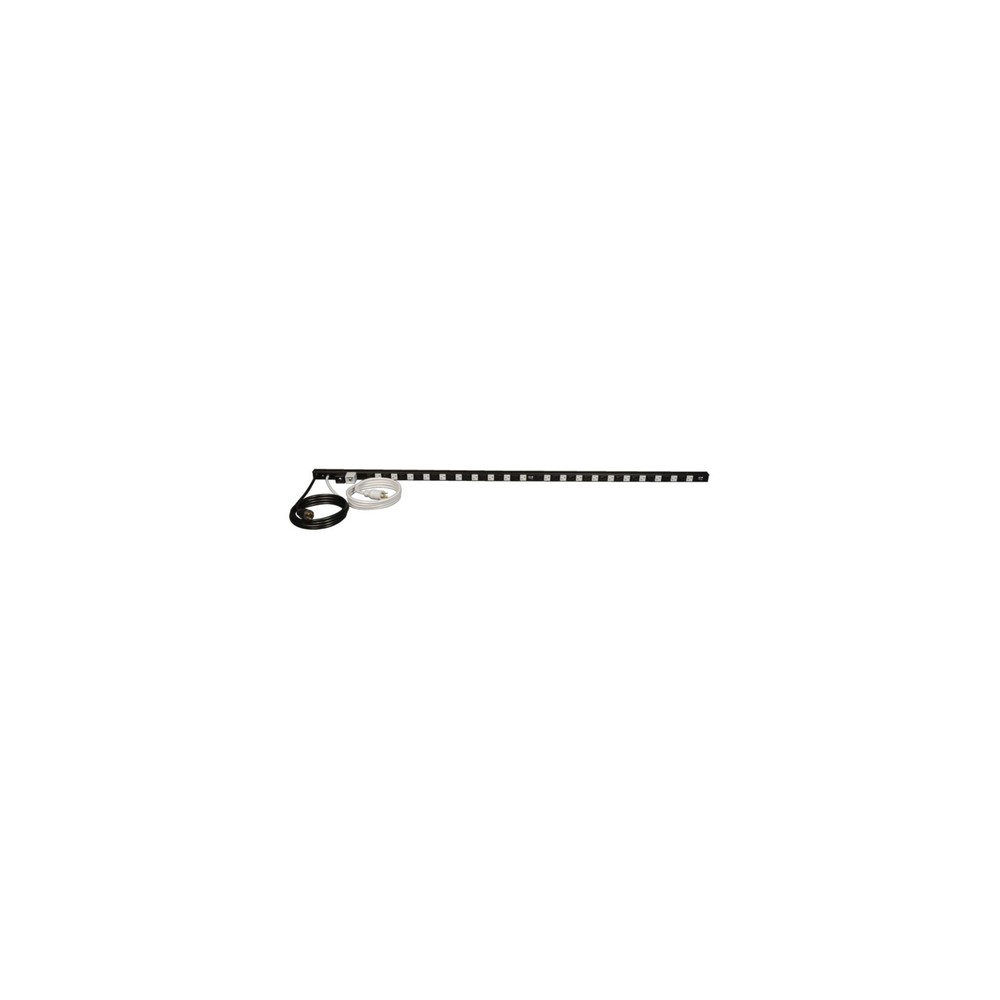

Eaton PDU40TDUAL Single-Phase Dual-Circuit Basic PDU
Overview
The Eaton Tripp Lite Series PDU40TDUAL is a 0U vertical rackmount single-phase dual-circuit basic power distribution unit (rPDU) engineered to supply high-density power to mission-critical infrastructure.Datacenter engineers and procurement teams deploy this space-saving 70-inch structural strip to deliver continuous AC power to enterprise servers, storage arrays, and network networking components outfitted with dual redundant power supplies.
Operating as two independent 20A PDUs isolated within a single aluminum chassis, the PDU40TDUAL provides a combined capacity of 3.8kW at 120V nominal input. The structural architecture splits its 40 NEMA 5-15/20R outlets evenly into two distinct power circuits of 20 outlets each. To streamline system balancing and source tracking inside dense enclosures, each internal circuit×including its corresponding 10-foot input power cable, internal 20A magnetic circuit breaker, and outlet housing bank×is completely color-coded in black or gray.
The mechanical interface is intentionally built with a switchless configuration to eliminate the risk of accidental human-error shutdowns during routine server maintenance.The unit features dual attached 10-foot power cables terminated with locking NEMA L5-20P input plugs. Two included NEMA L5-20R to NEMA 5-20P plug adapters are packed with the hardware to ensure deployment flexibility across both locking and standard straight-blade utility grid or UPS receptacles. It supports toolless button-mount vertical integration within standard EIA-compliant 19-inch equipment racks.
Key Features
Dual isolated 20A circuits function as two distinct PDUs inside one unified 0U chassis.
Color-coded black and gray infrastructure components permit effortless redundant loop tracking.
40 combination NEMA 5-15/20R outlets support flexible cross-generational server hardware sizing.
Switchless power delivery paths mitigate accidental contact or human-error downtime failures.
Factory-included straight-blade adapters ease field cross-compatibility adjustments at the rack.
Specifications
| Attribute | Specification |
| Brand | Eaton |
| Part Number | PDU40TDUAL |
| Product Type | Basic Power Distribution Unit (PDU) |
| Output Capacity (Watts) | 3.8 kW Total (1.9 kW Max per circuit at 120V) |
| Nominal Input Voltage | 120V AC (Supports 100V and 127V options) |
| Nominal Output Voltage | 120V AC |
| Maximum Input Amps | 40A Total (20A maximum per circuit de-rated to 16A continuous) |
| Input Phase | Single-Phase |
| Input Connection Type | (2) NEMA L5-20P (With 2 included NEMA 5-20P adapters) |
| Input Cord Length | 10 ft. (3.05 m) |
| Output Receptacles | (40) NEMA 5-15/20R (20 Black / 20 Gray) |
| Overload Protection | Two 20A Circuit Breakers (1 Black / 1 Gray) |
| Frequency Compatibility | 50 / 60 Hz |
| Housing Material | Aluminum / Metal |
| Form Factor | 0U Vertical Rackmount |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Operating Humidity | 5% to 95% RH, Non-Condensing |
| Compliance Certifications | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, NOM, RoHS |
