Detailed Specifications

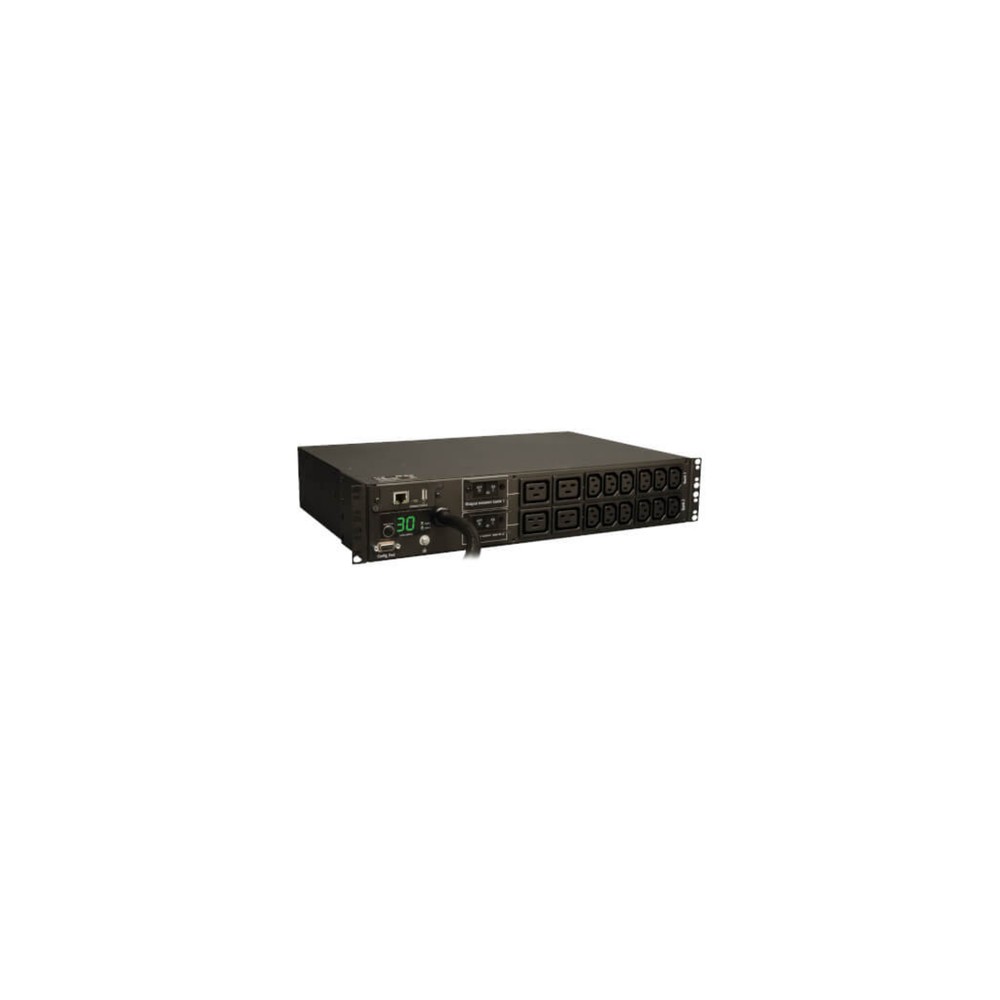

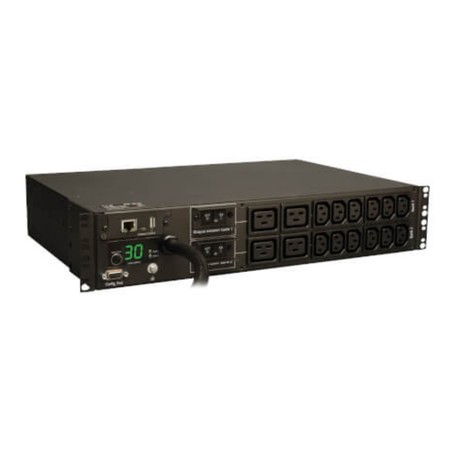

Eaton PDUMNH30HV Monitored Power Distribution Unit PDU
Overview
The Eaton Tripp Lite Series PDUMNH30HV is a 2U horizontal rackmount single-phase monitored power distribution unit (PDU) engineered for high-density network environments, server rooms, and enterprise data centers. It delivers robust 5.5kW power distribution at 230V (or 5kW at 208V) to downstream equipment from a single high-amperage circuit. Network engineers deploy this hardware to enable remote power monitoring and prevent infrastructure overloads without requiring physical presence on the data center floor.
The electrical design interfaces via an attached 12-foot (3.66-meter) power cord equipped with a locking NEMA L6-30P input plug.It divides 16 outlets×comprising 12 IEC-309 C13 and 4 C19 receptacles×into two distinct, separately breakered 20A loading segments. A built-in local digital LCD display reports real-time current metrics across individual banks or all outlets combined, allowing immediate validation of localized aggregate electrical draw before adding new computing hardware.
Remote management visibility is powered by the integrated, pre-installed Java-free HTML5 LX Platform network interface.This network card supports complete remote access for voltage, frequency, and load diagnostics via an array of enterprise-grade management systems, including SNMPv1/v2/v3, HTTP, HTTPS, SSH, and Telnet.To optimize in-rack environmental visibility, the integrated USB-A port acts as a physical host interface for optional monitoring add-ons, such as Envirosense2 temperature and humidity sensor modules.
Key Features
Embedded LX Platform card allows comprehensive web-based remote power tracking.
Digital front-panel ammeter displays real-time loading metrics across distinct banks.
Two independent 20A circuit breakers insulate systems from cascading overload faults.
Rugged all-metal 2U reversible housing fits versatile front- or rear-facing mounts.
Full TAA compliance fulfills standard municipal and federal government procurement mandates.
Specifications
| Attribute | Specification |
| Brand | Eaton |
| Part Number | PDUMNH30HV |
| Product Type | Monitored Power Distribution Unit (PDU) |
| Output Capacity (Watts) | 5.5 kW (230V), 5.0 kW (208V) |
| Nominal Input Voltage | 208V / 230V AC |
| Nominal Output Voltage | 208V / 230V AC |
| Maximum Input Amps | 30A Maximum (Agency de-rated to 24A continuous) |
| Input Connection Type | NEMA L6-30P (12 ft. Cord) |
| Input Phase | Single-Phase |
| Output Receptacles | (12) IEC-320 C13; (4) IEC-320 C19 |
| Overload Protection | Two 20A Circuit Breakers (Protecting 8 outlets each) |
| Output Amp Limits | 16A max per C19 outlet; 12A max per C13 outlet |
| Communication Ports | RJ45 Ethernet, Micro-USB Console, USB-A Peripheral |
| Network Protocols Supported | HTTP, HTTPS, SMTP, SNMPv1/v2/v3, Telnet, SSH, FTP, DHCP, NTP |
| Form Factor | 2U Horizontal Rackmount |
| Minimum Required Rack Depth | 16 inches (40.64 cm) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Operating Humidity | 5% to 95% RH, Non-Condensing |
| Compliance Certifications | UL Listed, CSA (Canada), NOM (Mexico), FCC Class A, RoHS, TAA |
