Detailed Specifications

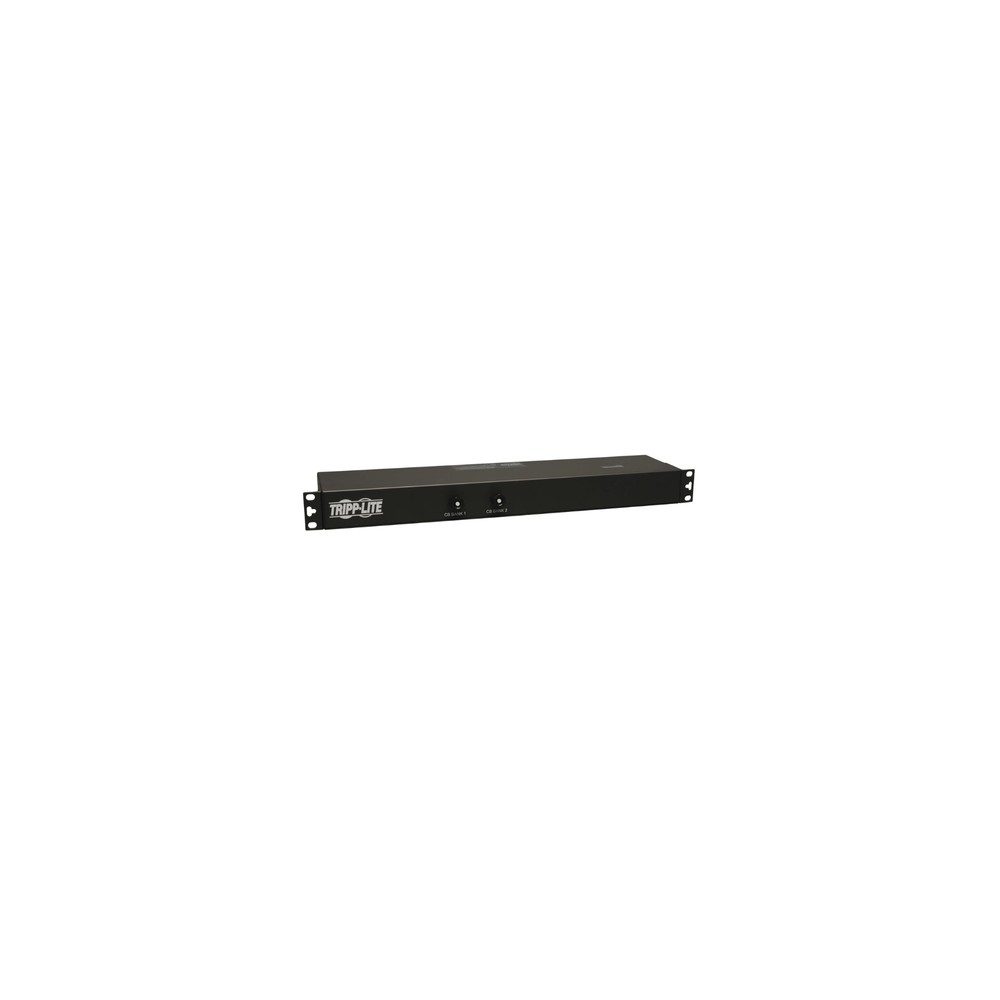

Eaton PDUH30-ISO Basic Rack PDU with Surge Protection
Overview
The Eaton PDUH30-ISO is a single-phase, 120V basic rack power distribution unit with integrated ISOBAR surge suppression designed for IT equipment protection and rack-level power distribution.
It is deployed in telecom rooms, AV racks, small data centers, and branch IT environments where both multi-outlet distribution and surge protection are required from a single 30A L5-30P power source.
The unit provides 12 × NEMA 5-15/20R outlets arranged in two independently protected load banks. It includes a 15 ft power cord with a NEMA L5-30P input plug for connection to UPS systems or facility power circuits.
Unlike switched or metered PDUs, this model is focused on electrical protection + basic distribution, with no remote monitoring or outlet control features.
The ISOBAR design provides multi-mode surge suppression (normal and common mode), helping protect sensitive IT equipment from spikes, noise, and transient disturbances.
Key Features
- ISOBAR surge suppression for IT-grade protection
- 12 outlets split into two protected load banks
- 2.9 kW / 24A capacity for 120V rack systems
- 1U rackmount form factor for standard IT racks
- L5-30P input with 15 ft cord for flexible deployment
Specifications
| Parameter | Value |
|---|
| Brand | Eaton (Tripp Lite series) |
| Part Number | PDUH30-ISO |
| Product Type | Basic Rack PDU with Surge Protection |
| Phase | Single-phase |
| Input Voltage | 120 VAC |
| Power Capacity | 2.9 kW |
| Input Current | 24A (derated) |
| Input Plug | NEMA L5-30P |
| Output Receptacles | 12 × NEMA 5-15/20R |
| Load Banks | 2 independently protected banks |
| Cord Length | 15 ft (4.57 m) |
| Form Factor | 1U rackmount |
| Mounting Orientation | Horizontal (rack) |
| Surge Protection | ISOBAR technology |
| Surge Rating | 3840 joules (per protection design) |
| Circuit Protection | Resettable breakers |
| Frequency | 50/60 Hz |
| Housing Material | Metal |
| Operating Temperature | 0°C to 40°C |
| Compliance | UL 62368-1, UL 1449, RoHS, CSA, FCC Class A |
| Certifications | UL Listed, TAA, NOM |
