Detailed Specifications

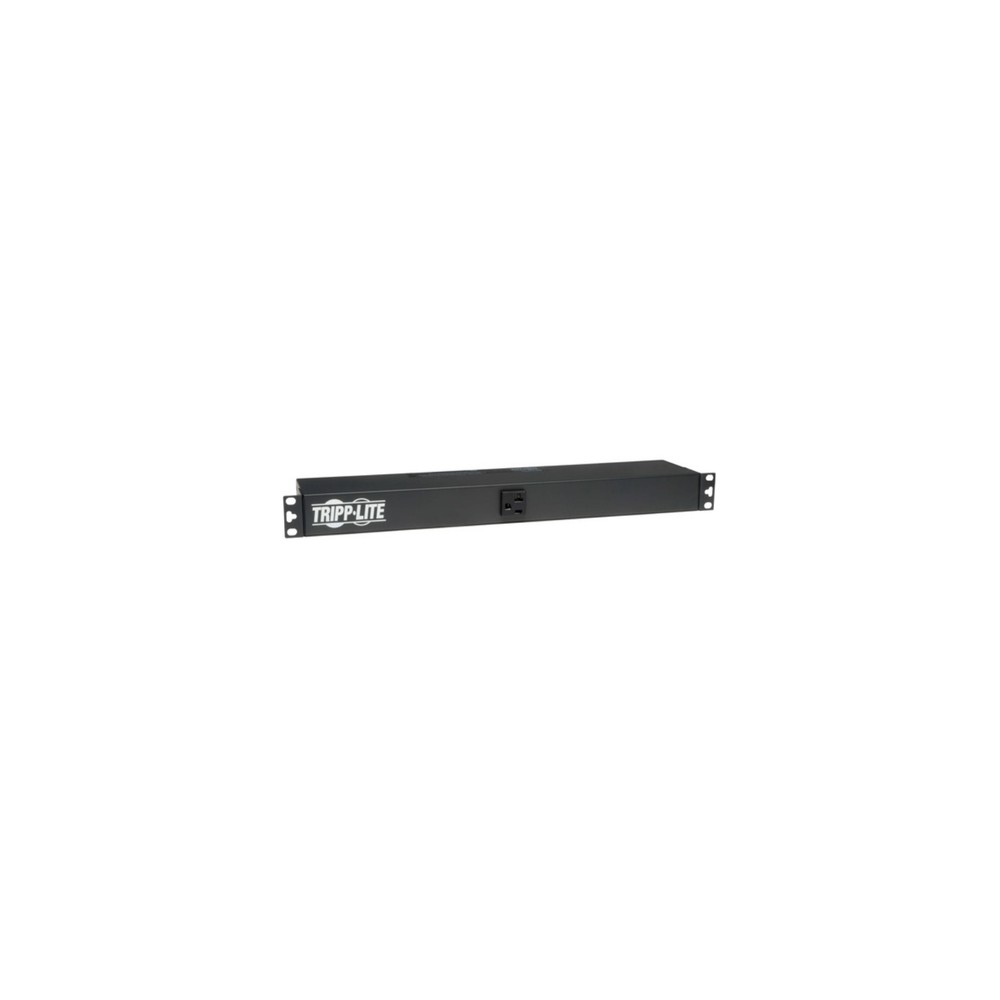

Eaton PDU1220T6 single phase 120V basic rack PDU power
Overview
The Eaton PDU1220T6 is a single-phase, 120V basic rack power distribution unit designed for reliable, non-metered power delivery in IT racks, telecom closets, and edge infrastructure environments.
It is typically deployed in data centers and network cabinets where a simple, high-density outlet strip is required for distributing UPS or utility power to multiple IT devices such as switches, servers, and storage systems.
The unit provides 13 total NEMA 5-15/20R outlets (12 rear, 1 front) and uses a NEMA L5-20P input plug with a 6 ft power cord. It supports a maximum load of 2.4 kW (20A) on 120V circuits.
Its 1U rackmount form factor allows horizontal installation in standard 19-inch racks, and its switchless design helps prevent accidental shutdowns in production environments.
This model does not include monitoring, switching, or surge suppression features and is intended strictly for basic power distribution.
Key Features
- 2.4 kW / 20A basic PDU for rack power distribution
- 13 NEMA 5-15/20R outlets for dense IT connectivity
- 1U rackmount design supports horizontal installation
- Switchless operation prevents accidental power loss
- L5-20P input supports standard 120V facility circuits
Specifications
| Parameter | Value |
|---|
| Brand | Eaton (Tripp Lite series) |
| Part Number | PDU1220T6 |
| Product Type | Basic Rack PDU |
| Phase | Single-phase |
| Input Voltage | 120 VAC |
| Power Capacity | 2.4 kW |
| Input Current | 20 A |
| Input Plug | NEMA L5-20P |
| Output Receptacles | 13 × NEMA 5-15/20R |
| Cord Length | 6 ft (1.83 m) |
| Form Factor | 1U rackmount |
| Mounting | Horizontal / rackmount / wall |
| Circuit Protection | 20A circuit breaker |
| Switch | None (switchless design) |
| Frequency | 50/60 Hz |
| Operating Temperature | 0°C to 40°C |
| Material | Metal housing |
| Compliance | UL Listed, RoHS, CSA, TAA |
| Warranty | 5 years |
