Detailed Specifications

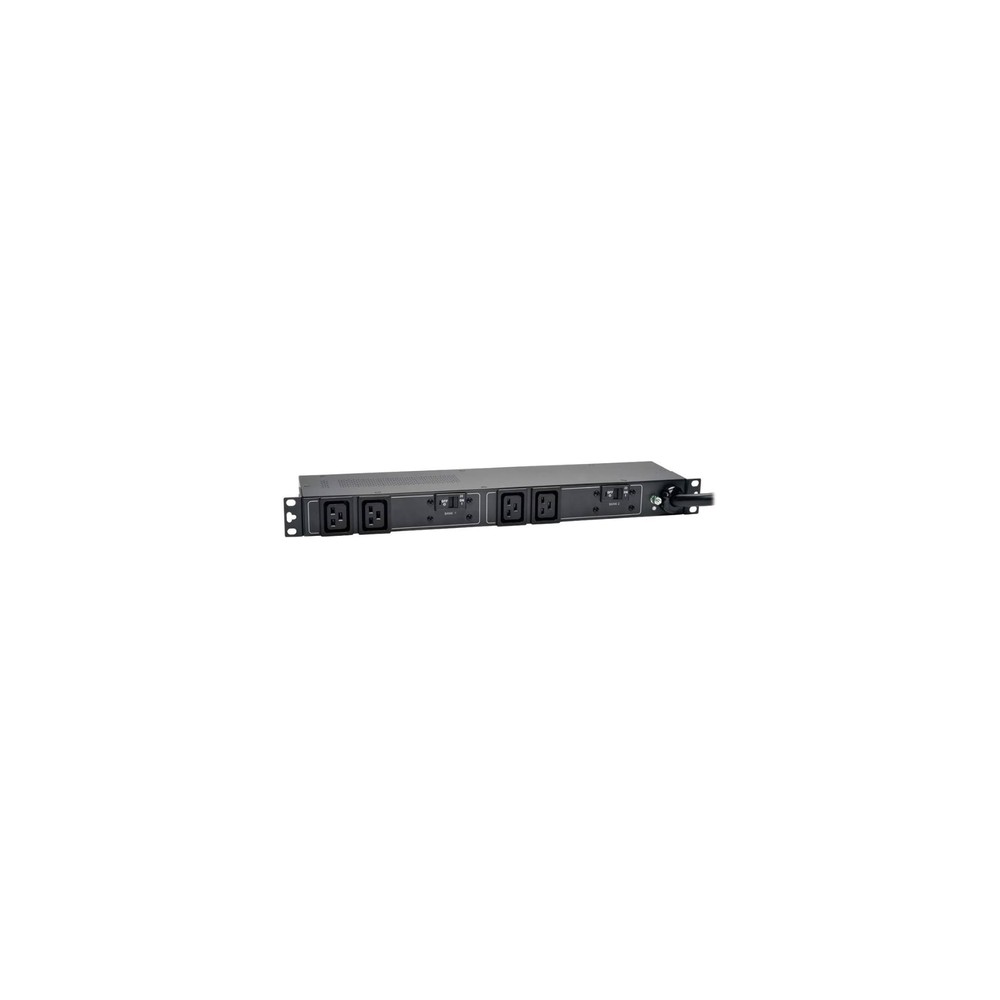

Eaton PDUH30HV19 Basic 30A Single Phase Rack PDU
Overview
The Eaton PDUH30HV19 is a high-voltage, single-phase basic rack PDU designed for reliable power distribution in enterprise IT racks, server rooms, and colocation environments.
It is typically deployed in 208/240V infrastructure where high-density servers, storage arrays, and network equipment require a simple, non-switched, high-capacity power feed.
The unit provides four IEC C19 outlets driven from a NEMA L6-30P input with a 12 ft power cord. It is designed for continuous 24A operation (derated from 30A) to support data center electrical safety requirements.
The PDU is a no-frills distribution device×no switching, no metering×focused purely on stable power delivery and rack-level deployment efficiency.
Not suitable for 120V environments or applications requiring outlet-level switching or monitoring.
Key Features
- 30A class high-voltage rack PDU for IT power distribution
- Four IEC C19 outlets for high-load server equipment
- L6-30P input with 12 ft cord for flexible rack deployment
- Switchless design prevents accidental power shutdown
- Dual circuit breakers protect against overload conditions
Specifications
| Parameter | Value |
|---|
| Brand | Eaton (Tripp Lite series) |
| Part Number | PDUH30HV19 |
| Product Type | Basic Rack PDU |
| Phase | Single-phase |
| Input Voltage | 200-240 VAC |
| Output Voltage | 208/230 VAC |
| Power Capacity | 5.8 kW |
| Input Current | 24A (derated) |
| Maximum Input Current | 30A |
| Input Connection | NEMA L6-30P |
| Output Receptacles | 4 × IEC C19 |
| Form Factor | 1U rackmount |
| Mounting Options | Horizontal or vertical |
| Cord Length | 12 ft (3.6 m) |
| Circuit Protection | Dual 20A breakers |
| Frequency | 50/60 Hz |
| Material | Metal housing |
| Operating Temperature | 0°C to 40°C |
| Compliance | UL 62368-1, RoHS, FCC Class A, TAA |
| Certifications | UL, CSA, NOM |
