Detailed Specifications

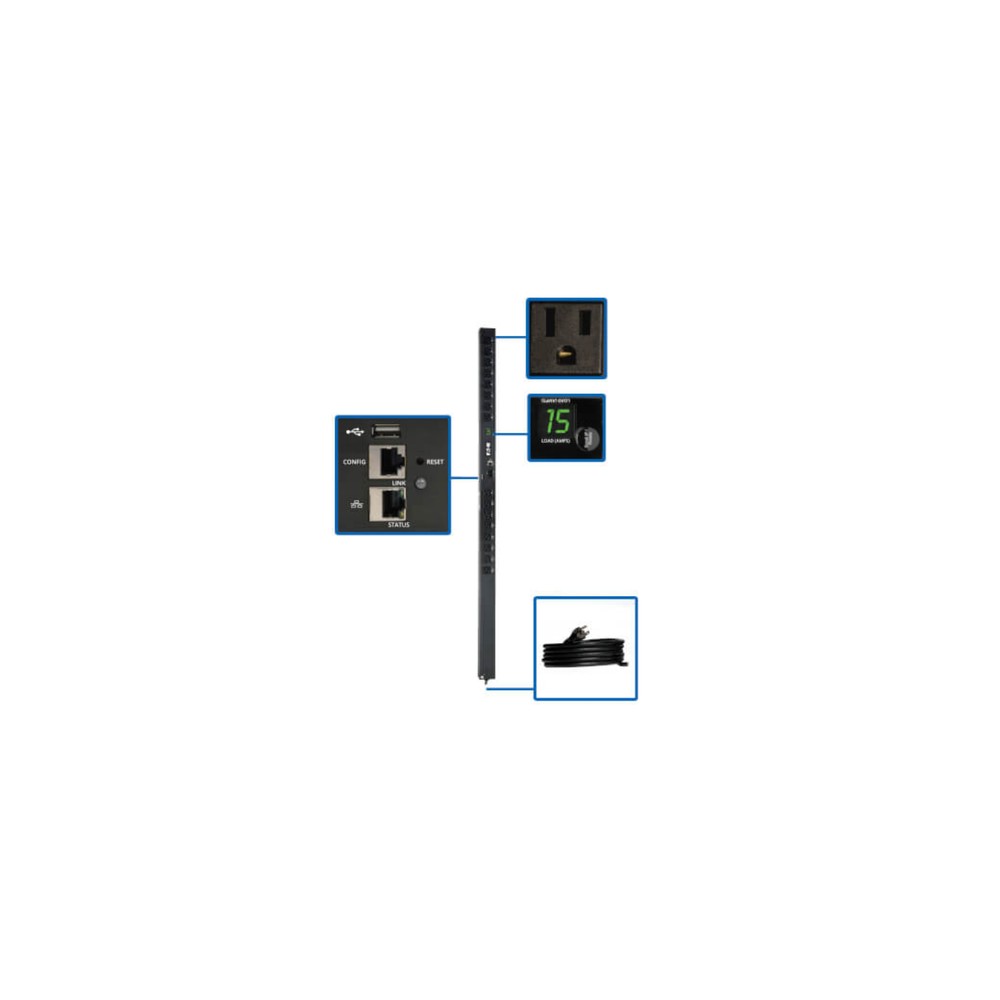

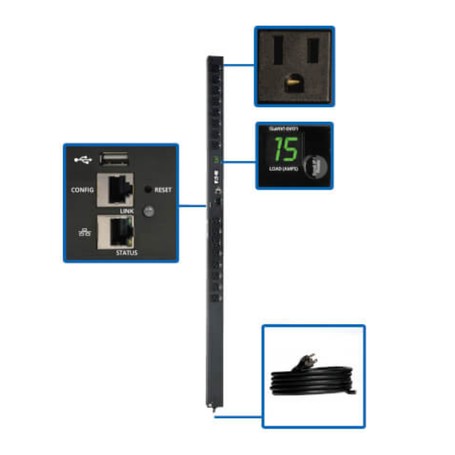

Eaton PDUMV15NETLX single-phase switched rack PDU
Overview
The Eaton PDUMV15NETLX is a single-phase switched rack PDU engineered for remote power distribution, outlet-level control, and power management in enterprise IT and edge infrastructure environments.
It is deployed in data centers, telecom rooms, branch IT installations, industrial edge systems, and network racks where administrators require remote reboot, outlet switching, and monitored power distribution for connected equipment.
The unit provides sixteen NEMA 5-15R outlets with individual outlet switching capability through the integrated LX Platform network interface. Remote access supports SNMP, HTTPS, SSH, and web-based management for centralized infrastructure monitoring and automation.
Its 0U vertical form factor preserves rack space while supporting high-density deployments. Integrated cord retention brackets help reduce accidental disconnects in active rack environments.
The PDU is intended for 120V single-phase infrastructure and is not suitable for high-voltage 208V/230V deployments.
Key Features
- Sixteen switched outlets support remote power control
- LX platform enables SNMP and HTTPS management access
- Vertical 0U mounting preserves usable rack space
- Individual outlet reboot reduces remote troubleshooting time
- Cord retention brackets secure connected equipment cables
Specifications
| Parameter | Value |
|---|
| Brand | Eaton |
| Part Number | PDUMV15NETLX |
| Product Type | Switched Rack PDU |
| PDU Type | Switched |
| Phase | Single-phase |
| Input Voltage | 120 VAC |
| Output Voltage | 100/120/127 VAC |
| Power Capacity | 1.44 kW |
| Input Current | 12A continuous |
| Maximum Input Current | 15A |
| Input Plug | NEMA 5-15P |
| Output Receptacles | 16 × NEMA 5-15R |
| Cord Length | 10 ft (3.05 m) |
| Mounting Form Factor | Vertical 0U rackmount |
| Mounting Orientation | Vertical |
| Network Interface | LX Platform |
| Management Protocols | SNMP, SSH, HTTPS, Telnet |
| Network Port | RJ45 Ethernet |
| Frequency | 50/60 Hz |
| Operating Temperature | 0°C to 50°C |
| Compliance | RoHS, FCC Class A |
| Certifications | UL 60950-1, CSA, NOM |
| TAA Compliant | Yes |
