Detailed Specifications

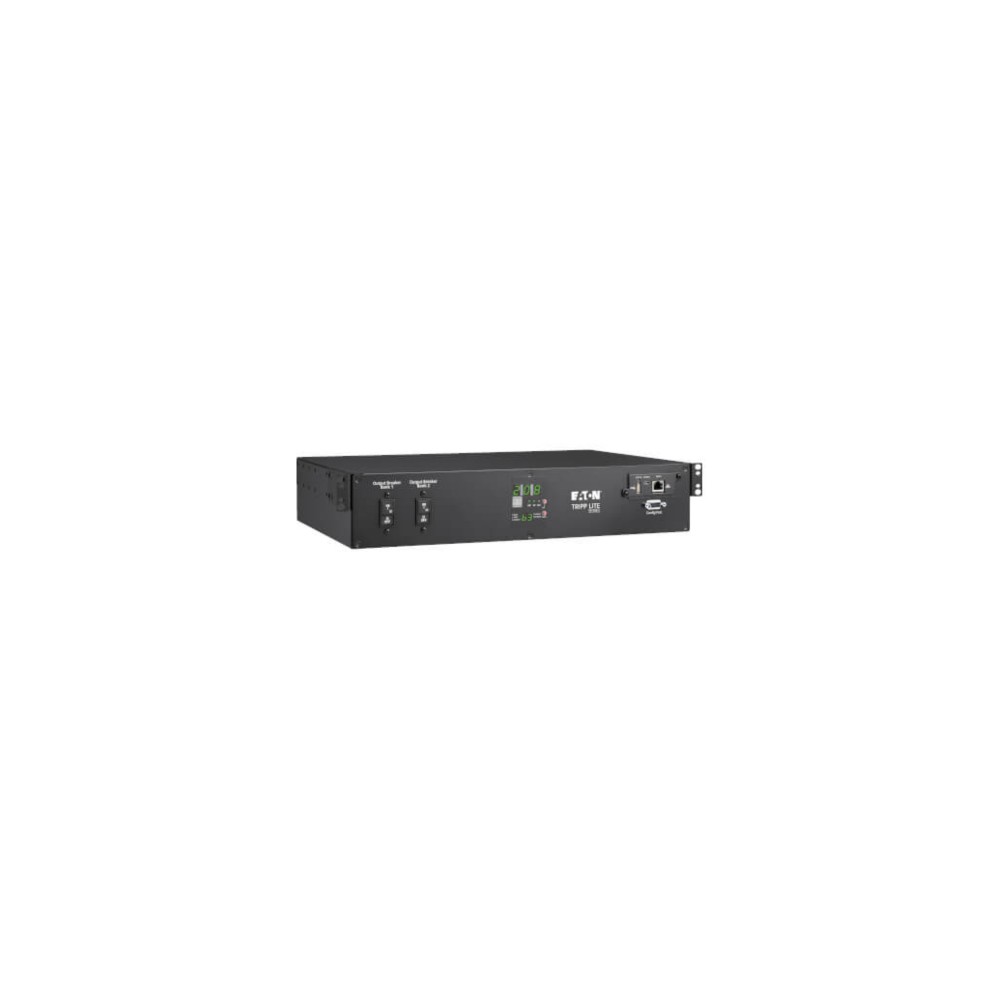

Eaton PDUMNH30HVAT2 ATS Monitored Rack PDU
Overview
The Eaton PDUMNH30HVAT2 is a single-phase automatic transfer switch (ATS) rack PDU designed for high-availability IT environments requiring redundant power input with continuous output delivery during source failure events.
It is commonly deployed in enterprise data centers, telecom infrastructure, edge computing sites, and network racks where single-corded equipment must maintain uptime using dual upstream power sources.
The unit automatically switches between two independent 200-240V AC input feeds and distributes power through IEC C13, IEC C19, and NEMA L6-30R outlets. Integrated network monitoring supports remote management, power visibility, and SNMP-based infrastructure integration.
Its 2U horizontal rack form factor supports standard 19-inch cabinets and includes locking outlet retention sleeves to reduce accidental disconnects in dense rack deployments.
This PDU is intended for redundant high-voltage infrastructure and is not suitable for standard 120V branch environments.
Key Features
- Automatic source transfer maintains continuous power uptime
- Dual L6-30P inputs support redundant AC feed deployment
- 19 mixed IEC and NEMA outlets for rack equipment loads
- Integrated SNMP monitoring enables remote power visibility
- 2U rackmount chassis supports enterprise rack integration
Specifications
| Parameter | Value |
|---|
| Brand | Eaton |
| Part Number | PDUMNH30HVAT2 |
| Product Type | ATS Monitored Rack PDU |
| PDU Type | Automatic Transfer Switch (ATS) |
| Input Voltage | 200-240 VAC |
| Output Voltage | 200-240 VAC |
| Power Capacity | 5.8 kW |
| Input Current | 24A continuous |
| Maximum Input Current | 30A |
| Input Connections | (2) NEMA L6-30P |
| Output Receptacles | (16) IEC C13, (2) IEC C19, (1) NEMA L6-30R |
| Total Outlets | 19 |
| Phase | Single-phase |
| Frequency | 50/60 Hz |
| Cord Length | 10 ft |
| Form Factor | 2U horizontal rackmount |
| Mounting Direction | Horizontal |
| Material | Metal |
| Network Management | SNMP support |
| Operating Temperature | 0°C to 40°C |
| Compliance | RoHS, FCC Class A |
| Certifications | UL 60950-1, NOM |
| TAA Compliant | Yes |
