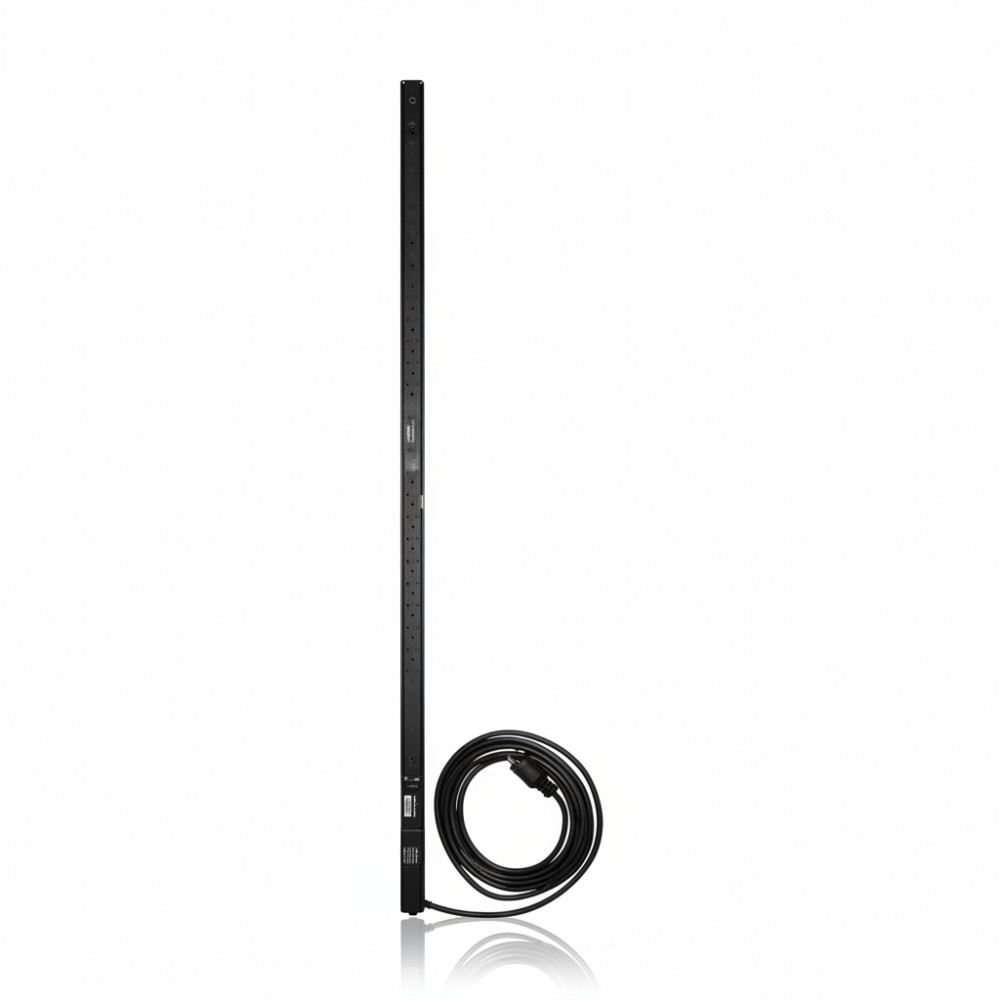

Eaton PDUMV20 - Metered Vertical Rack PDU 28-Outlet 120 V

Overview :

The Eaton PDUMV20 is a metered power distribution unit (PDU) designed to deliver reliable AC power to rack-mounted IT equipment while providing local load measurement. It is deployed by data center engineers, network administrators, and facilities technicians in environments where distribution layer power visibility × without outlet switching × is required for capacity planning and preventing overload events. Its vertical, zero-U form factor conserves rack space and integrates easily into standard 19-inch infrastructure.

From a deployment perspective, this PDU accepts a single-phase 120 V AC input via a NEMA L5-20P plug (adapter included to 5-20P) and distributes power through 28 NEMA 5-15/20R outlets. The total output capacity is 1.92 kW (16 A) with a 15 ft (4.57 m) power cord, making it suitable for typical North American rack power feeds. A front-facing digital meter reports real-time output current in amps for on-site load visibility.

The PDUMV20's vertical profile is intended for rack-adjacent or back-of-rack installation where preserving valuable U-space is essential. Typical deployments include server closets, network racks, telecom equipment frames, and distributed edge nodes where multiple non-critical loads require consolidated AC receptacles. Its aluminum housing supports commercial IT floor environments and complies with standard certification requirements.

Integration with distributed power infrastructure uses standard NEMA connectors and vertical mounting hardware that installs without tools. The toolless button mounts and optional bolt-down brackets support rapid provisioning in structured racks and cabinets. No active outlet switching or network management is included; the unit focuses on local metering of total load to assist field diagnostics and on-site capacity planning.

In a practical deployment, technicians may use the PDUMV20 to feed a mix of servers, switches, and storage devices in a low-density rack while monitoring real-time current to ensure the rack power draw doesn't exceed the feed circuit's limits. The included plug adapter increases flexibility when connecting to either L5-20 receptacles or standard 5-20 wall outlets.

This unit should not be used where switched outlets, per-outlet power monitoring, or network-managed PDU functions are required. It also is not suitable for deployments needing 230 V service or redundancy without separate PDUs and upstream power infrastructure.

Key Features

• 0U vertical rack PDU with 28 outlets, no U consumption
• NEMA L5-20P input with 5-20P adapter included
• Front digital meter shows output current in amps
• 28 NEMA 5-15/20R receptacles for loads
• 15 ft flexible power cord for rack positioning
