Detailed Specifications

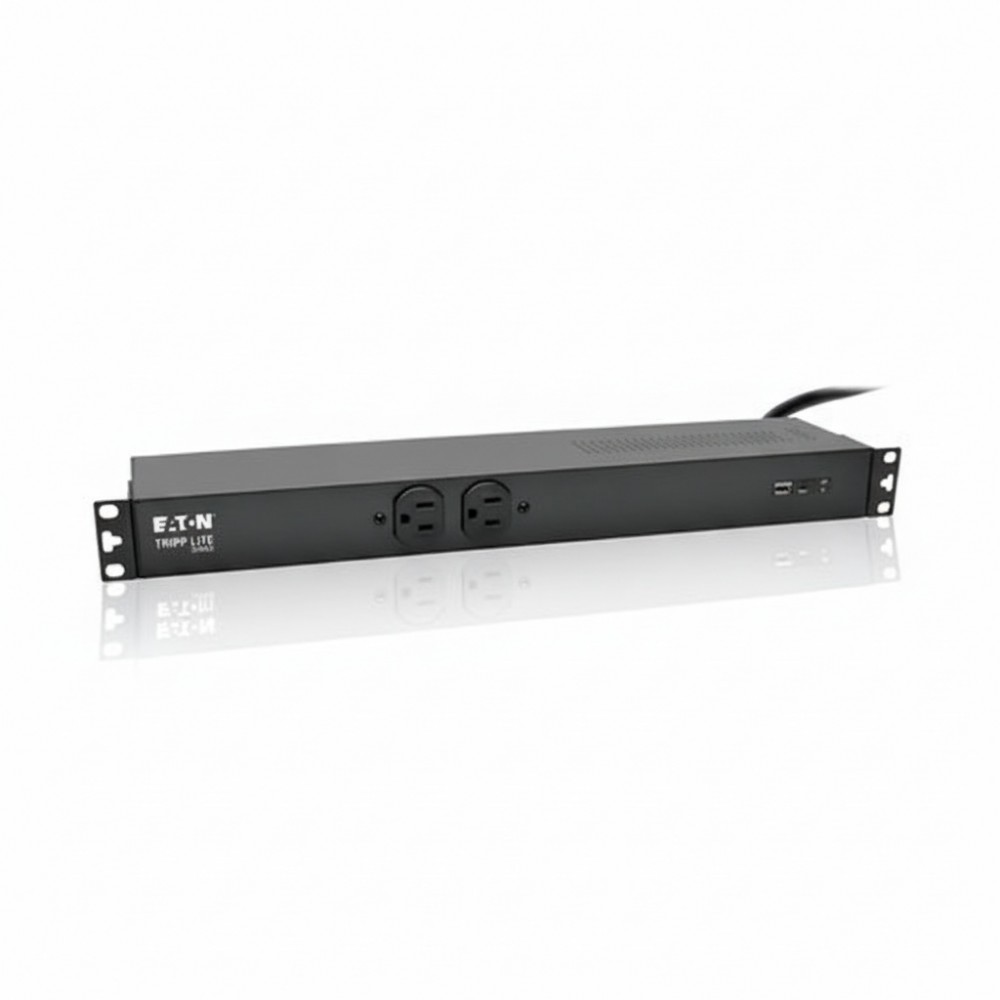

Eaton PDUH20-ISO 1U Metered Rack Power Distribution Unit
Overview
The Eaton PDUH20-ISO is a 1U single-phase rack Power Distribution Unit designed for IT racks, network closets, and AV/edge infrastructure requiring monitored AC power distribution with integrated surge protection. It delivers 120V power to multiple connected devices while providing real-time load visibility and ISOBAR-grade transient voltage protection.
It is commonly deployed in data centers, telecom racks, surveillance systems, and enterprise network cabinets where reliable 20A-class power distribution and surge suppression are required in a compact horizontal rack format.
The unit integrates a local digital load meter that displays output current in amps, helping prevent circuit overload conditions during high-density equipment deployment.
With 14 total outlets (a mix of NEMA 5-15R and 5-15/20R), it supports mixed IT loads such as switches, servers, routers, and edge appliances.
The PDUH20-ISO is intended for single-phase 120V environments only and is not suitable for 208V/230V data center power architectures or switched outlet control requirements.
Key Features
- 1U rack PDU delivers 120V single-phase power distribution
- Integrated ISOBAR surge protection (3840 joules rating)
- Local digital ammeter enables real-time load monitoring
- 14 mixed NEMA outlets for IT and network equipment loads
- 15 ft input cord supports flexible rack placement
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | PDUH20-ISO |
| Product Type | Metered Rack Power Distribution Unit |
| Input Voltage | 100-127V AC |
| Phase | Single-phase |
| Max Current | 16A (derated) |
| Power Capacity | 1.92 kW |
| Form Factor | 1U horizontal rackmount |
| Input Plug Type | NEMA L5-20P (with adapter) |
| Outlets | 14 total (12 × 5-20R, 2 × 5-15R) |
| Surge Protection | ISOBAR, 3840 Joules |
| Monitoring | Local digital current meter (amps) |
| Cord Length | 15 ft |
| Operating Temp | 0-40°C |
| Mounting | 1U rack / under-counter / wall |
