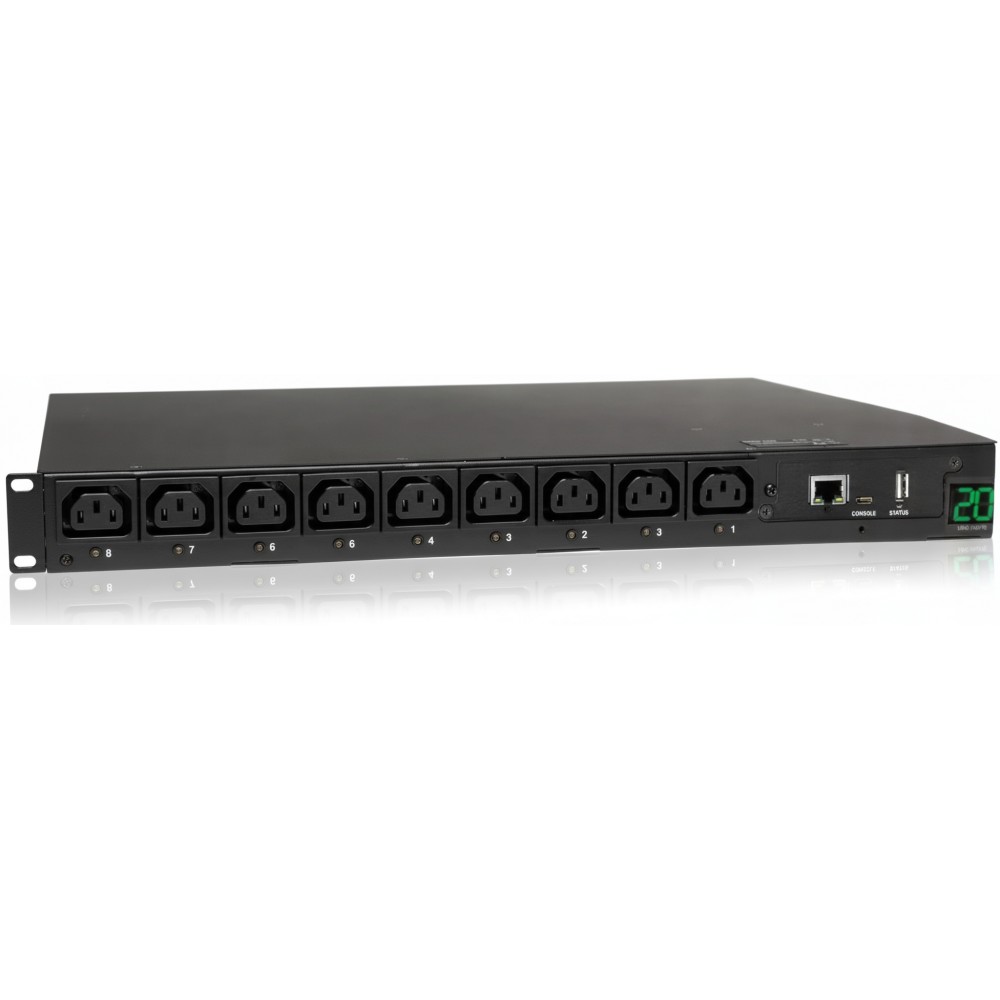

Eaton PDUMH20HVNET Switched Rack PDU 208/230V 16A
Overview
The Eaton PDUMH20HVNET is a switched rack power distribution unit (PDU) engineered for remote power control and monitoring of IT loads in rack-mount installations. It is deployed by data center engineers, network infrastructure teams, and systems administrators to control, sequence, and monitor power to servers, networking gear, and edge computing hardware over IP in horizontal rack environments. The unit integrates power distribution with network-based management capabilities to improve operational uptime and reduce physical intervention.
This PDU operates on single-phase AC in a 208-240 V input range with a 16 A continuous rating (agency-derated), supporting an approximate 3.68 kW output capacity at 230 V. It provides eight switched IEC-320 C13 outlets capable of individual outlet control, along with an IEC-320 C20 inlet and NEMA L6-20P adapter for flexible rack power connections. A local digital display supplies on-site load current in amps, aiding quick visual assessment while network management provides remote oversight.
Designed for 1U horizontal rack mounting, PDUMH20HVNET fits standard 19-inch server racks and can be installed in data halls, branch data closets, or network edge racks. Horizontal orientation allows integration with top or bottom rack power feeds, and included rack mounting hardware supports secure attachment to 2-post or 4-post racks.
The PDU integrates into common IP-managed infrastructure ecosystems using Eaton's LX platform via its built-in network interface. Management supports remote control over HTTP/HTTPS, SNMP, Telnet, SSH, and associated protocols for outlet switching, load monitoring, and event alerts. RJ45 and USB configuration ports are provided for initial setup and auxiliary control connections.
A practical deployment example includes using PDUMH20HVNET to sequence power to multiple rack devices during maintenance windows, preventing simultaneous inrush that could overload circuits. Network control enables technicians to cycle power on unresponsive hardware remotely, significantly reducing truck rolls or site visits. This approach is vital in distributed facilities or colocation racks where on-site access is costly or time-consuming.
This PDU should not be selected for environments that require per-outlet metering without switching, as load reporting is aggregated or per bank rather than individual outlet power metering. For deployments requiring deep power analytics, a dedicated metered or metered-switched PDU with per-outlet measurement should be evaluated.
Key Features
Eight switched IEC-320 C13 outlets for remote power control
208-240 V input with 16 A continuous (3.68 kW @230 V) capacity
Built-in LX platform network interface for IP management
IEC-320 C20 inlet with NEMA L6-20P adapter included
Rack-mountable 1U form factor for horizontal installation
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | PDUMH20HVNET |
| Product Type | Switched Network Rack PDU |
| Form Factor | 1U Horizontal Rackmount |
| Input Voltage | 208-240 V AC |
| Frequency | 50/60 Hz |
| Input Current | 16 A (agency-derated) |
| Output Capacity | 3.68 kW (230 V) / 3.33 kW (208 V) |
| Input Connector | IEC-320 C20 / NEMA L6-20P adapter |
| Output Receptacles | 8 × IEC-320 C13 (switched) |
| Load Monitoring | Digital ammeter (total) |
| Management Interface | Ethernet (RJ45), USB config |
| Protocols | HTTP/HTTPS, SNMP, SSH, Telnet |
| Cable Length | ~2.6 m (8.5 ft) |
| Mounting Hardware | Included (2-post/4-post racks) |
| Housing | Metal enclosure |
| Operating Temp. | 0 - 40 °C (32 - 104 °F) |
| Humidity | 5 - 95 % non-condensing |
| Certifications | RoHS compliant |
| Dimensions (H × W × D) | ~1.72 × 17.33 × 14.77 in |
| Weight | ~9 lb |
