Detailed Specifications

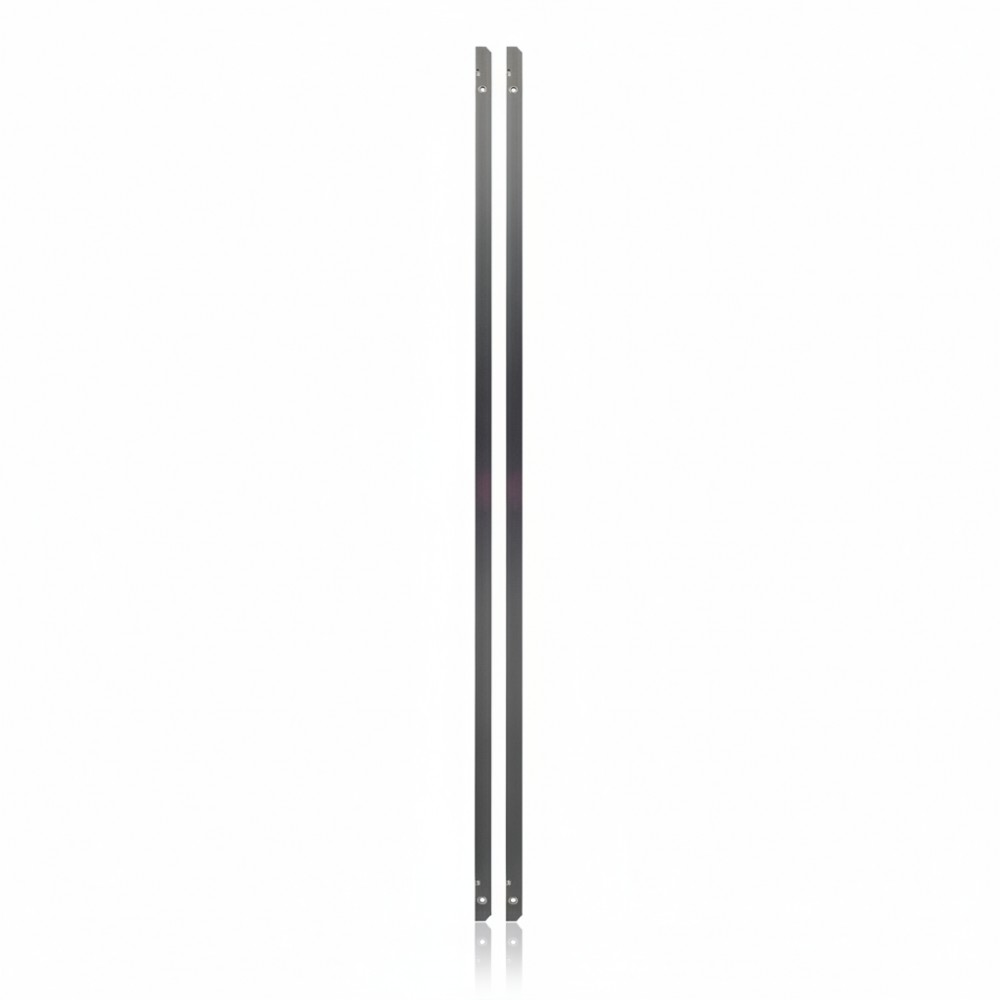

APC ACDC1005 - Baying Kit for 900 mm-Deep NetShelter
Overview
The APC ACDC1005 is a baying kit designed to connect two NetShelter containment units that are 900 mm deep. Specifically, it supports PDU-to-PDU or UPS-to-PDU configurations. This solves the layout problem in data centers where multiple 900 mm-deep racks or power units need to be seamlessly contained side by side without gaps in the airflow containment.It's used to build or extend hot-aisle or cold-aisle containment rows, ensuring a tight seal and preventing leakage where two 900 mm-deep enclosures meet. Appropriate for modular designs and retrofits, it helps maintain environmental control and improves cooling efficiency in high-density deployments.
Key Features
Designed for pairing two 900 mm-deep NetShelter racks or power modules.
Supports PDU-to-PDU or UPS-to-PDU baying, ideal for power-dense row setups.
Lightweight and easy to install (approx. 2.73 kg), reduces complexity in containment planning.
Helps preserve aisle containment integrity and minimize air mixing in containment deployments.
Baying Kit
RoHS-compliant material, suited for standard data center environments.
Technical Specifications
| Specification | Detail |
|---|
| Brand | APC (Schneider Electric) |
| Part Number | ACDC1005 |
| Product Type | Baying Kit / Containment Accessory |
| Key Spec × Supported Depth | 900 mm (both sides) |
| Key Spec × Use Case | PDU / UPS to PDU/UPS baying |
| Key Spec × Weight | ~2.73 kg |
| Management | Passive hardware (no electronics) |
| Power Requirements | None |
| Dimensions | Height: ~1921 mm; Width: ~35 mm; Depth: ~25 mm |
| Operating Environment | Data center / rack containment |
| Warranty | 1-year limited warranty |
