Detailed Specifications

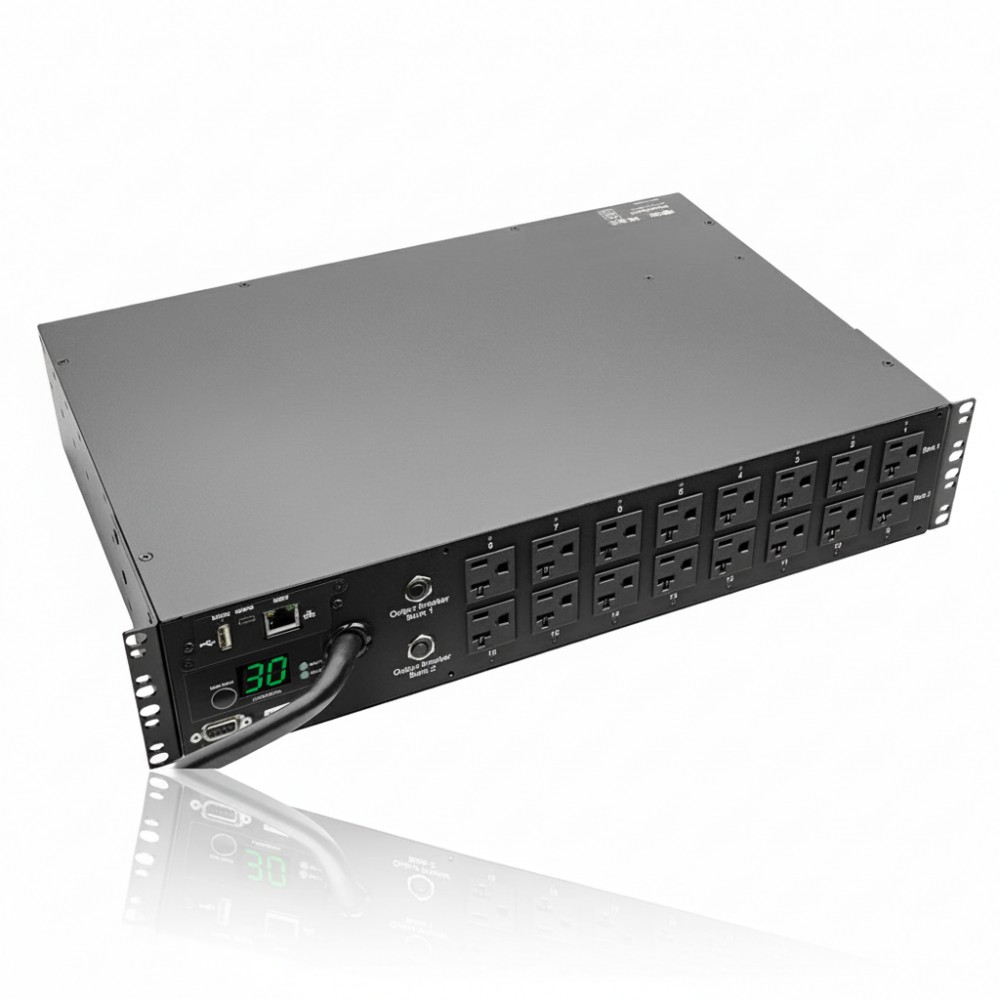

Eaton Tripp Lite PDUMH30NET - 2.9kW Switched PDU with LX Interface
Overview :
The Eaton Tripp Lite PDUMH30NET is a 2.9kW single-phase switched Power Distribution Unit (PDU) designed for IT environments requiring reliable power distribution and remote management. It features 16 individually controllable NEMA 5-15/20R outlets, allowing for remote power on, off, reboot, or lockout of connected equipment. The built-in LX Platform interface provides secure web, SNMP, telnet, and SSH access for monitoring and control. A digital ammeter displays real-time load data, helping prevent overloads. This PDU is suitable for deployment in data centers, server rooms, and edge computing installations where space and power management are critical.
Key Features :
16 individually controllable NEMA 5-15/20R outlets
Built-in LX Platform interface with web, SNMP, telnet, and SSH access
Digital ammeter for real-time load monitoring
10 ft. (3.05 m) power cord with NEMA L5-30P plug
2U rackmount form factor with included mounting hardware
Specifications :
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | PDUMH30NET |
| Product Type | Switched PDU |
| Form Factor | 2U Rackmount |
| Input Voltage | 120V AC |
| Input Current | 24A (Agency de-rated to 24A continuous) |
| Maximum Output Capacity | 2.9kW |
| Outlets | 16 x NEMA 5-15/20R |
| Input Connection | NEMA L5-30P |
| Cord Length | 10 ft. (3.05 m) |
| Mounting Orientation | Horizontal |
| Material | Metal |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Weight | 13.8 lbs (6.25 kg) |
| Dimensions (H x W x D) | 3.5 in. x 17.5 in. x 12.5 in. (89 mm x 445 mm x 318 mm) |
