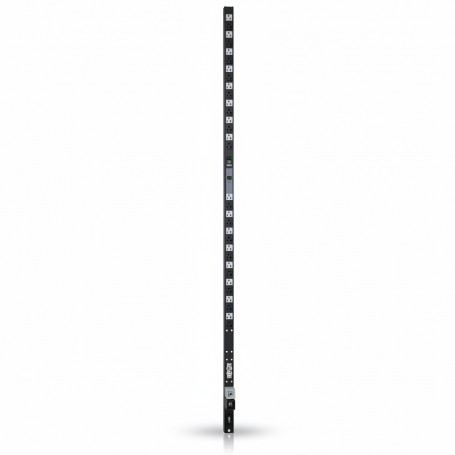

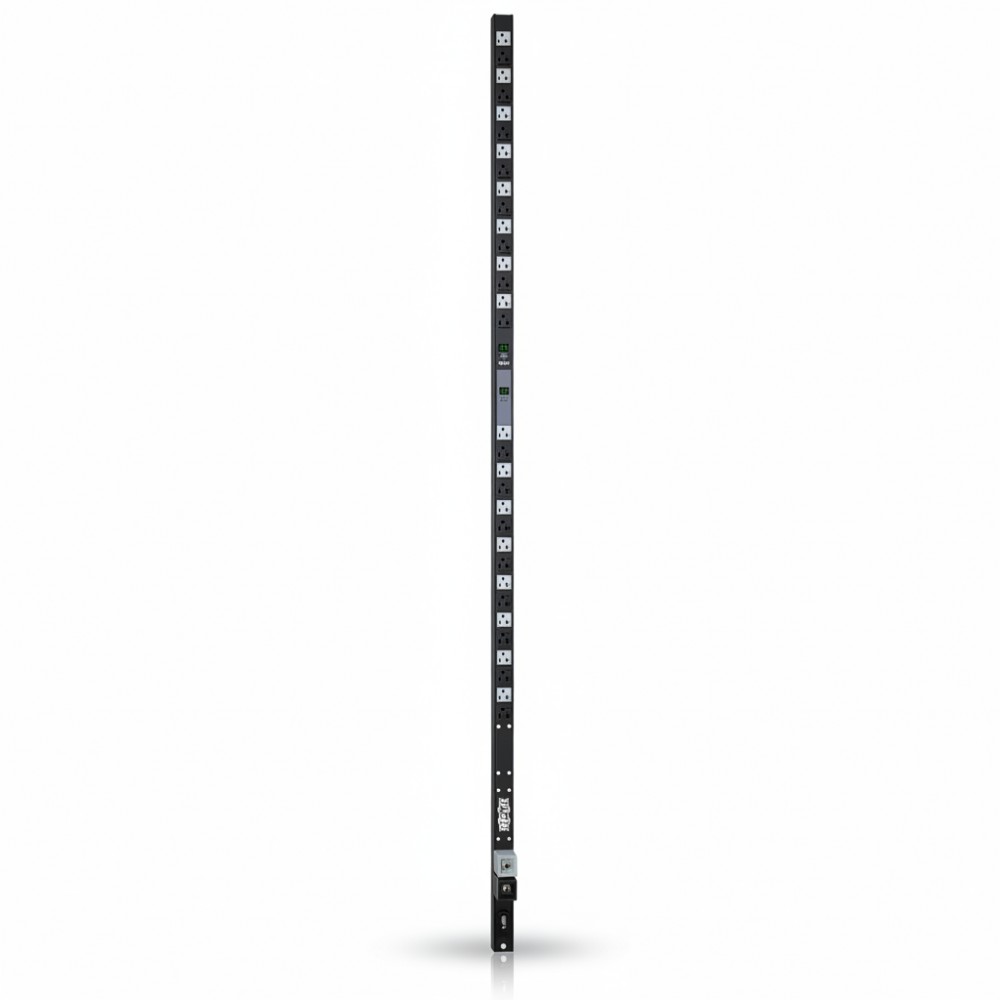

Eaton PDUMV40 Dual Circuit Metered PDU 120V 40A
Overview :
The Eaton PDUMV40 is a 0U vertical rack power distribution unit (PDU) designed for high-outlet-density environments requiring dual-circuit power distribution. It is deployed by data center engineers and network administrators to distribute 120V single-phase power across multiple devices while maintaining circuit-level load visibility. The unit is commonly used in racks supporting equipment with redundant power supplies or high outlet count requirements.
The PDU operates using two independent 120V input circuits, each rated at 20A (derated for continuous load), providing a combined capacity of up to 4.8 kW. Each circuit feeds 16 NEMA 5-15/20R outlets, delivering a total of 32 outlets in a single vertical chassis. Dual digital current meters provide real-time load monitoring per circuit, enabling technicians to balance loads and avoid overload conditions.
The PDUMV40 is designed for 0U vertical mounting, installing along the side of standard 19-inch racks without consuming rack space. This makes it suitable for high-density deployments in data centers, network closets, and telecom environments where rack U-space must be preserved for compute and switching hardware.
Integration aligns with standard North American 120V power ecosystems using dual NEMA L5-20P inputs, with included adapters for compatibility with 5-20R receptacles. The unit supports deployment behind UPS systems or generator-backed circuits, as its switchless design allows direct pass-through of modified sine wave or generator power without interruption risk.
In a practical deployment, the PDUMV40 is used in a rack with dual-corded servers, where each server power supply connects to separate PDU circuits. This allows distribution across A/B feeds while maintaining circuit-level monitoring to ensure balanced loading across both inputs.
This device is not suitable for environments requiring outlet-level switching or remote management, as it provides only local metering. It is also not intended for 208V/230V deployments or three-phase power environments, and should not be used where per-outlet control or network integration is required.
Key Features
Dual 20A circuits with independent load monitoring
32 NEMA 5-15/20R outlets for high-density racks
0U vertical mounting preserves rack space
Switchless design prevents accidental shutdowns
Dual input cords for A/B power distribution
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | PDUMV40 |
| Product Type | Metered Rack PDU |
| Input Voltage | 120V AC |
| Input Current | 2 × 20A circuits (derated for continuous load) |
| Power Capacity | Up to 4.8 kW total |
| Phase | Single-phase |
| Frequency | 50/60 Hz |
| Input Connections | 2 × NEMA L5-20P (with 5-20P adapters) |
| Output Receptacles | 32 × NEMA 5-15/20R |
| Circuit Design | Dual independent load banks |
| Metering | Dual digital current meters (per circuit) |
| Mounting Type | 0U vertical rackmount |
| Dimensions (H x W x D) | 71.3 x 3 x 1.5 in |
| Weight | ~8.2 lb |
| Cord Length | 10 ft (per cord) |
| Protection | Overload protection |
| Compliance | UL 60950-1, RoHS |
