Detailed Specifications
Eaton PDUMH30HVATNET - Switched ATS Network-Managed Rack PDU
Overview
The Eaton PDUMH30HVATNET is a vertical network-managed power distribution unit with automatic transfer switch (ATS) functionality designed for IT rack environments that require controlled and resilient AC distribution over 208 V-230 V single-phase feeds. It is deployed by data center engineers, facilities/planning teams, and network architects to distribute power with remote outlet control, load monitoring, and automatic redundancy between two AC inputs, reducing service interruptions due to a failed feed. ATS capability seamlessly switches between two live sources (primary/secondary) to sustain power continuity.
This PDU supports a 24 A continuous (agency-derated from 30 A) input on each of two NEMA L6-30P inlet circuits, providing up to ~5.8 kW of total output power at 208 V-230 V. It provides 19 switched IEC outlets (typically C13 and C19 mix) for rack gear, with individual control via the embedded Eaton LX network interface (SNMP/Web/SSH/Telnet). Local digital metering shows real-time current draw to help balance loads and prevent overloads.

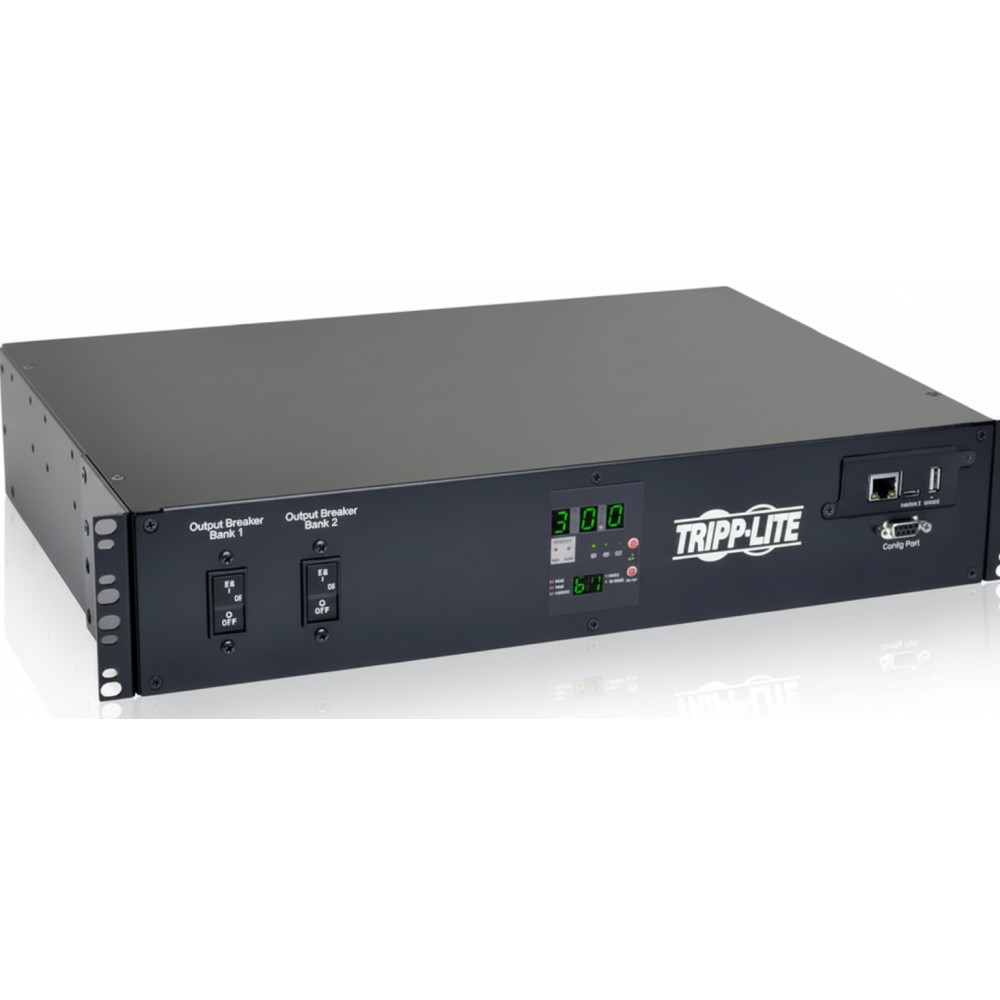

Physically, the PDUMH30HVATNET is a 2U horizontal rack-mount unit with included mounting brackets and detachable 10 ft cord. Its ATS design makes it suitable for racks with dual power feeds from separate UPS or mains panels, enabling load resilience in environments where power availability and uptime are critical.
Integration includes network connectivity for remote monitoring and control via Eaton's embedded management platform plus local display of amperage. The ATS feature automatically shifts load between the two feed sources based on availability without manual intervention, enabling integration with redundant power infrastructures. Ensure upstream circuits and receptacles are rated appropriately for dual 30 A service and confirm outlet mix matches device power cords.
A practical deployment is in a mid-to-large rack in a data center, colocation cage, or critical fabric rack where simultaneous power feeds from separate UPS or generators exist and remote outlet control/reboot functions are needed. It is not suited where 120 V distribution is necessary or where a simpler managed/single-feed PDU suffices, nor should it be used outside supported voltage ranges or without compatible upstream dual feeds.
Key Features
- Dual NEMA L6-30P 208/230 V ATS inputs for automatic source switching
- 19 individually switched IEC outlets (mixed C13/C19)
- Embedded network interface (SNMP/Web/SSH/Telnet) for remote control
- Local digital current meter for capacity planning
- 2U horizontal rack form factor with 10 ft detachable cord
Specifications
| Specification | Value |
|---|
| Brand | Eaton |
| Part Number | PDUMH30HVATNET |
| Product Type | Switched ATS Network-Managed Rack PDU |
| Input Voltage | 208 V-230 V AC |
| Input Phase | Single-phase |
| Maximum Input Current | 24 A continuous (30 A max) |
| Input Connectors | 2 × NEMA L6-30P |
| Output Capacity | ~5.8 kW @ 230 V |
| Output Receptacles | 19 × IEC-320 (C13/C19 mix) |
| ATS Function | Automatic transfer between dual inputs |
| Network Interface | Embedded LX platform (SNMP/Web/SSH/Telnet) |
| Local Metering | Digital current display |
| Form Factor | 2U horizontal |
| Cord Length | 10 ft (3.05 m), detachable |
| Mounting | 2U rack with brackets |
| Operating Temp | 32 °F to 104 °F (0 °C to 40 °C) |
| Certifications | UL 60950-1, FCC Class A, RoHS, NOM |
| Weight | ~13.7 lb (~6.2 kg) |
| Dimensions (H×W×D) | ~3.5″ × 17.5″ × 12.5″ |
