Detailed Specifications

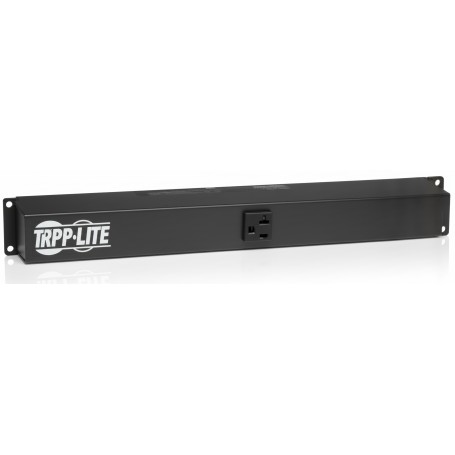

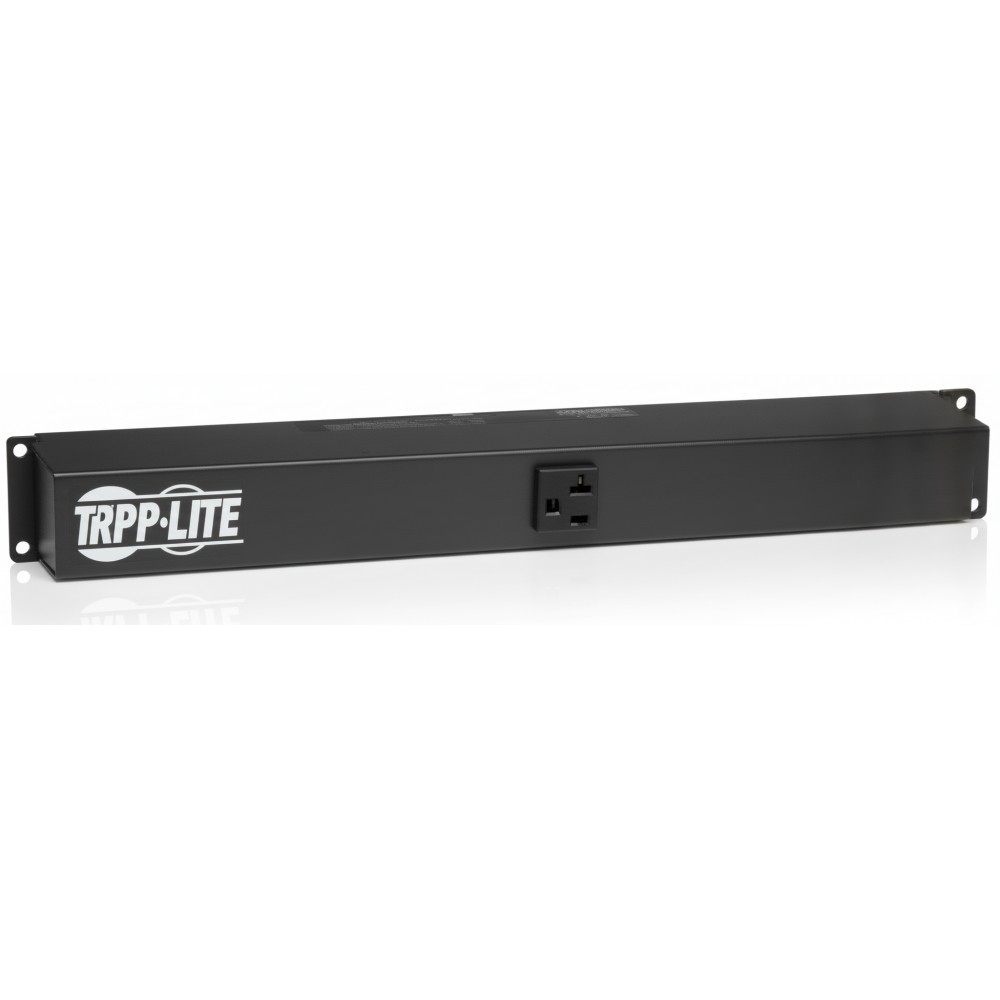

Eaton Tripp Lite PDU1226 - 2.4kW 120V Single-Phase Basic PDU
Overview :
The Eaton Tripp Lite PDU1226 is a 2.4kW, 120V single-phase basic power distribution unit (PDU) designed for high-density IT environments. It provides reliable AC power distribution from a utility outlet, generator, or UPS system to multiple devices. The PDU features 13 NEMA 5-15/20R outlets×12 rear-facing and 1 front-facing×allowing flexible equipment placement and easy access. Its 6-foot power cord with a NEMA 5-20P plug ensures compatibility with standard power sources. The 1U rack-mountable design saves valuable space in server racks, making it ideal for networking, telecom, and audio/video applications. The PDU1226 is built with a metal housing for durability and includes a 20A circuit breaker for overload protection. It is UL Listed, CSA Certified, and NOM approved, ensuring compliance with safety standards. This PDU is suitable for environments where a straightforward, reliable power distribution solution is required without advanced monitoring or switching features.
Key Features :
13 NEMA 5-15/20R outlets (12 rear, 1 front)
6 ft (1.83 m) cord with NEMA 5-20P input plug
Switchless design to prevent accidental shutdowns
1U rack-mountable for space-saving installations
Ideal for high-density IT environments
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | PDU1226 |
| Product Type | Basic PDU |
| Input Voltage | 120V AC |
| Output Voltage | 120V AC |
| Power Capacity | 2.4kW |
| Maximum Current | 20A |
| Input Plug Type | NEMA 5-20P |
| Output Receptacles | 13 x NEMA 5-15/20R |
| Cord Length | 6 ft (1.83 m) |
| Rack Mountable | Yes, 1U |
| Mounting Orientation | Horizontal/Vertical |
| Housing Material | Metal |
| Overload Protection | Yes, circuit breaker |
| Weight | 5.2 lbs (2.36 kg) |
| Dimensions (W x D x H) | 17.5" x 4.5" x 1.8" |
